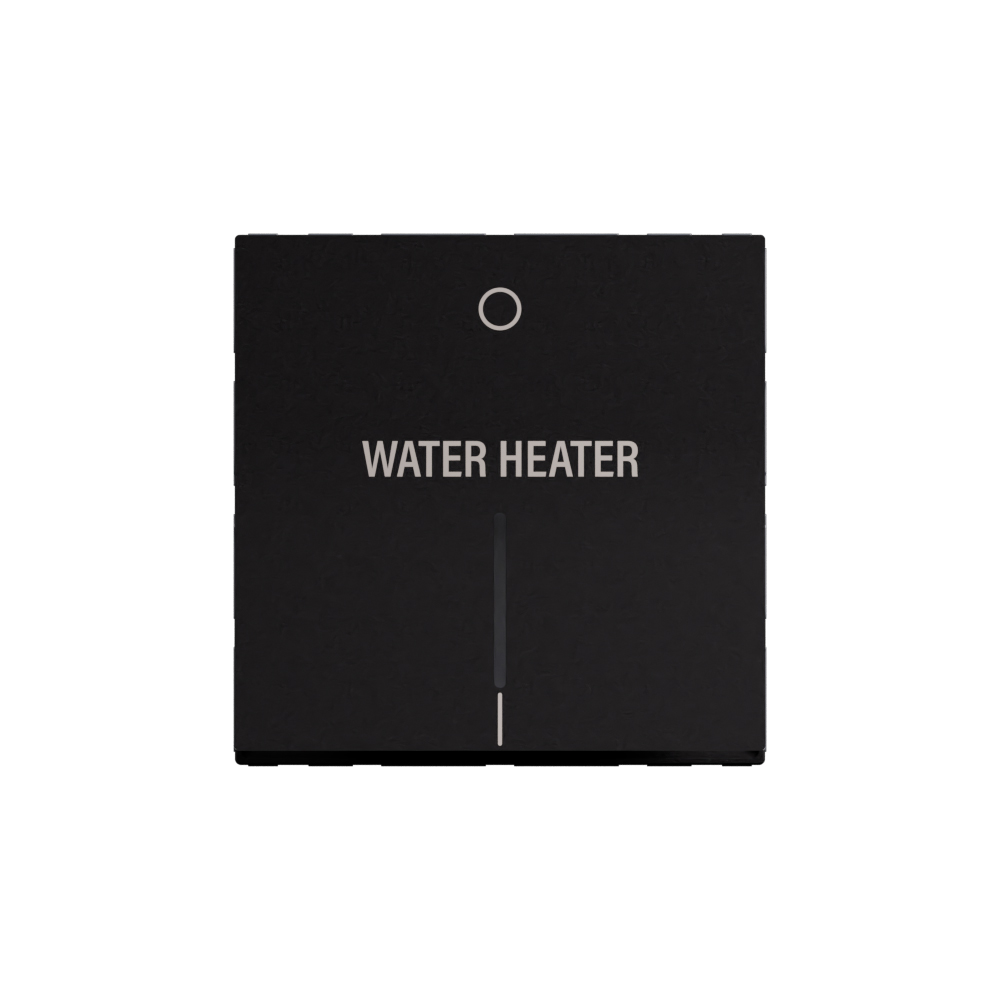

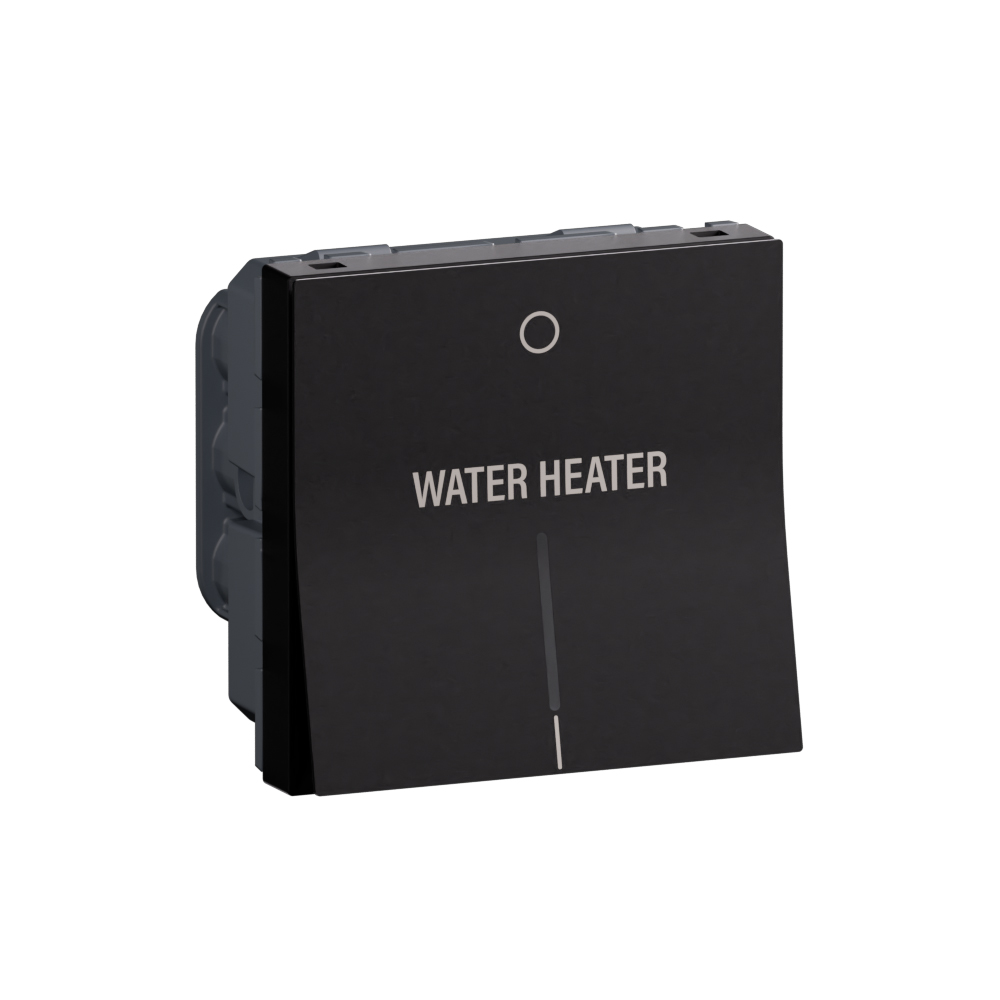

Arteor Advance - 2m 1w 20AX dp water heater switch matt black - Red power indicator - Earth terminal - Screw terminals - Indoor IP20

Arteor Advance Legrand

Arteor Advance - 2m 1w 20AX dp water heater switch matt black - Red power indicator - Earth terminal - Screw terminals - Indoor IP20

REF. AC20105MB EAN. 3414973146905
Designed to safely turn the water heater on and off, this 2M 1-way 20AX DP switch ensures reliable 250V AC isolation. Its matt black finish with red power indicator and earth terminal offers clear status feedback and durable construction.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Designed to safely turn the water heater on and off, this 2M 1-way 20AX DP switch ensures reliable 250V AC isolation. Its matt black finish with red power indicator and earth terminal offers clear status feedback and durable construction.

Product characteristics
  • Two-module, one-way 20AX double-pole water heater switch for safe on/off isolation at 250V AC, 50-60Hz
  • Matt black thermoplastic front with smooth, non-reflective finish for a discreet, contemporary appearance
  • Integrated red power indicator for clear heater status visibility and safer operation
  • Screw-type terminals for secure connection of 0.75mm² to 1.5mm² flexible or rigid conductors, with terminal marking indication
  • Modular 2M rocker switch for module frame mounting, IP20 indoor use, operating temperature -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 60 mm
Built-in depth 43.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
