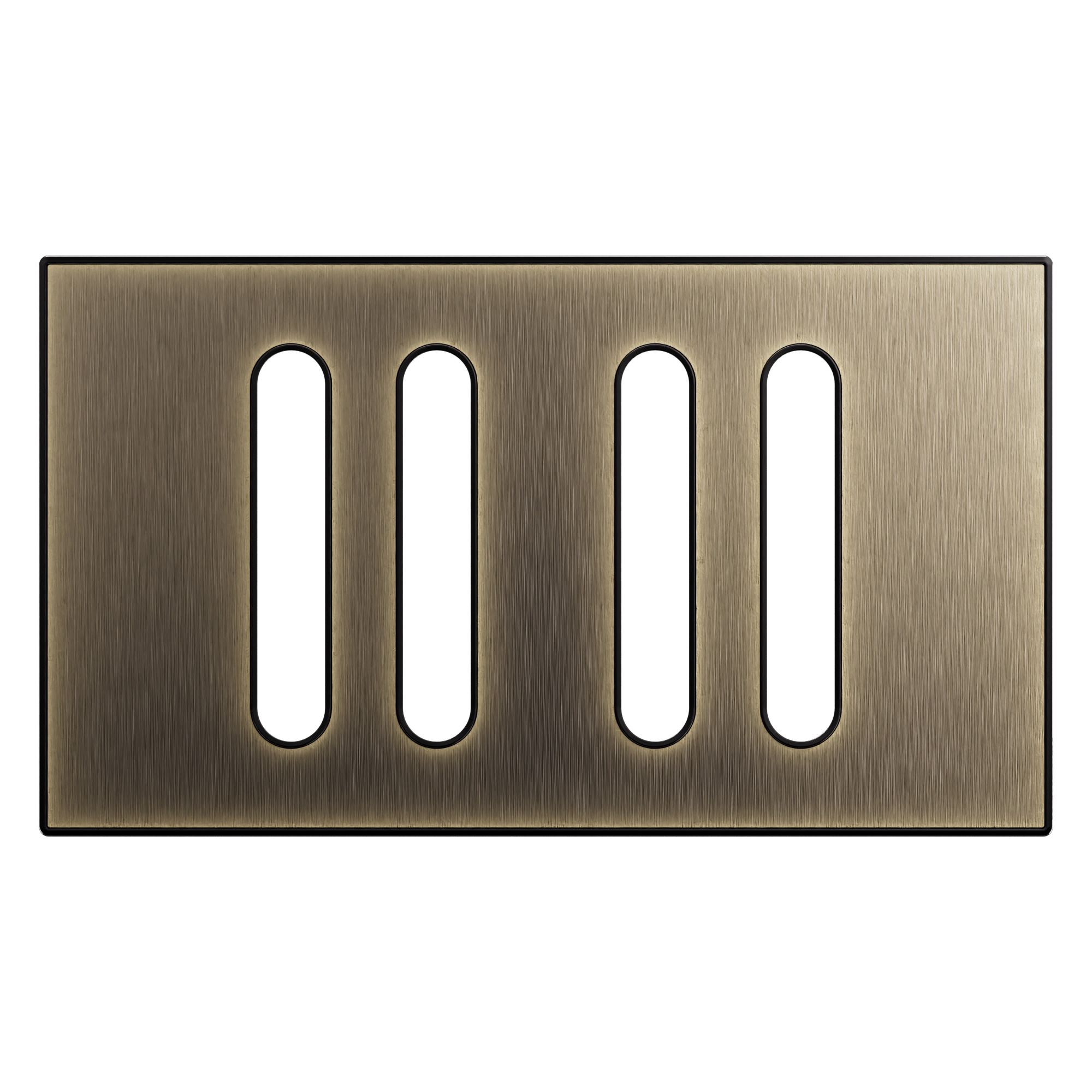

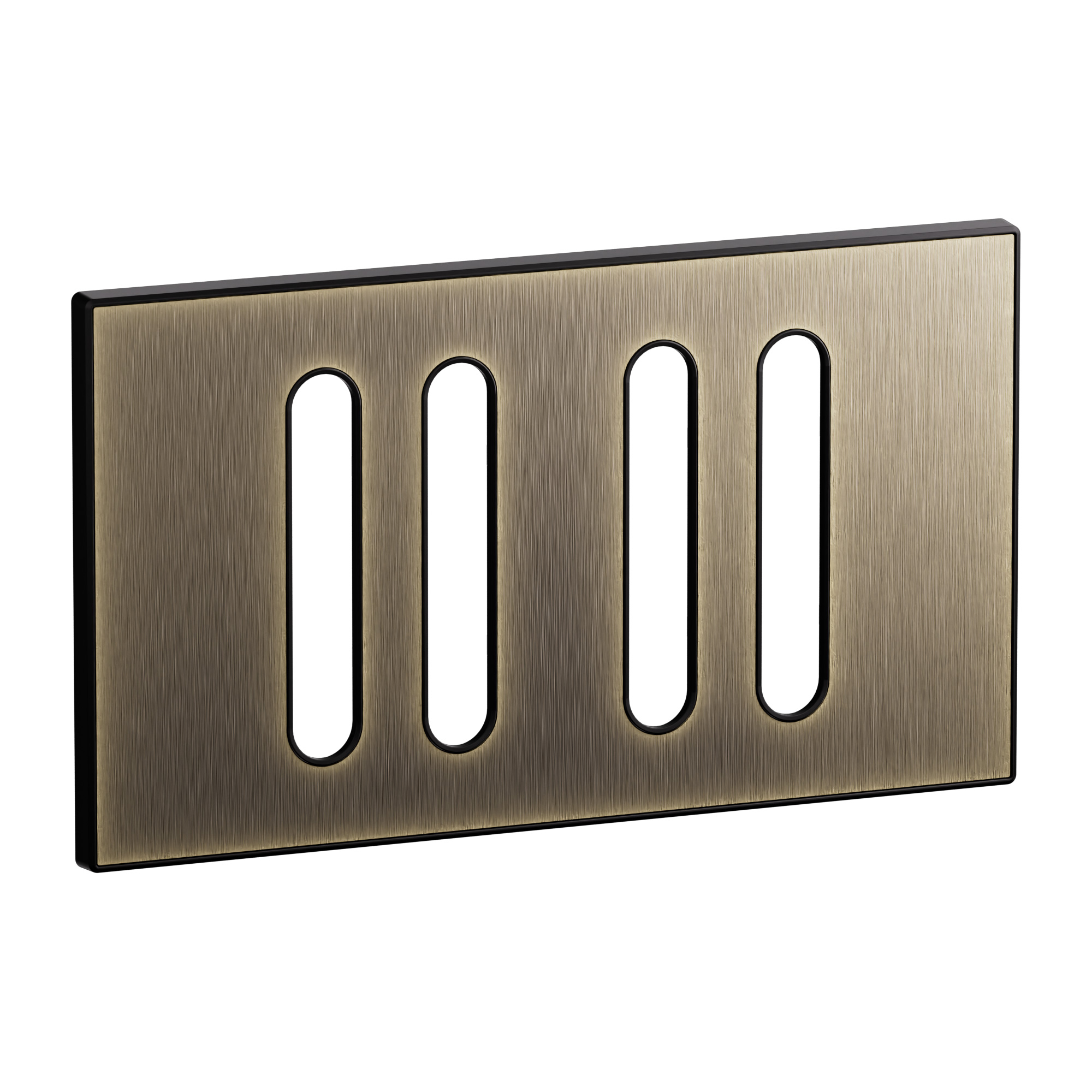

Arteor Advance - 2G plate for 2x1M slender switches brushed antique brass - Two gang 2x1 modules - Matt brass frame

Arteor Advance Legrand

Arteor Advance - 2G plate for 2x1M slender switches brushed antique brass - Two gang 2x1 modules - Matt brass frame

REF. AA1109AB EAN. 3414972974301
This 2G plate for 2x1M slender switches in brushed antique brass combines vintage aesthetics with a matt lacquered metal finish. Its snap fastening and integrated adjuster ensure precise flush-mounted installation. Halogen-free
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2G plate for 2x1M slender switches in brushed antique brass combines vintage aesthetics with a matt lacquered metal finish. Its snap fastening and integrated adjuster ensure precise flush-mounted installation. Halogen-free

Product characteristics
  • Two-gang plate for 2x1M slender switches, providing 4 horizontal modules in a compact cover frame for domestic switching devices
  • Brushed antique brass metal front with lacquered matt surface, delivering a vintage aesthetic with soft golden highlights
  • Plate made of crystal polycarbonate for high dimensional stability and refined visual clarity
  • Ultra-slender profile with 8.5mm depth and 157x90mm footprint for a discreet, refined wall integration
  • Engage (snap) fastening for flush-mounted horizontal installation, halogen-free brass construction, IK02 impact resistance, and operation from -5° C to 35° C for reliable indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • The antique brass finish with the brushed effect, blends darkened shades with soft golden highlights for a vintage character
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 4
Mounting direction Horizontal
Number of units horizontal 4
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Brass
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
