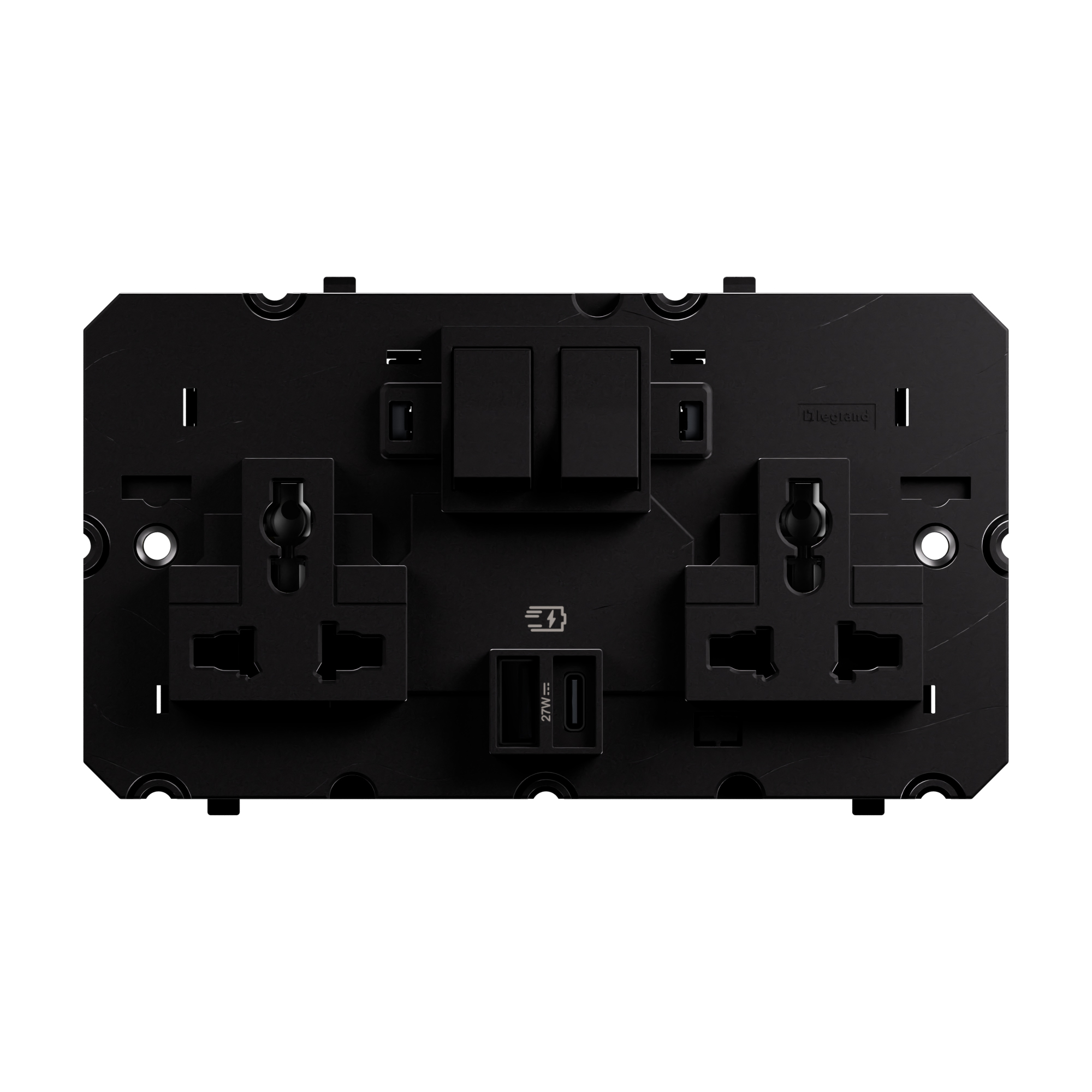

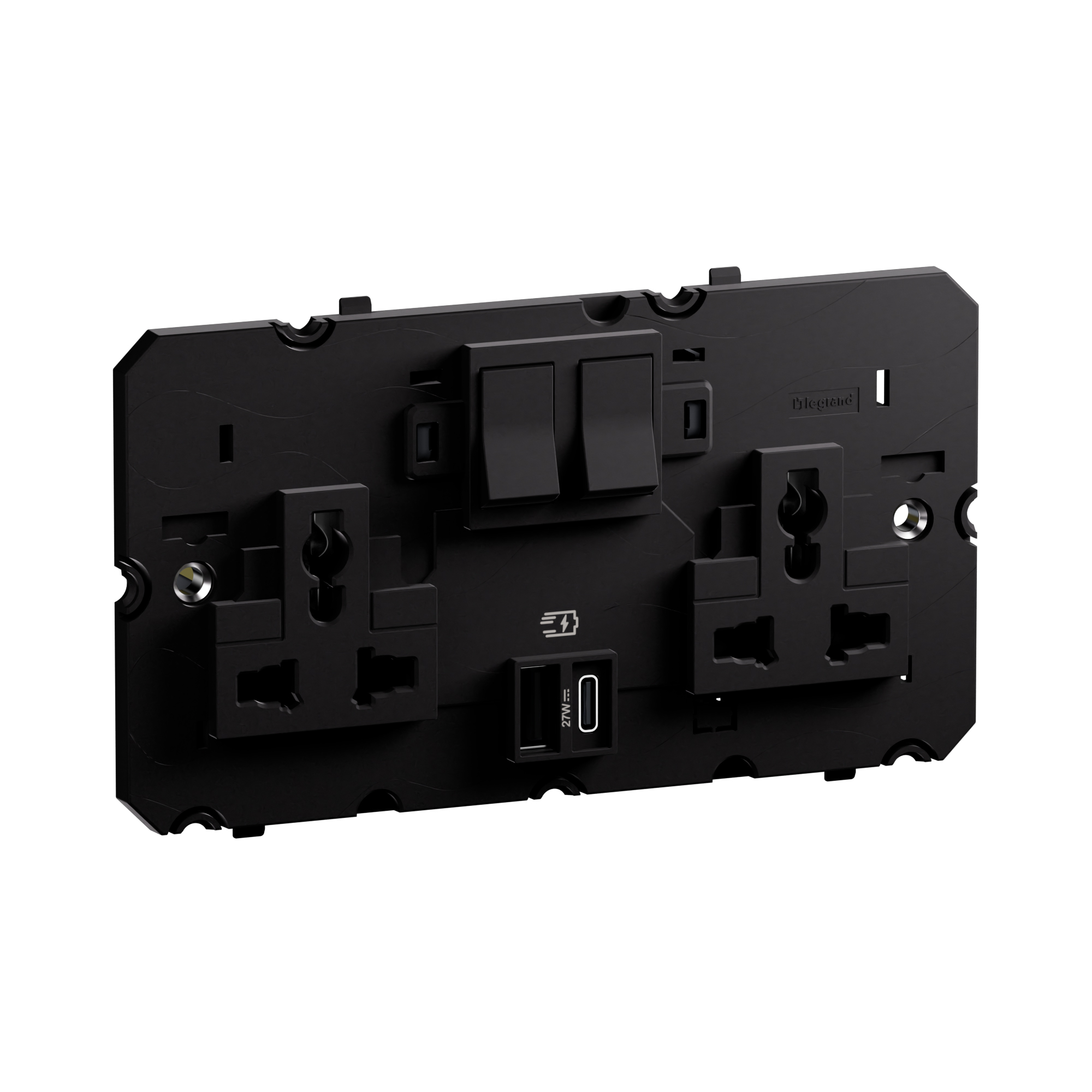

Arteor Advance - 2g multistandard switched socket with power delivery, 2 USB type A and C, 27W, matt black - Twin 13A outlets

Arteor Advance Legrand

Arteor Advance - 2g multistandard switched socket with power delivery, 2 USB type A and C, 27W, matt black - Twin 13A outlets

REF. AA3342MB EAN. 3414972731393
The two socket outlets allow electrical appliances to be connected, while the twin USB A and C charger with 27W power delivery charges electronic devices quickly. Its screw terminals and matt black finish provide secure wiring.
Download product sheet
Finition :
Number of socket outlets :
You can only compare 4 products, you must remove 1 to add this one

Description

The two socket outlets allow electrical appliances to be connected, while the twin USB A and C charger with 27W power delivery charges electronic devices quickly. Its screw terminals and matt black finish provide secure wiring.

Product characteristics
  • Two-gang multi-standard switched socket outlet with integrated USB Type-A and Type-C charger delivering up to 27W total output for simultaneous appliance power and device charging.
  • Matt black thermoplastic front with smooth matt surface finishing, matching Arteor Advance aesthetics for a deep black, low-reflection appearance.
  • Integrated USB power delivery up to 27W, 5V DC/3A max, enabling high power, fast charging performance for compatible electronic devices.
  • Clearly marked screwed terminals with terminal marking indication and 1mm² to 4mm² capacity for fast, error-free wiring and secure connection of flexible or rigid cables.
  • Square cover plate 86x146mm with only 7mm visible thickness when flush-mounted, providing a compact, low-profile installation within a 35mm minimum wall box depth.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • All-in-one convenience for powering and charging devices.
  • Deep black with a smooth matte finish
  • Compact design efficiently integrating USB ports

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 4
Number of active contacts (flat) 4
Number of active contacts (square) 4
Mounting direction Horizontal
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 1
Number of empty module positions 1
Max. current rating of USB power supply 3 A
Number of socket outlets 2
Socket outlets phase-separated No
Number of socket outlets switchable 2
Number of phases 2
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface Yes
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch Yes
Colour of switch operator White
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 143.5 mm
Device height 83.5 mm
Device depth 34.4 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 23.2 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery Yes
USB Output Power 27 W
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Cable support Not applicable
