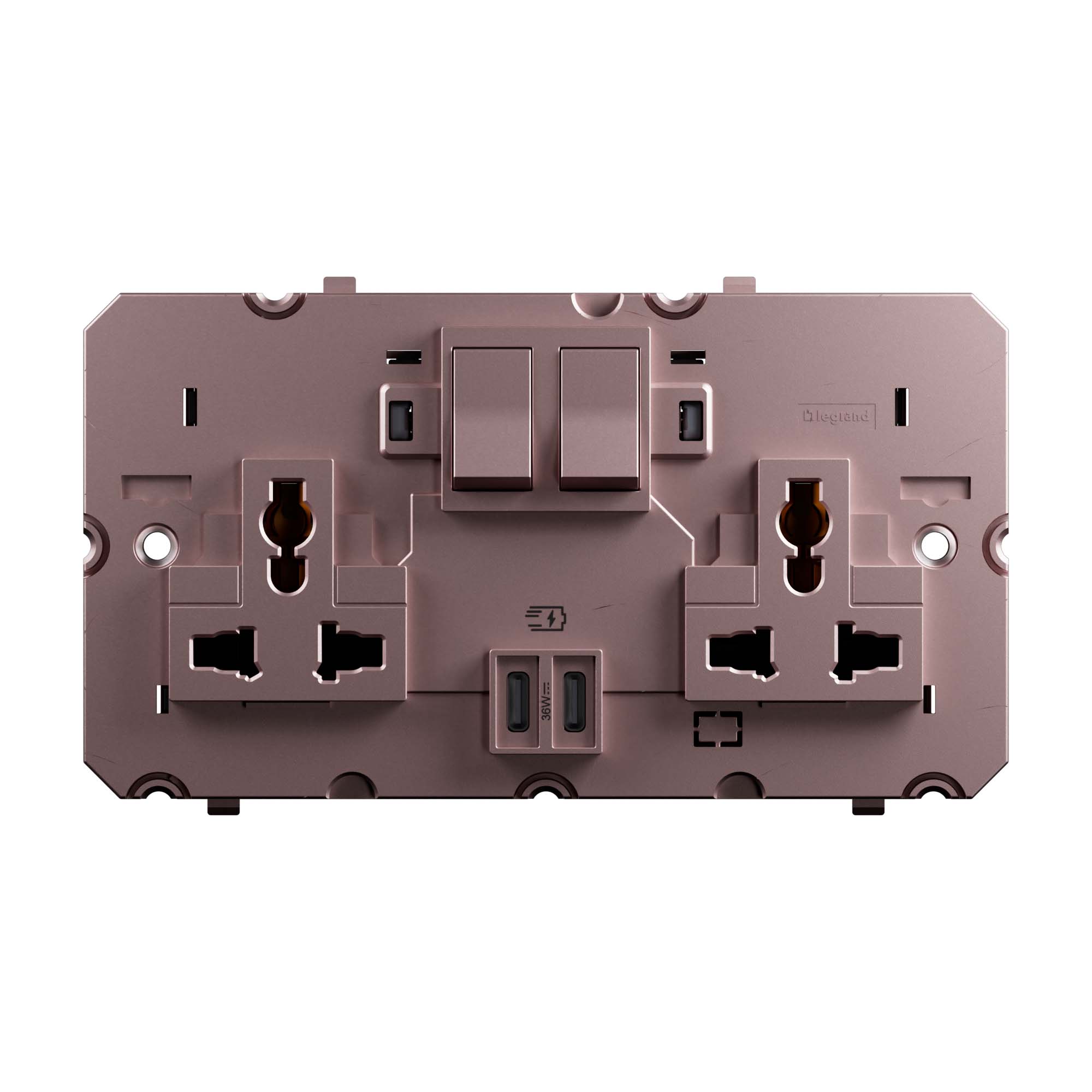

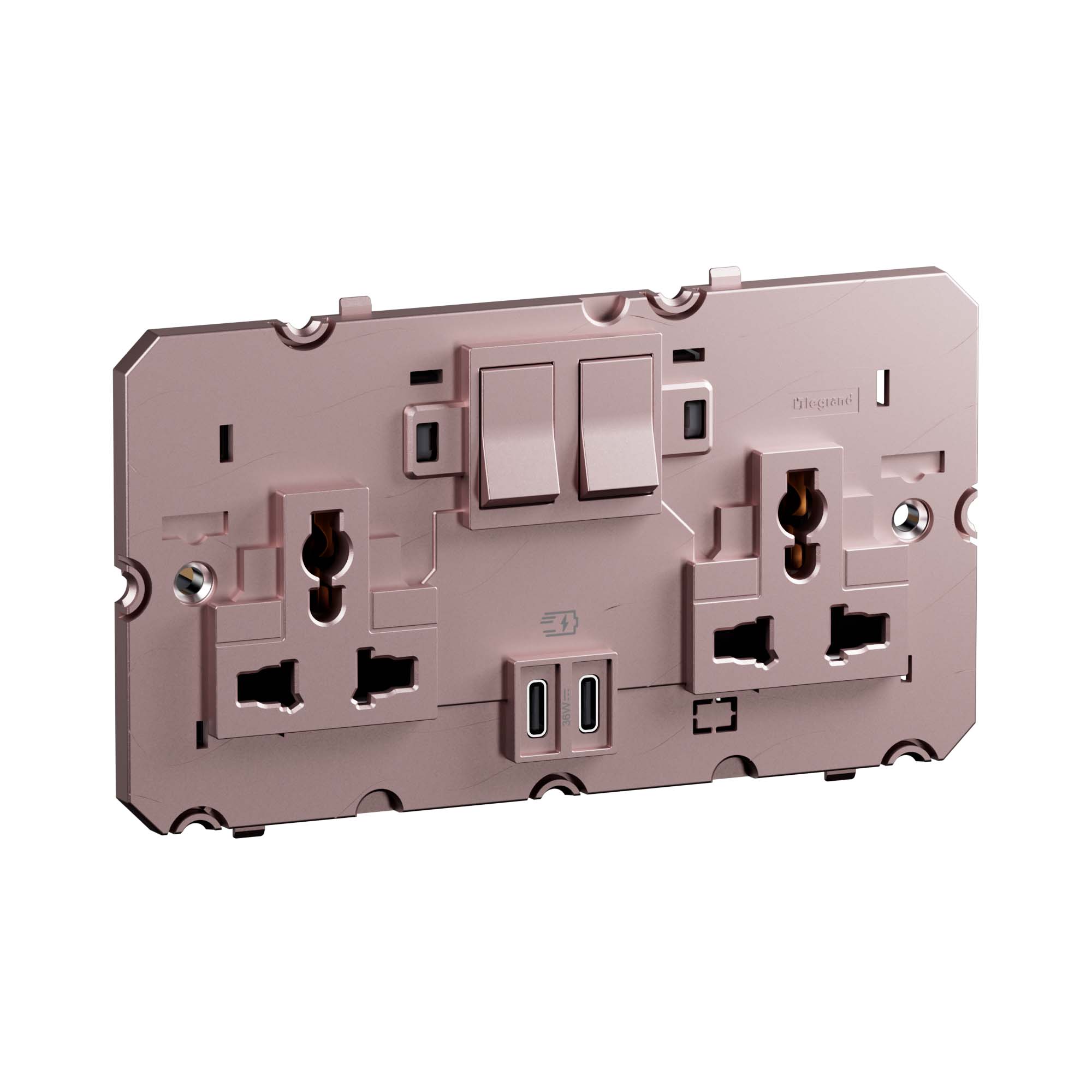

Arteor Advance - 2G multistandard switched socket USB C+C 36W rose - Dual USB-C 36W power delivery - 2x16A 250V AC - Flush-mounted IP20

Arteor Advance Legrand

Arteor Advance - 2G multistandard switched socket USB C+C 36W rose - Dual USB-C 36W power delivery - 2x16A 250V AC - Flush-mounted IP20

REF. AA3349RS EAN. 3414973113495
Combines a power outlet with dual USB-C 36W fast charging using power delivery technology. This 2-gang multi-standard socket offers all-in-one powering and charging with marked terminals and a compact, flush-mounted design.
Download product sheet
Finition :
Number of socket outlets :
You can only compare 4 products, you must remove 1 to add this one

Description

Combines a power outlet with dual USB-C 36W fast charging using power delivery technology. This 2-gang multi-standard socket offers all-in-one powering and charging with marked terminals and a compact, flush-mounted design.

Product characteristics
  • Two-gang multi-standard 16A 250V AC socket outlet with dual USB-C ports delivering up to 36W total output for simultaneous device charging
  • Rose finish matching Arteor Advance aesthetics, providing a subtle blush effect for premium residential and commercial interiors
  • Integrated fast-charge USB-C ports with Power Delivery technology for optimized, high-speed charging of compatible smartphones, tablets, and peripherals
  • Clearly marked screwed terminals with 1.5mm² to 12mm² capacity for easy identification, fast wiring, and secure electrical connections
  • Flush-mounted, insulated thermoplastic body (IP20, IK04) with compact 23.2mm built-in depth, suitable for indoor installations in 35mm boxes
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • All-in-one convenience for powering and charging devices.
  • Pink finish evoking subtle blush effect
  • Compact design integrating fast charging USB ports

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor Yes
Protective contact Other
Number of active contacts (round) 4
Number of active contacts (flat) 4
Number of active contacts (square) 4
Mounting direction Horizontal
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 2
Max. current rating of USB power supply 3 A
Number of socket outlets 2
Socket outlets phase-separated No
Number of socket outlets switchable 2
Number of phases 2
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour Other
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Colour of switch operator Other
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 143.5 mm
Device height 83.5 mm
Device depth 34.4 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Inflammability class of insulation material according to UL 94 V0
Built-in depth 23.2 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery Yes
USB Output Power 36 W
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1.5-12 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 2.5-6 mm²
Cable support Not applicable
Contains Batteries No
Connected object No
