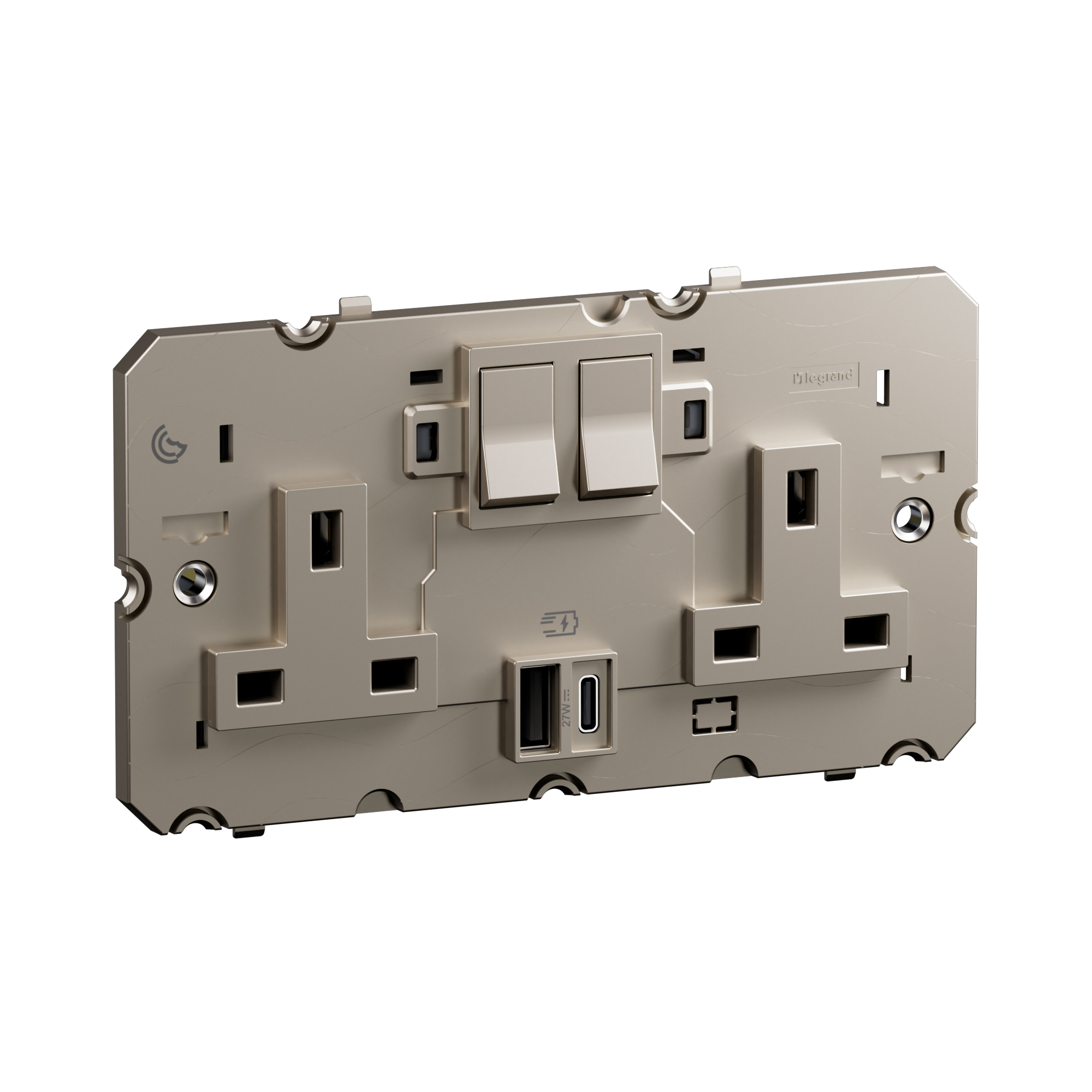

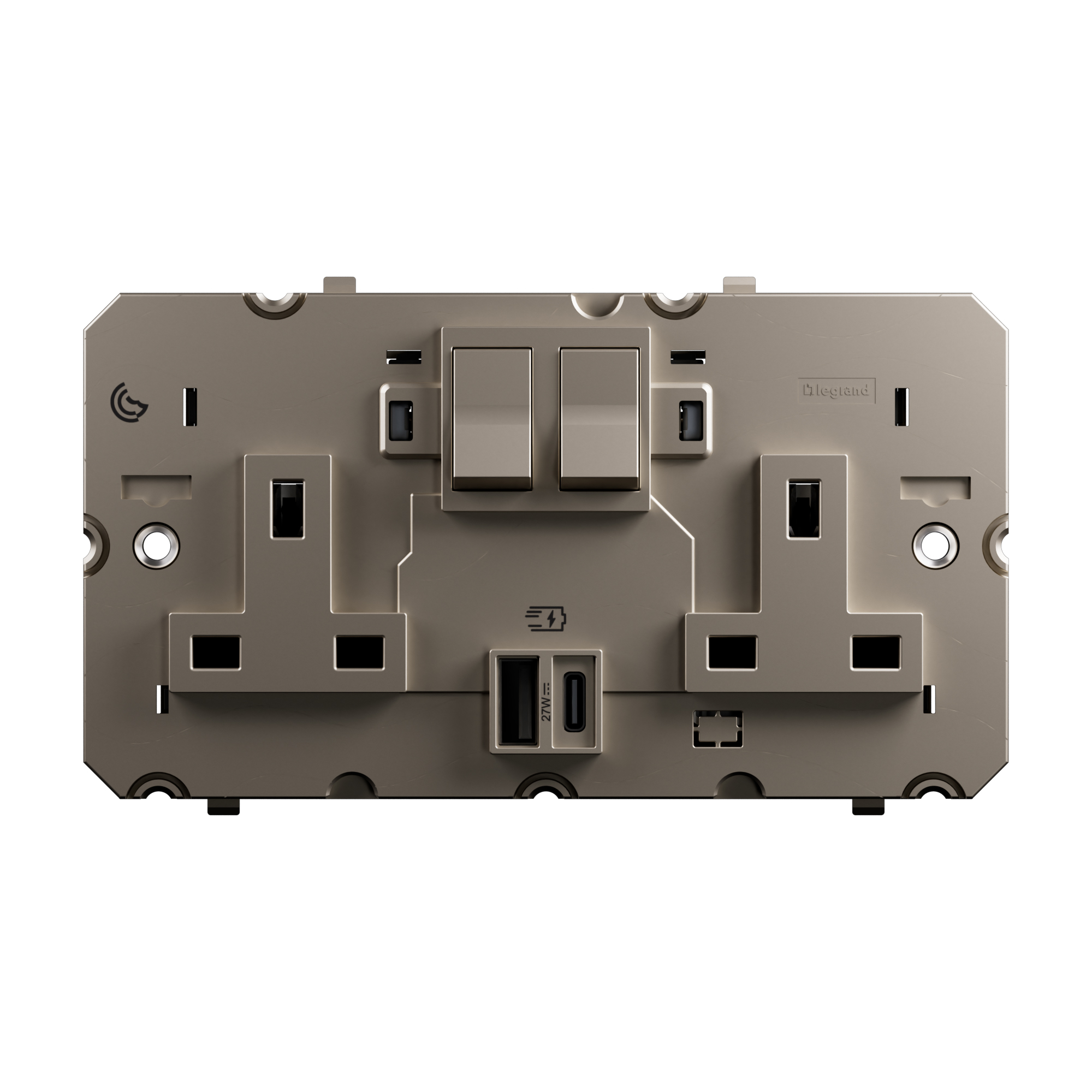

Name: Arteor Advance - 2G BS13A switched socket power delivery 2 USB A+C 27W champagne - Dual 13A outlets - 27W fast USB A+C charging
SKU: AA3320CH

Description

Combines a power outlet with a USB port for easy charging, featuring two 13A switched sockets and 27W USB A+C power delivery for fast charge. Marked terminals and screw-type connections simplify installation.

Product characteristics

Two-gang 13A, 250V AC British Standard switched socket with integrated 27W USB A (1x) + USB C (1x) power delivery charging ports for simultaneous power and device charging
Champagne gold, matt lacquered thermoplastic front in the Arteor Advance range, providing a premium, coordinated aesthetic for high-end interior specifications
Integrated USB A+C 27W power delivery module (max. 3A) enables fast charging of compatible devices directly from the wall plate without external adapters
Clearly marked screwed terminals with terminal marking indication and 1mm² to 4mm² capacity for fast, error-free wiring and secure connection of flexible or rigid conductors
Microswitched, individually switched 13A socket outlets allow precise control of power flow to connected loads, enhancing safety and energy management

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

All-in-one convenience for powering and charging devices.
Warm gray finish infused with ivory hues highlights silky elegance
Compact design integrating fast charging USB ports

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	No
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	4
Number of active contacts (square)	0
Mounting direction	Horizontal
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	1
Number of empty module positions	1
Max. current rating of USB power supply	3 A
Number of socket outlets	2
Socket outlets phase-separated	No
Number of socket outlets switchable	2
Number of phases	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	Yes
Colour	Gold
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	Yes
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic

Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No
With on/off switch	Yes
Colour of switch operator	Gold
Rotated central insert	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	143.5 mm
Device height	83.5 mm
Device depth	34.4 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	23.2 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	27 W
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
Cable support	Not applicable

Arteor Advance - 2G BS13A switched socket power delivery 2 USB A+C 27W champagne - Dual 13A outlets - 27W fast USB A+C charging
