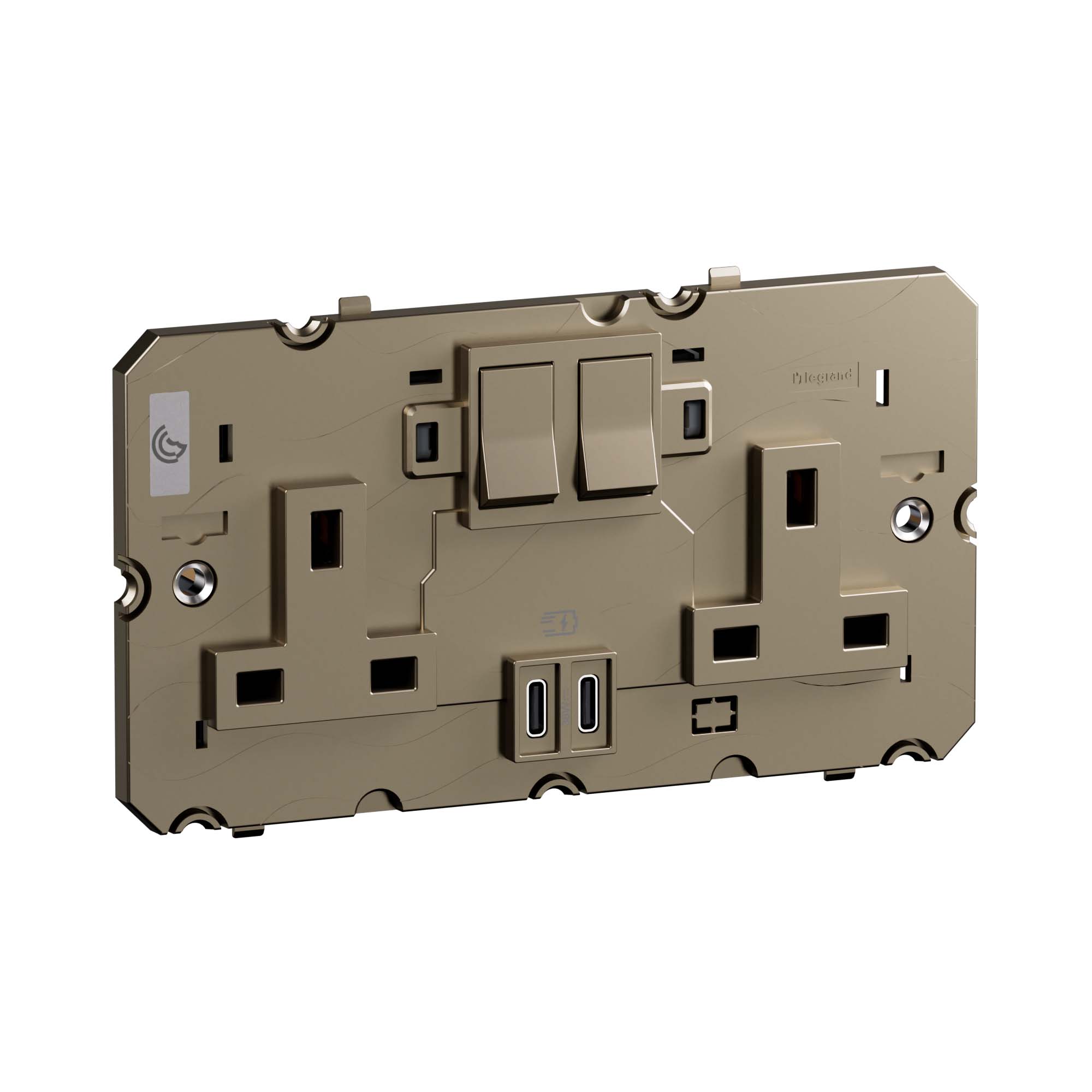

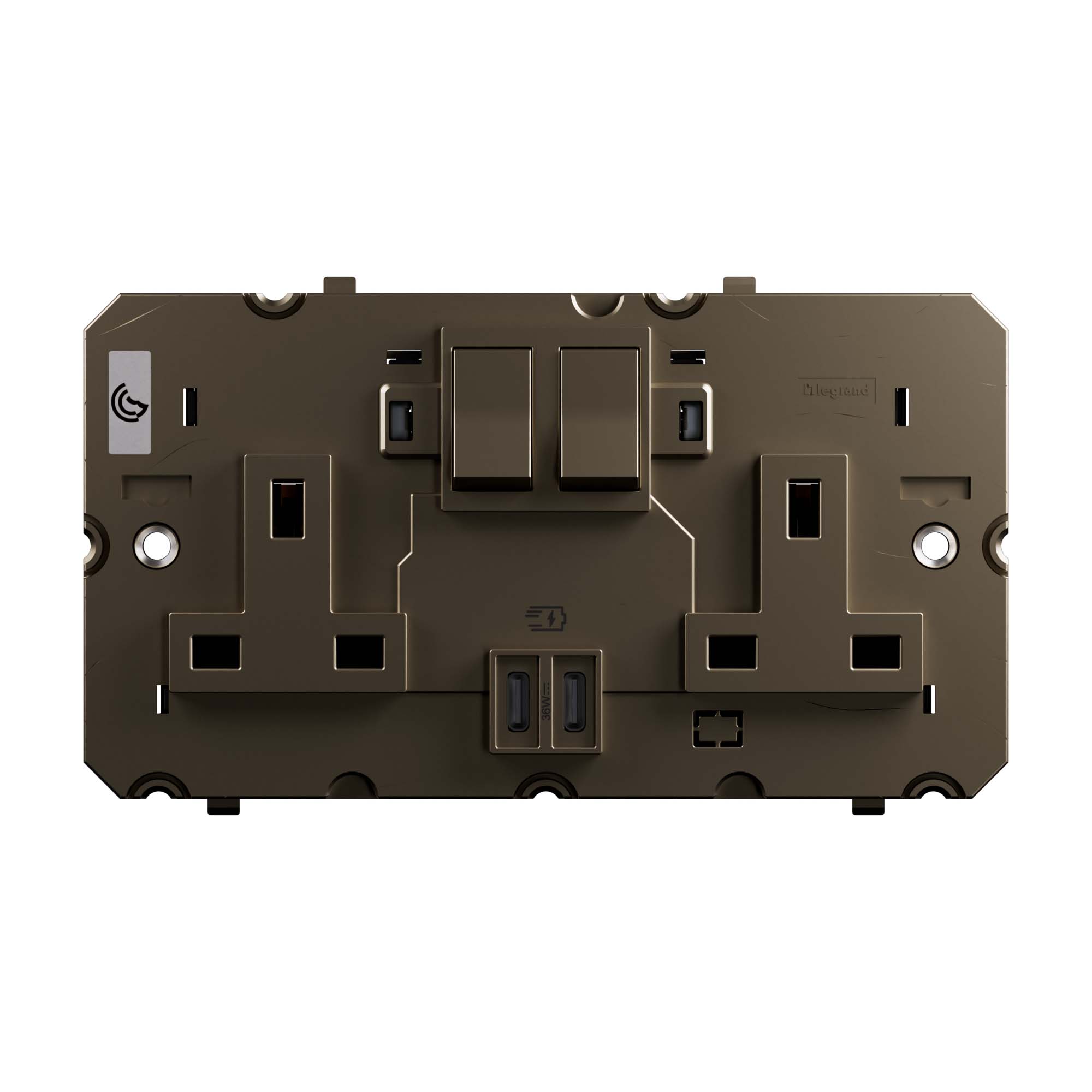

Name: Arteor Advance - 2g bs13a double pole switched socket USB C+C 36W dark bronze - Two gang 13A outlets - Dual USB-C 36W power delivery
SKU: AA3333DB

Description

Combines a 2 gang 13A double pole switched socket with dual USB C 36W power delivery for fast charging. Its compact dark bronze design with safety shutters and IP20 rating suits indoor installations.

Product characteristics

Two-gang 13A 250V AC British Standard double pole switched socket with dual USB-C outputs delivering up to 36W total for simultaneous device charging
Dark bronze matt lacquered thermoplastic front plate providing a robust, halogen-free finish aligned with Arteor Advance aesthetics
Integrated dual USB-C ports with 36W power delivery fast-charging capability (up to 3A) for rapid charging of compatible devices
Clearly marked screwed terminals with 1.5mm² to 12mm² capacity for fast, error-free wiring and secure electrical connections
Flush-mounted IP20 socket outlet with insulated mounting, safety shutters, and compact 23.2mm built-in depth for indoor residential and commercial installations

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximize protection

Avantages

All-in-one convenience for powering and charging devices.
Deep bronze finish evoking classic aesthetic
Compact design integrating fast charging USB ports

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	Yes
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	4
Number of active contacts (square)	0
Mounting direction	Horizontal
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	0
Number of empty module positions	2
Max. current rating of USB power supply	3 A
Number of socket outlets	2
Socket outlets phase-separated	No
Number of socket outlets switchable	2
Number of phases	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	No
Colour	Bronze
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	Yes
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes

Surface protection	Lacquered
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No
With on/off switch	No
Colour of switch operator	Bronze
Rotated central insert	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	143.5 mm
Device height	83.5 mm
Device depth	34.4 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Inflammability class of insulation material according to UL 94	V0
Built-in depth	23.2 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	36 W
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1.5-12 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	2.5-6 mm²
Cable support	Not applicable
Contains Batteries	No
Connected object	No

Arteor Advance - 2g bs13a double pole switched socket USB C+C 36W dark bronze - Two gang 13A outlets - Dual USB-C 36W power delivery
