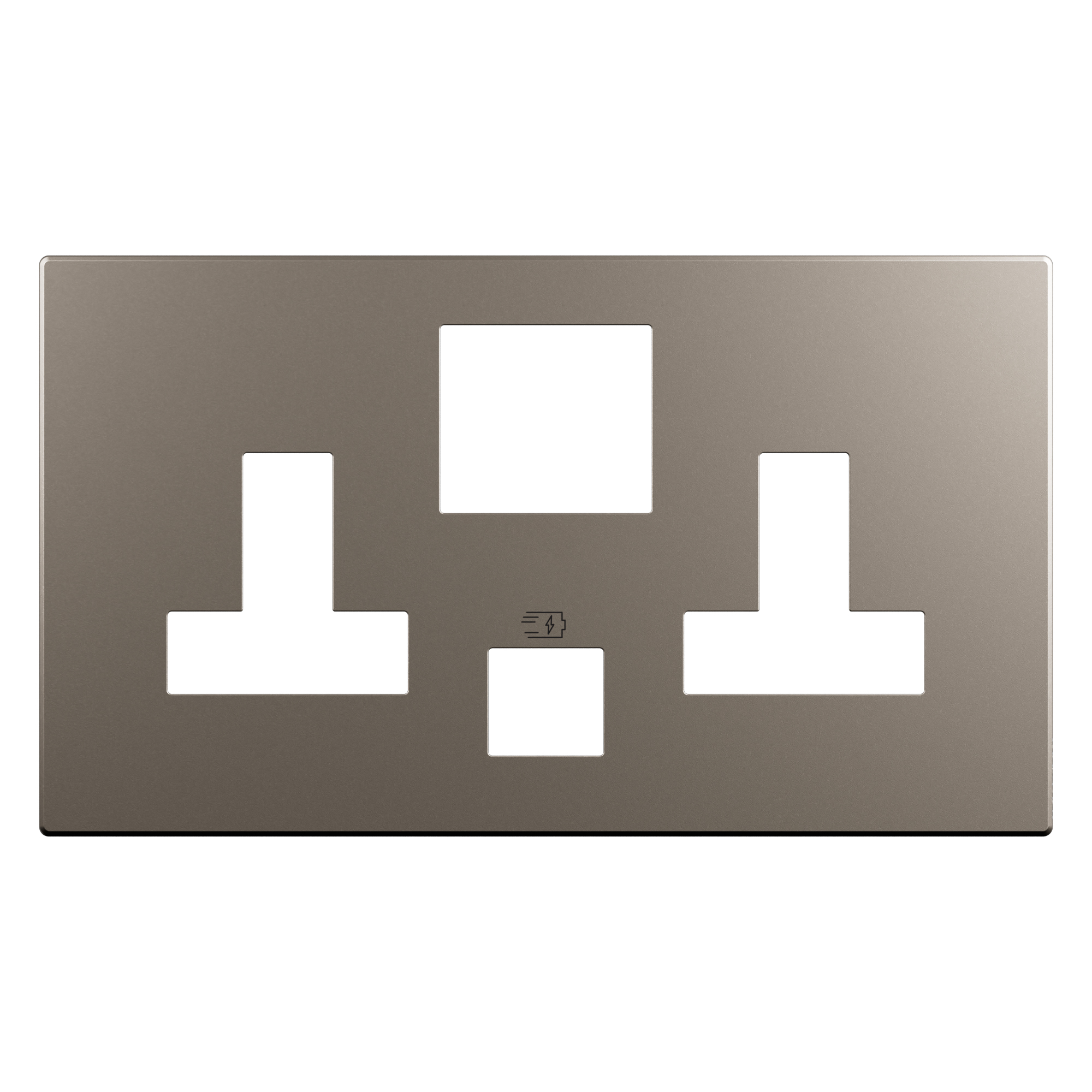

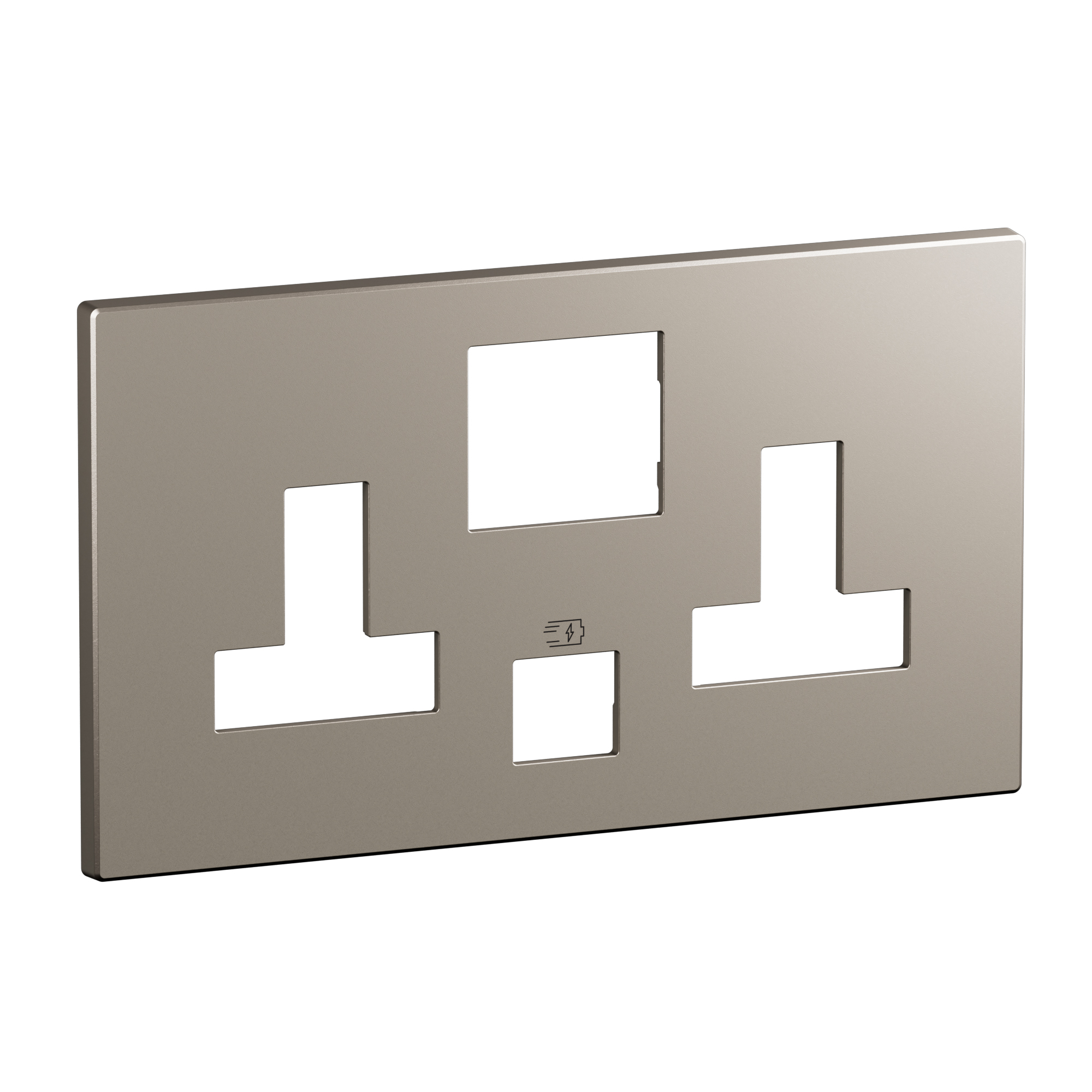

Arteor Advance - 2g bs plate 13A twin switched socket with 2 USB ports champagne - Dual USB charging plate

Arteor Advance Legrand

Arteor Advance - 2g bs plate 13A twin switched socket with 2 USB ports champagne - Dual USB charging plate

REF. AA1115CH EAN. 3414972919197
This 2-gang BS plate combines a 13A twin switched socket with 2 USB ports for efficient device charging. Its champagne matt thermoplastic construction delivers a minimalist, slender monobloc design. Flush-mounted snap fastening.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2-gang BS plate combines a 13A twin switched socket with 2 USB ports for efficient device charging. Its champagne matt thermoplastic construction delivers a minimalist, slender monobloc design. Flush-mounted snap fastening.

Product characteristics
  • Two-gang BS plate with 13A twin switched socket and 2 USB charging ports for horizontal flush-mounted installation
  • Champagne warm gray matt lacquered finish with ivory hues for a refined, minimalist aesthetic
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Slender monobloc cover frame design with snap-on fastening for precise alignment and streamlined installation
  • Compact dimensions 157mm (W)x90mm (H)x8mm (D), IK02 impact resistance, operating temperature range -5° C to 35° C for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
