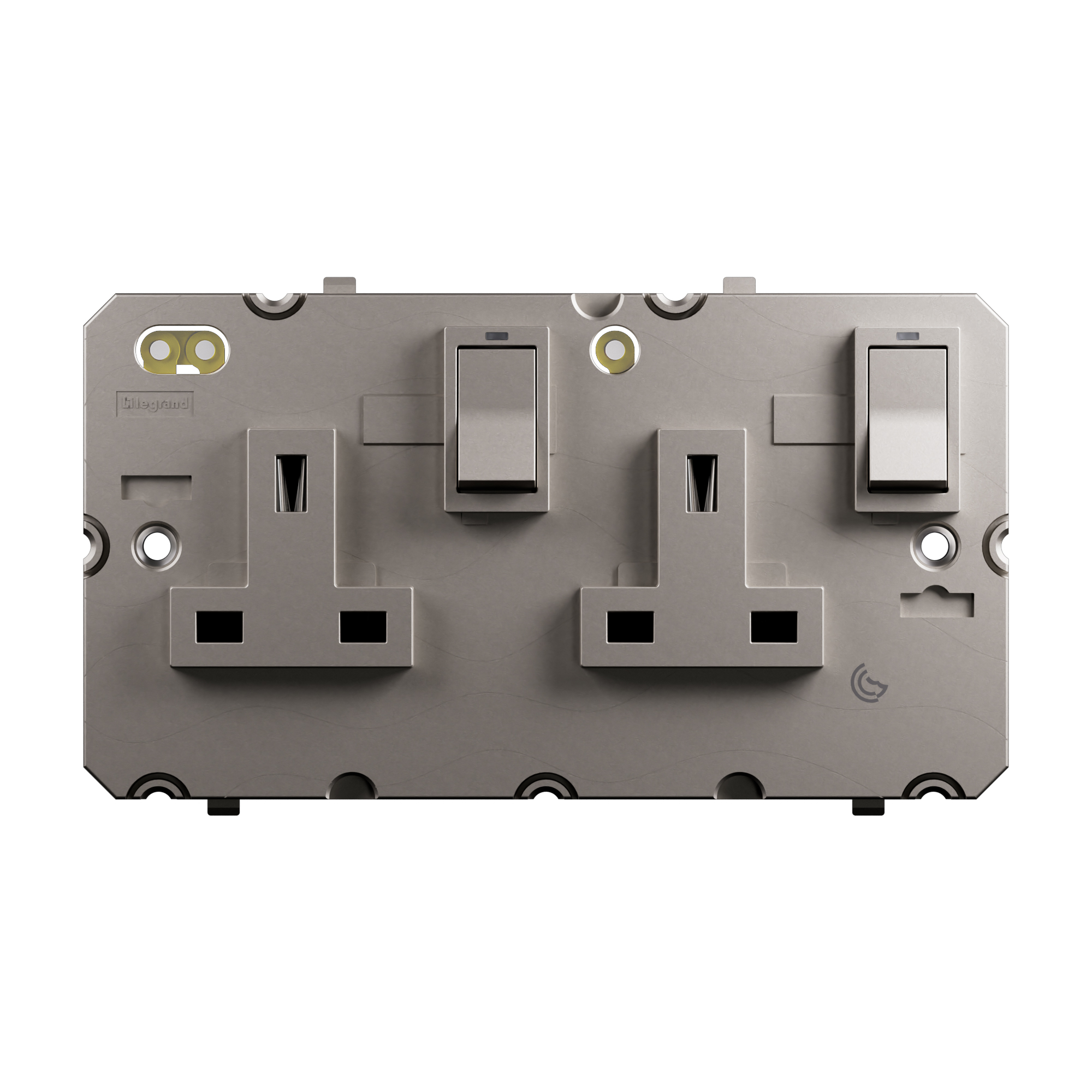

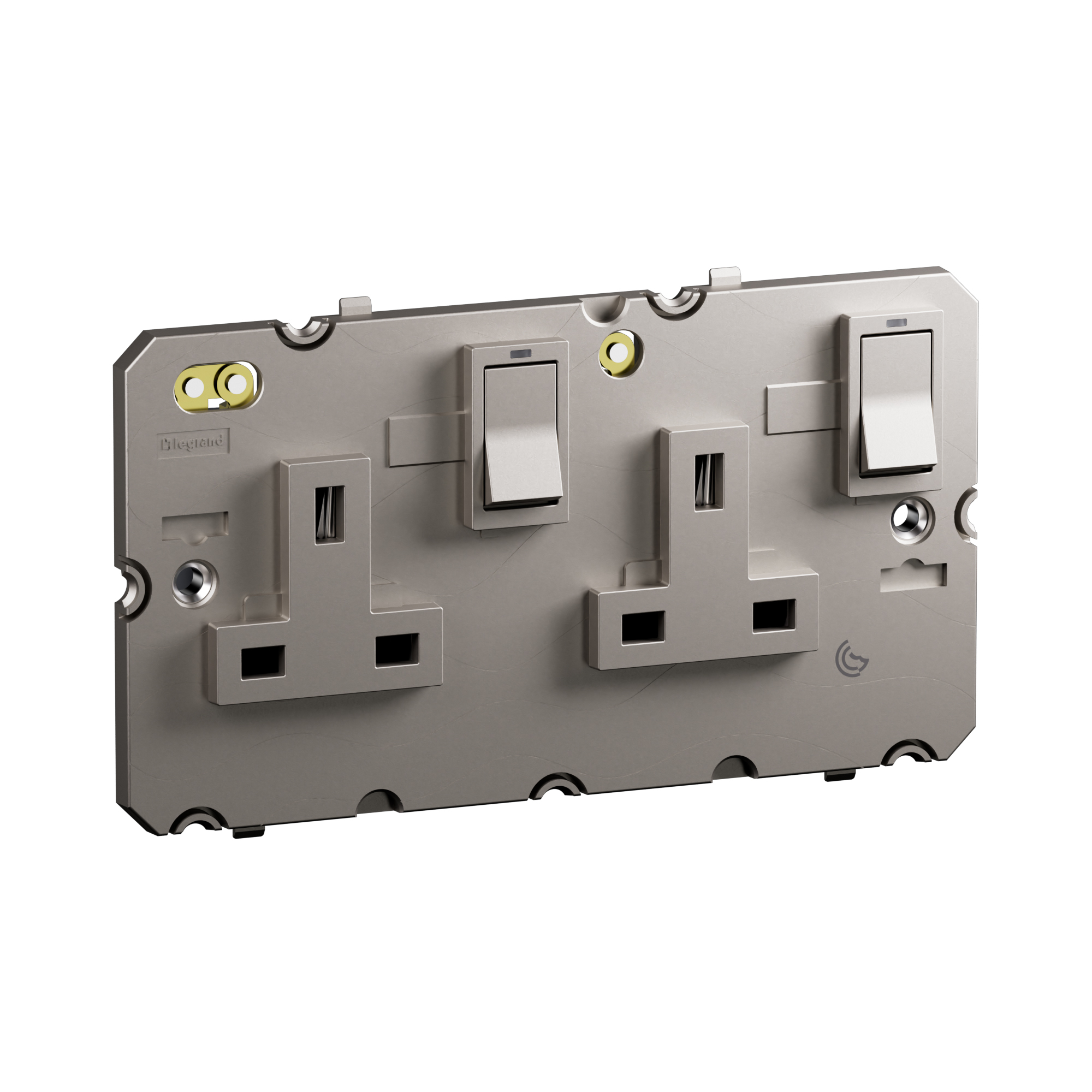

Name: Arteor Advance - 2G BS 13A 2 poles + earth single pole switched socket with LED indicator matt titanium - Dual 13A outlets
SKU: AA3209MT

Description

Allows connecting an electrical appliance through a 2-gang BS 13A 2P+E single pole switched socket with LED indicator. Matt titanium thermoplastic front offers compact, flush-mounted integration. Marked screw terminals and safety shutters

Product characteristics

Two-gang 13A 250V AC British Standard socket outlet, 2P+E, single-pole switched, providing two independently switchable outlets for general-purpose loads
Matt titanium thermoplastic front with insulated flush-mounted design for a sleek, low-glare finish and robust integration into Arteor Advance installations
Flat protective earth contact and 2P+E configuration ensure reliable grounding and safe operation on 1-phase circuits
Clearly marked screwed terminals with terminal marking indication and 1 to 4mm² capacity for fast, error-free wiring of flexible or rigid conductors
Integrated LED function indicator on each switched outlet for clear visual status feedback in indoor IP20 applications

Recommendation / Restriction

Recommended for inside use only

The product's benefits

Installation

Has screw-type terminals for easy and secure wire installation.

Usage

Fitted with safety shutters to maximise protection

Avantages

Compact design for easy design integration
Titanium with a smooth matte aspect

Technical characteristics

Model	British Standard
Concurrently switching neutral conductor	No
Protective contact	Flat
Number of active contacts (round)	0
Number of active contacts (flat)	4
Number of active contacts (square)	0
Mounting direction	Horizontal
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	Yes
Number of ports USB-A	0
Number of empty module positions	0
Number of socket outlets	2
Socket outlets phase-separated	No
Number of socket outlets switchable	2
Number of phases	1
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	No
Colour	Titanium
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	Yes
With function lighting	Yes
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	None
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic

Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Antimicrobial treatment	No
With loop through function	No
With on/off switch	Yes
Colour of switch operator	Titanium
Rotated central insert	No
Nominal current	13 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	143.5 mm
Device height	83.5 mm
Device depth	29.6 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	18.5 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Terminal marking indication	Yes
Prewired	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
Cable support	Not applicable
Contains Batteries	No
Connected object	No

Arteor Advance - 2G BS 13A 2 poles + earth single pole switched socket with LED indicator matt titanium - Dual 13A outlets
