Arteor Advance - 2G British Standard plate for 13A twin unswitched socket outlet solid champagne - 2-gang horizontal cover frame

Arteor Advance Legrand

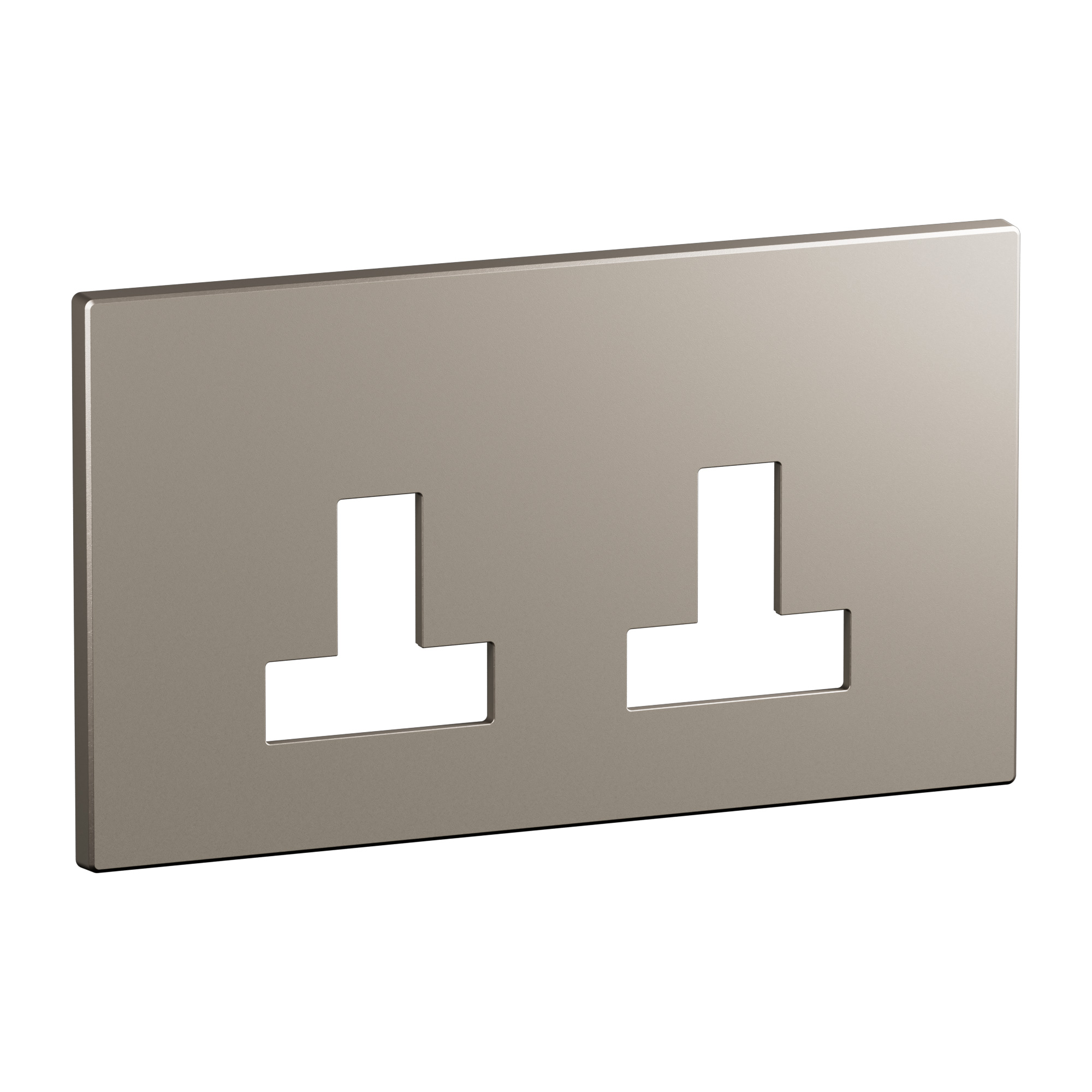

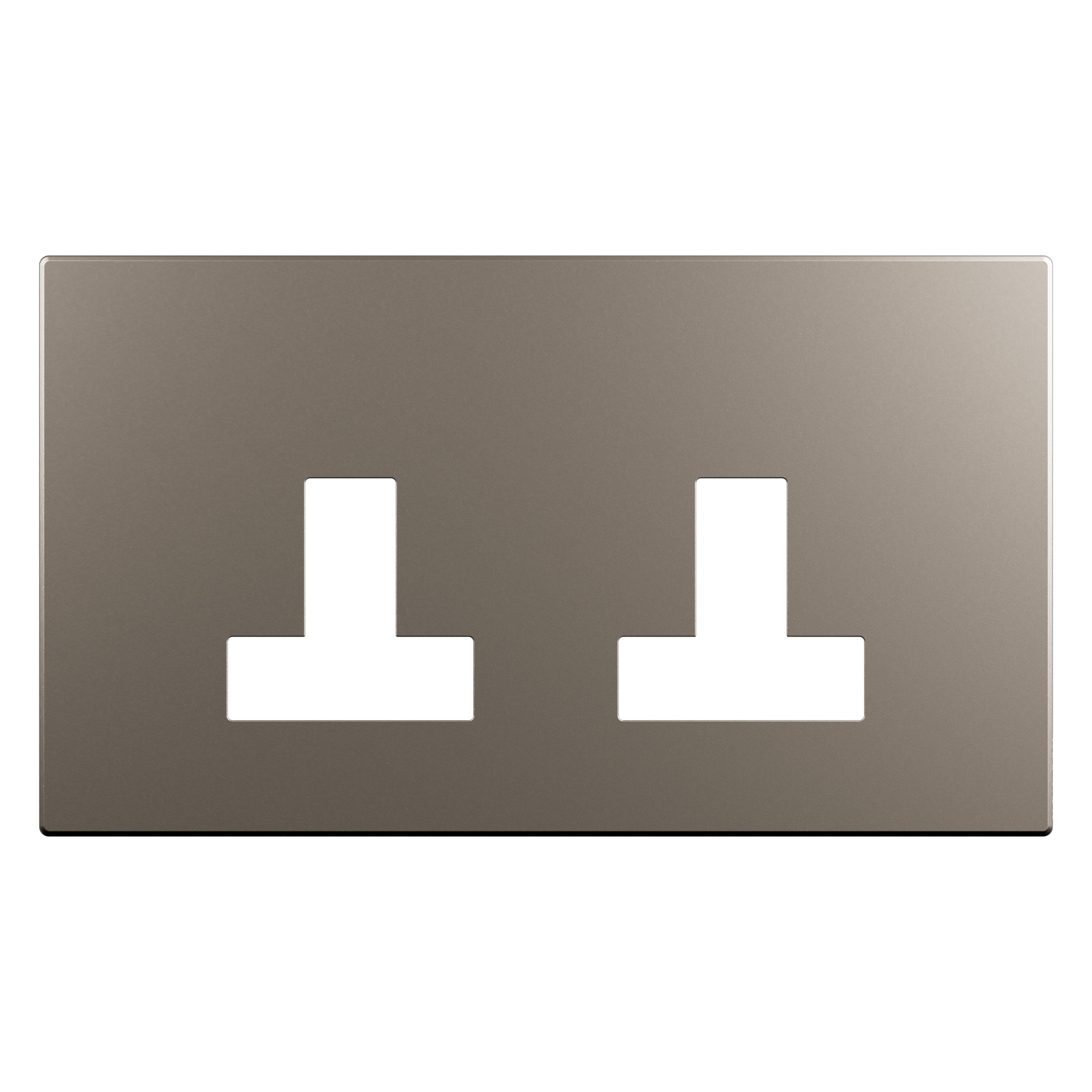

Arteor Advance - 2G British Standard plate for 13A twin unswitched socket outlet solid champagne - 2-gang horizontal cover frame

REF. AA1103SC EAN. 3414972973465
This 2-gang British Standard plate for 13A twin unswitched socket outlets features a champagne matt lacquered aluminum finish with minimalist monobloc styling. Its flush-mounted, snap-on design and IK02 impact resistance ensure dur
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2-gang British Standard plate for 13A twin unswitched socket outlets features a champagne matt lacquered aluminum finish with minimalist monobloc styling. Its flush-mounted, snap-on design and IK02 impact resistance ensure dur

Product characteristics
  • Two-gang British Standard plate for 13A twin unswitched socket outlets, providing two horizontal units in a compact cover frame
  • Solid champagne, warm gray metallic finish with ivory hues and matt lacquered surface for a refined, minimalist aesthetic
  • Plate manufactured from lacquered aluminum, halogen free and non-transparent, ensuring robust mechanical performance (IK02)
  • Slender monobloc design with engage (snap) fastening for precise flush-mounted installation in horizontal orientation
  • Operating temperature range -5to35° C and storage temperature range -10to70° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance with cool sensation of metal
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04500EN-01.pdf pdf (0.51 Mo)
