Arteor Advance - 2G British Standard plate for 13A twin unswitched socket outlet Frosted Black - Crystal polycarbonate matt finish

Arteor Advance Legrand

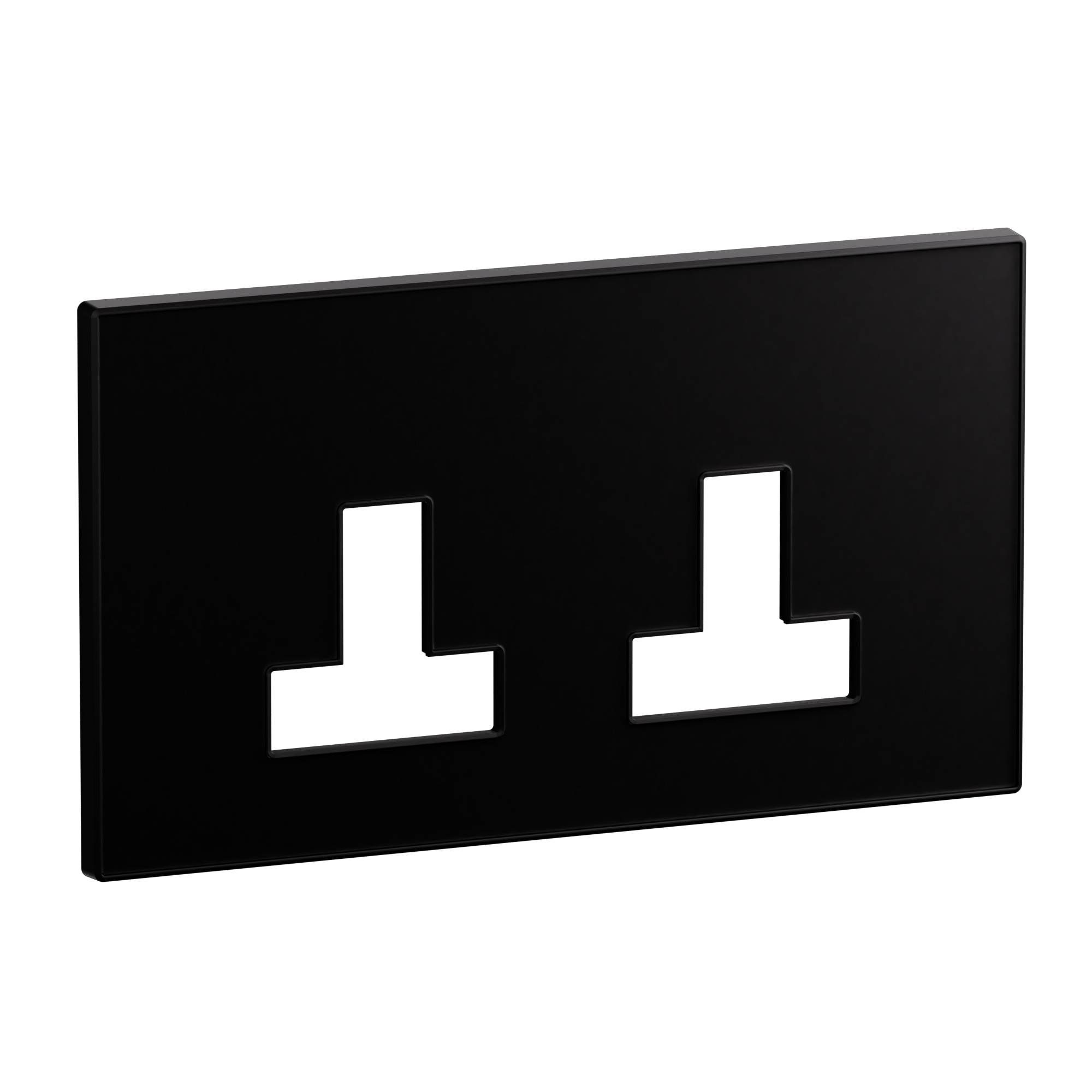

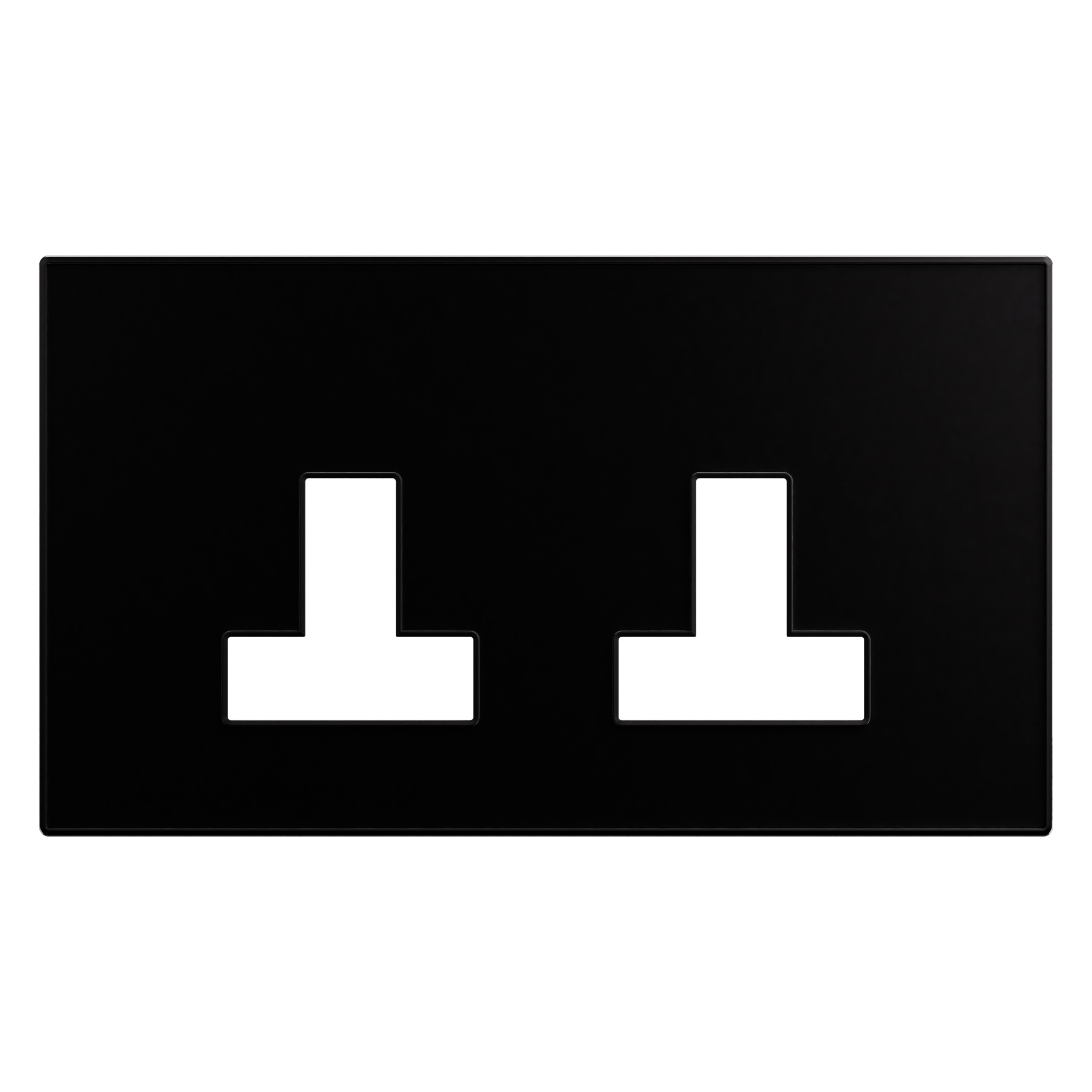

Arteor Advance - 2G British Standard plate for 13A twin unswitched socket outlet Frosted Black - Crystal polycarbonate matt finish

REF. AA1103FB EAN. 3414972720397
This 2-gang British Standard plate for 13A twin unswitched socket outlets features a frosted black matt thermoplastic finish. Its crystal polycarbonate construction delivers velvet touch and high opacity.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2-gang British Standard plate for 13A twin unswitched socket outlets features a frosted black matt thermoplastic finish. Its crystal polycarbonate construction delivers velvet touch and high opacity.

Product characteristics
  • Two-gang British Standard plate designed for 2 x 13A twin unswitched socket outlets, providing dual horizontal device accommodation.
  • Frosted black matte finish for reduced glare and refined visual integration with contemporary interiors.
  • Plate manufactured from crystal polycarbonate thermoplastic, halogen free and IK02 impact rated for enhanced mechanical robustness.
  • Slender monobloc cover frame with snap-engage fastening for precise flush-mounted installation and clean wall interface.
  • Arteor Advance cover frame without mounting grid, 157mmx90mmx8mm, operating temperature range -5° C to 35° C, recommended for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04499EN-01.pdf pdf (0.51 Mo)
