Arteor Advance - 2G British Standard 13A twin switched socket with 2 USB ports Matt Titanium - 2-gang 13A outlets - Dual USB charging

Arteor Advance Legrand

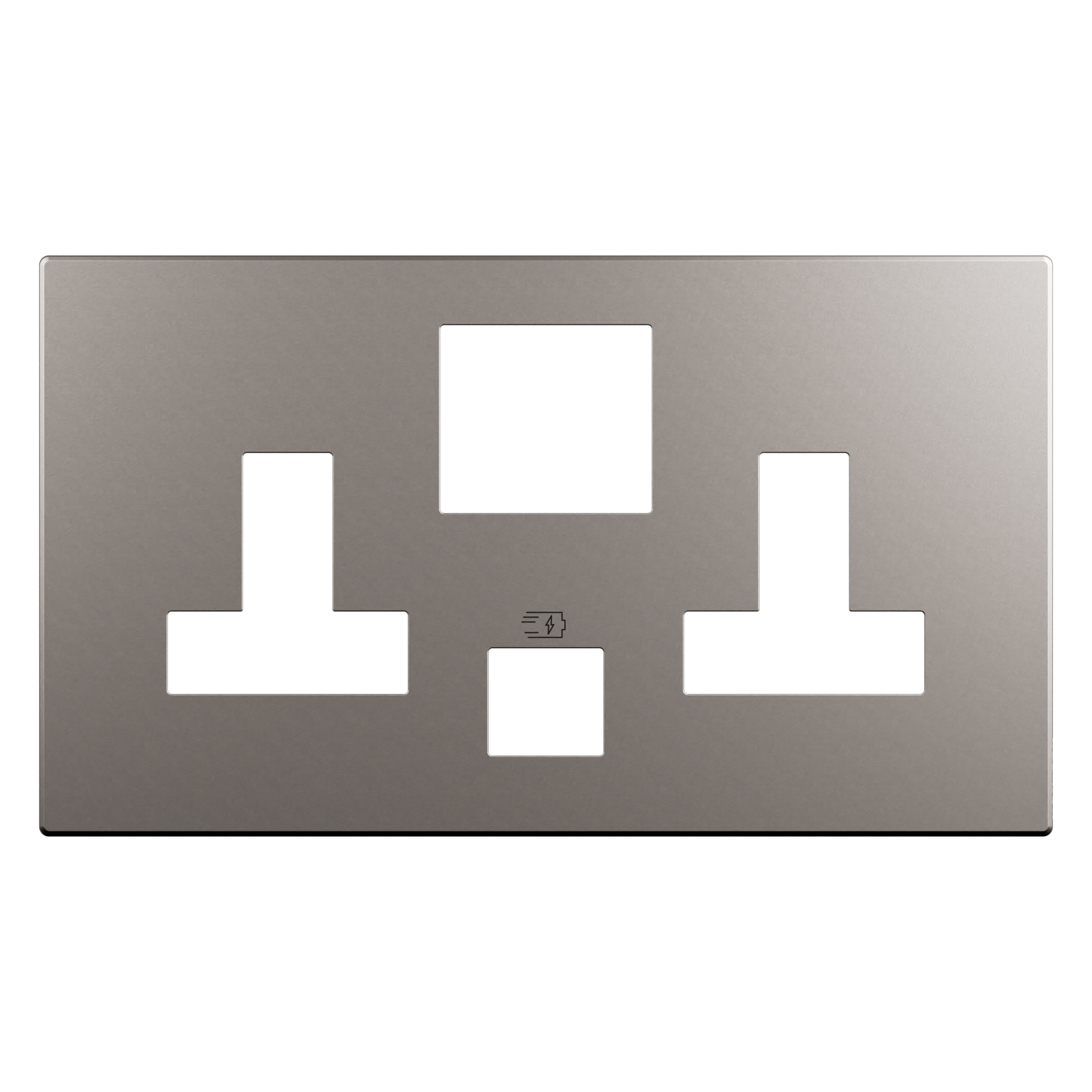

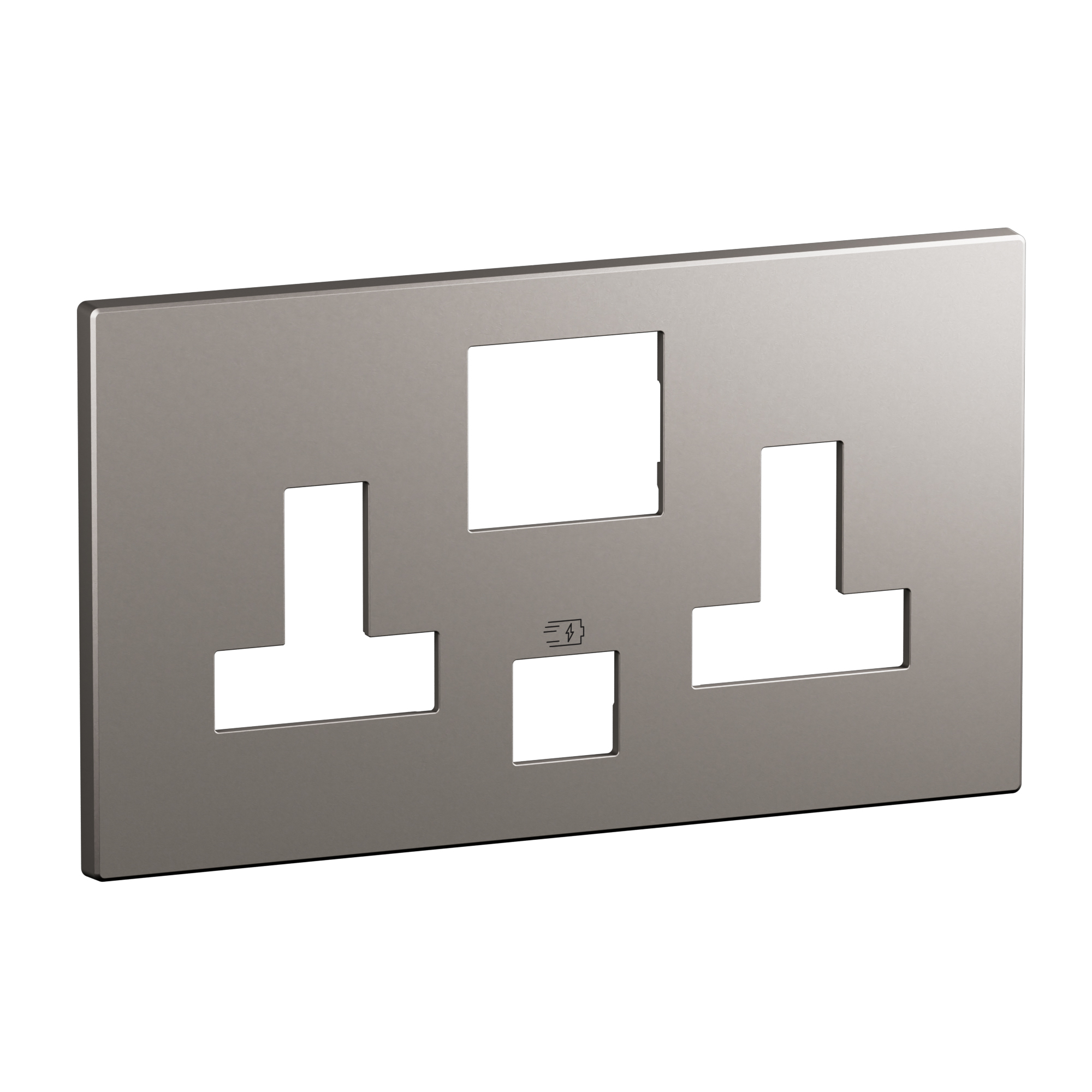

Arteor Advance - 2G British Standard 13A twin switched socket with 2 USB ports Matt Titanium - 2-gang 13A outlets - Dual USB charging

REF. AA1115MT EAN. 3414972722100
The 2G British standard plate 13A twin switched socket W/ USB 2 ports matt titanium delivers dual 13A outlets plus two USB charging ports. Its matt titanium plate and slender design enable robust, minimalist installations.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2G British standard plate 13A twin switched socket W/ USB 2 ports matt titanium delivers dual 13A outlets plus two USB charging ports. Its matt titanium plate and slender design enable robust, minimalist installations.

Product characteristics
  • Two-gang British Standard plate with 13A twin switched socket and 2 integrated USB charging ports for horizontal mounting
  • Matt titanium finish providing a smooth, low-glare surface for contemporary technical interiors
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact rated IK02 for robust, safe installations
  • Slender monobloc flush-mounted design with snap fastening for a minimalist, seamless wall integration
  • Operating temperature range -5° C to 35° C and storage temperature range -10° C to 70° C, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Titanium with a smooth matte aspect
  • Minimalist design

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04498EN-01.pdf pdf (0.51 Mo)
