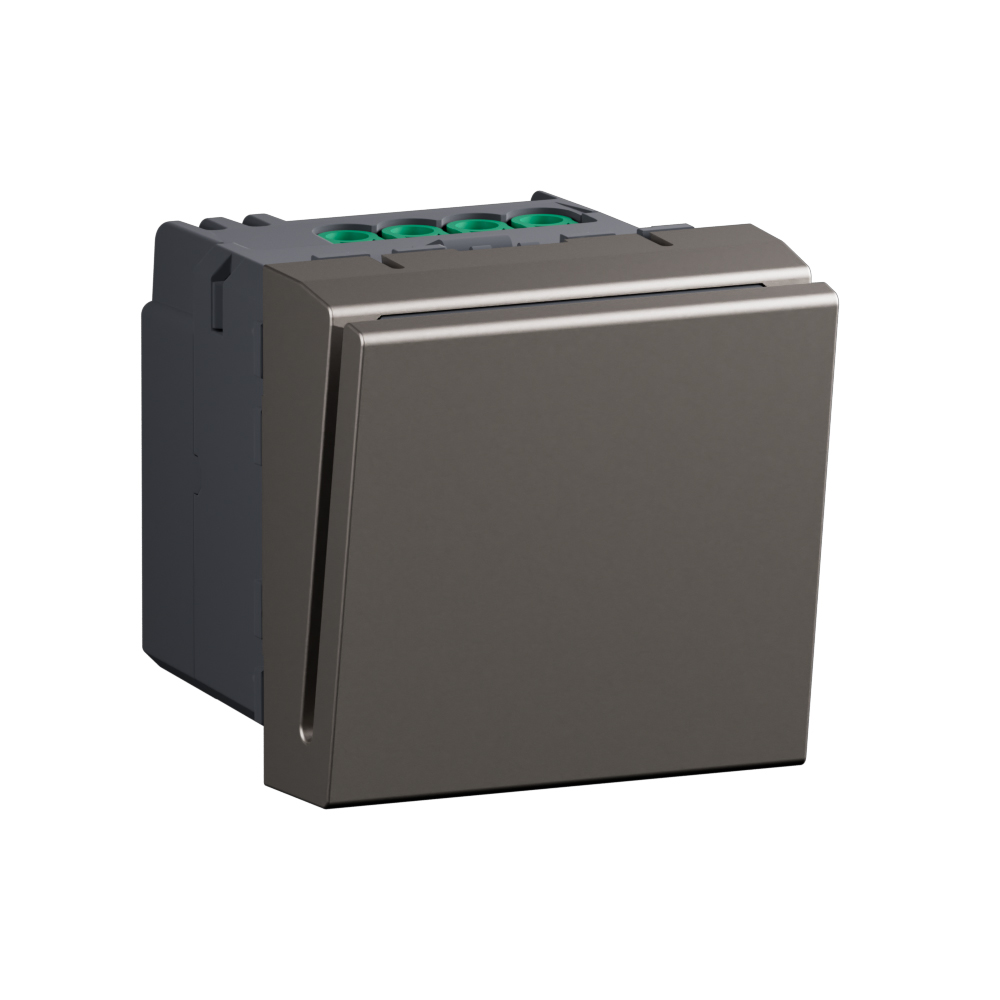

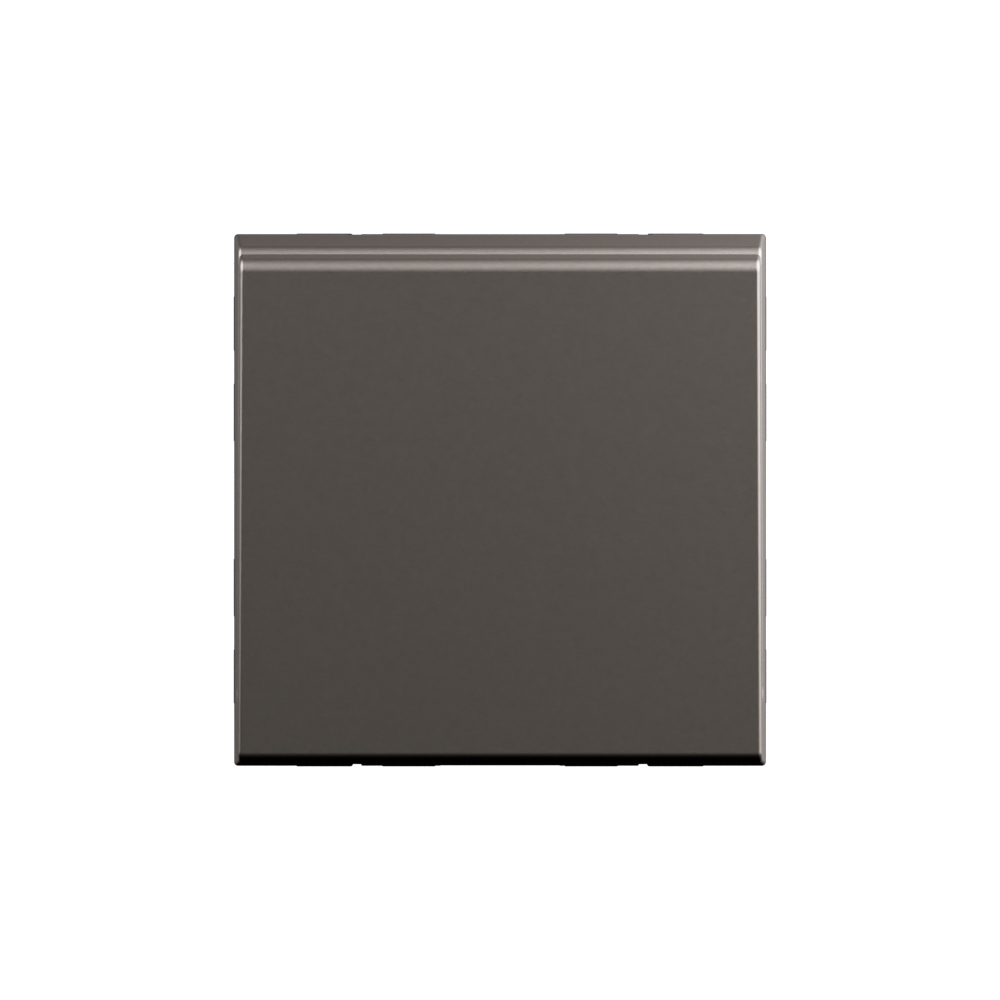

Arteor Advance - 230V mechanical keycard matt titanium - 250V AC 10A hotel room master switch - Energy saving 30s delay off

Arteor Advance Legrand

Arteor Advance - 230V mechanical keycard matt titanium - 250V AC 10A hotel room master switch - Energy saving 30s delay off

REF. AC27110MT EAN. 3414972820837
Allows turning on all appliances in a hotel room by inserting a card, improving energy efficiency. The 230V mechanical keycard in matt titanium offers a subtle light signature and modular 2-module design.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows turning on all appliances in a hotel room by inserting a card, improving energy efficiency. The 230V mechanical keycard in matt titanium offers a subtle light signature and modular 2-module design.

Product characteristics
  • 230V mechanical keycard switch enabling centralized control of room loads (lighting, AC, power) via card insertion
  • Matt titanium finish providing a smooth, contemporary aesthetic consistent with Arteor Advance hotel room designs
  • Modular 2-module device (45.1x45.1mm) with snap-in mounting for fast installation in standard module frames
  • Improves energy efficiency by disconnecting non-essential circuits when the keycard is removed, with an approximate 30s time delay
  • Rated 250V AC, 10A with screwed terminals for 0.75mm² to 1.5mm² flexible or rigid conductors, IP20 IK02, for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Easy to install
Usage
  • Time delay of approximately 30 sec. After card removal
Avantages
  • Features a subtle light signature providing a practical and stylish interface for hotel guests
  • Titanium with a smooth matt aspect
  • Modular

Technical characteristics

Wiring system Other
Method of operation Key
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 2
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Colour of switch operator Titanium
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 43.1 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
