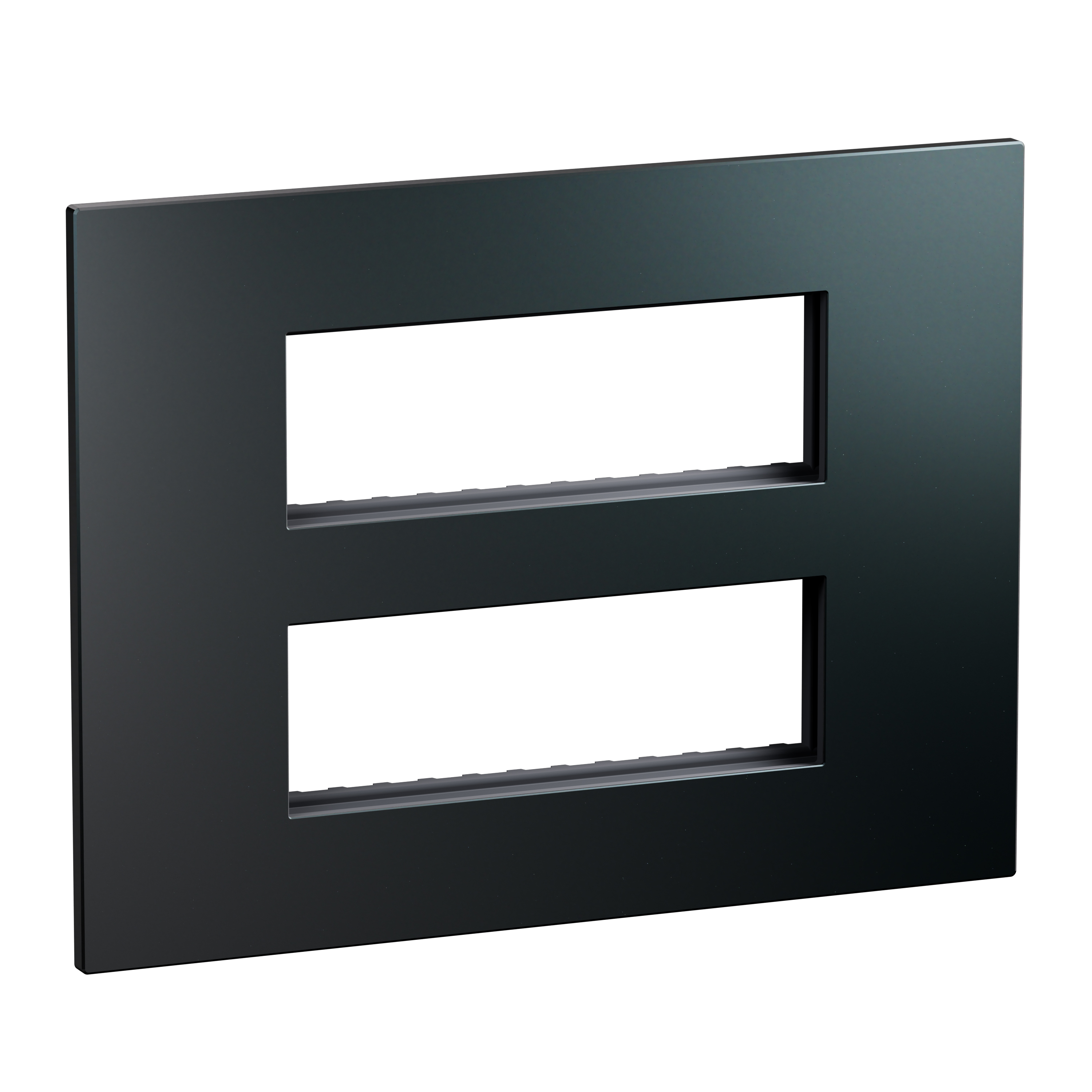

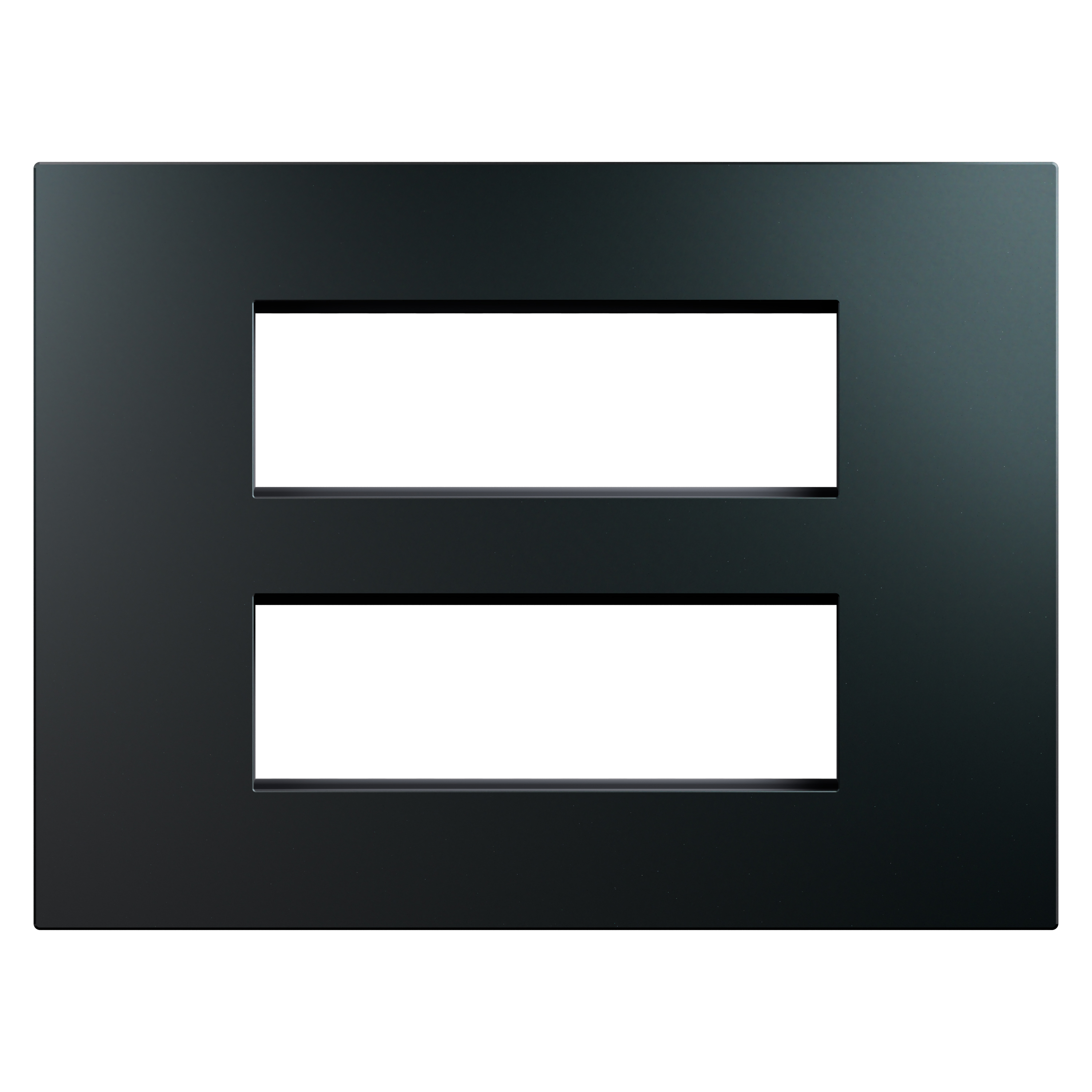

Arteor Advance - 2 x 6M BS plate+frame midnight blue - 2 x 6 modules square configuration - Real aluminum matt finish

Arteor Advance Legrand

Arteor Advance - 2 x 6M BS plate+frame midnight blue - 2 x 6 modules square configuration - Real aluminum matt finish

REF. AC1209NB EAN. 3414972739498
This 2x6M BS plate and frame in midnight blue offers refined, square-format modularity for flexible configurations. Its real plain aluminum, matt lacquered finish ensures long-term aesthetics against daily wear and sunlight.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x6M BS plate and frame in midnight blue offers refined, square-format modularity for flexible configurations. Its real plain aluminum, matt lacquered finish ensures long-term aesthetics against daily wear and sunlight.

Product characteristics
  • 2x6-module BS cover frame providing high-capacity modular configuration for domestic switching devices
  • Midnight blue lacquered matte finish for a refined, contemporary aesthetic in technical interiors
  • Front plates manufactured from real plain aluminum for robust mechanical strength and premium metal feel
  • Square geometry enabling modularity and flexible arrangement of mechanisms within the frame
  • Horizontal flush-mounted metal frame with snap fastening, 237.5mmx178mmx8.5mm, halogen free and suitable for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
