Arteor Advance - 2 x 6M BS plate+frame frosted white - 2 x 6 modules square format - Crystal polycarbonate matt frosted white

Arteor Advance Legrand

Arteor Advance - 2 x 6M BS plate+frame frosted white - 2 x 6 modules square format - Crystal polycarbonate matt frosted white

REF. AC1209FW EAN. 3414972739375

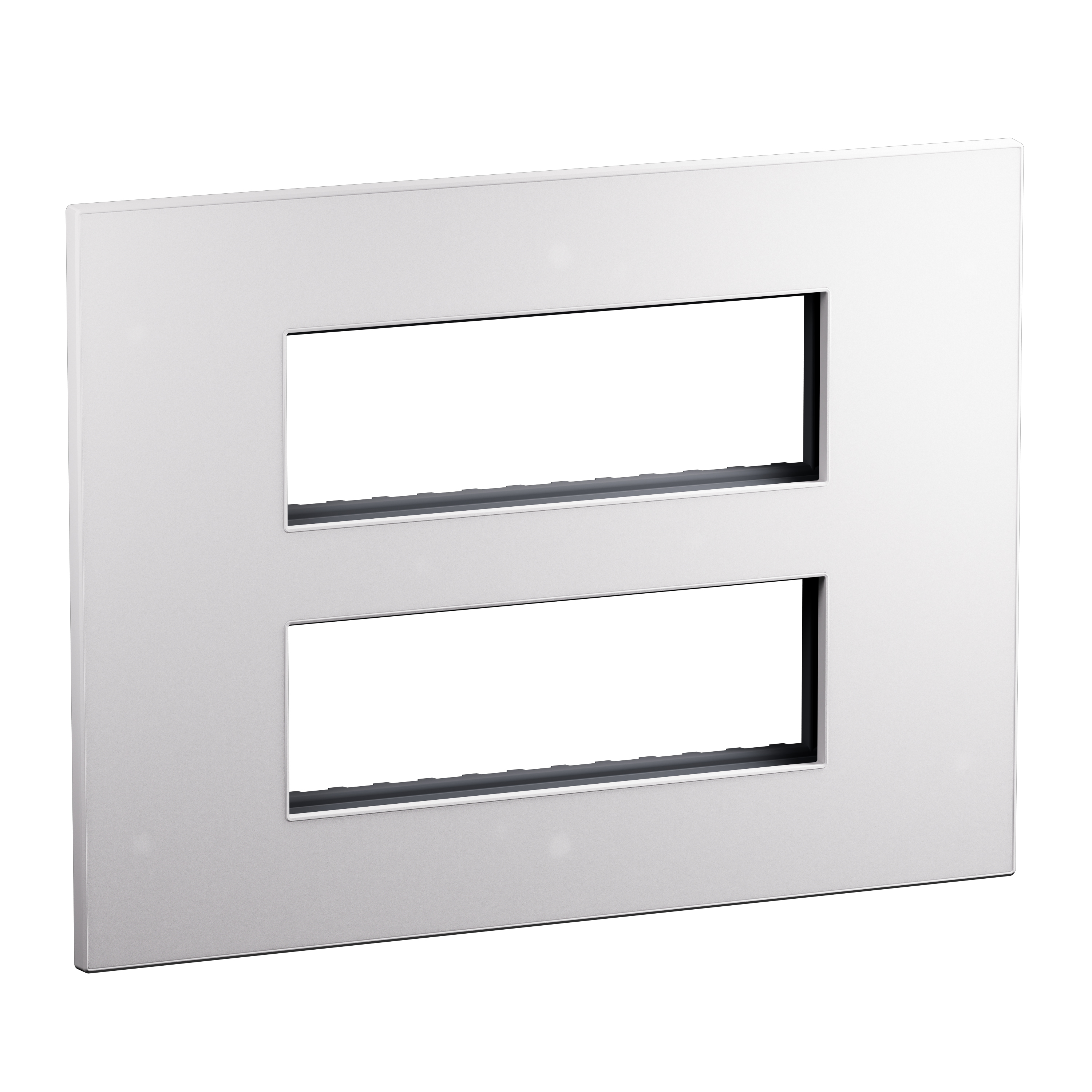

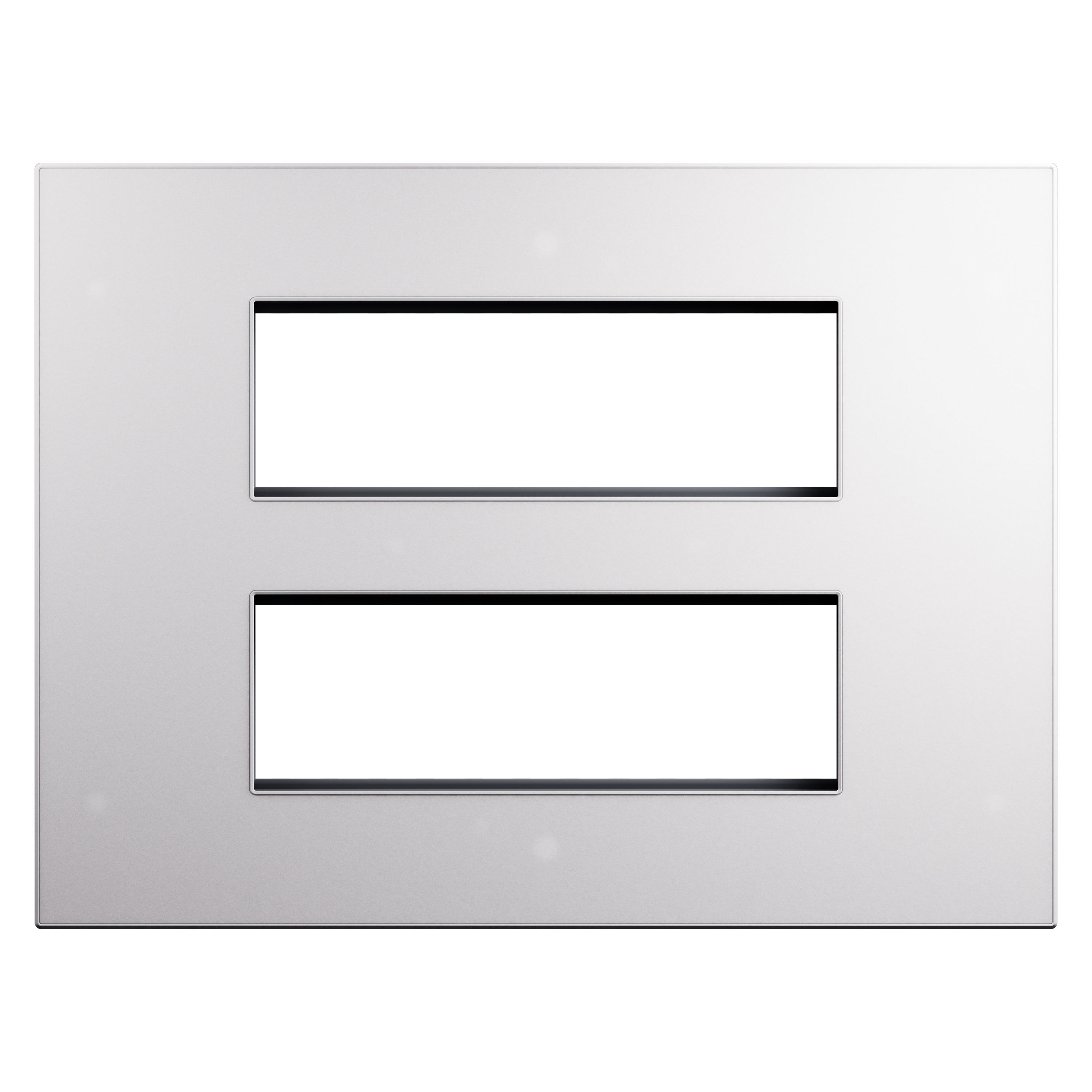

The 2x6M BS plate+frame frosted white is a refined, square cover frame offering 2x6-module capacity for modular configurations. Its crystal polycarbonate with frosted white translucence ensures long-term aesthetics.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2x6M BS plate+frame frosted white is a refined, square cover frame offering 2x6-module capacity for modular configurations. Its crystal polycarbonate with frosted white translucence ensures long-term aesthetics.

Product characteristics
  • 2x6-modules BS cover plate and frame for domestic switching devices, enabling high-density horizontal configurations
  • Frosted white, matt lacquered finish for reduced glare and refined visual integration with modern interiors
  • Crystal polycarbonate thermoplastic plate, halogen free, offering high dimensional stability and long-term aesthetic durability
  • Square format frame providing modularity and flexible configuration of mechanisms within a compact footprint
  • Flush-mounted, snap-on installation with integrated adjuster for precise wall alignment; dimensions 237.5x178x8.5mm, IK02 impact resistance, operating temperature -5-35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and white translucence
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
