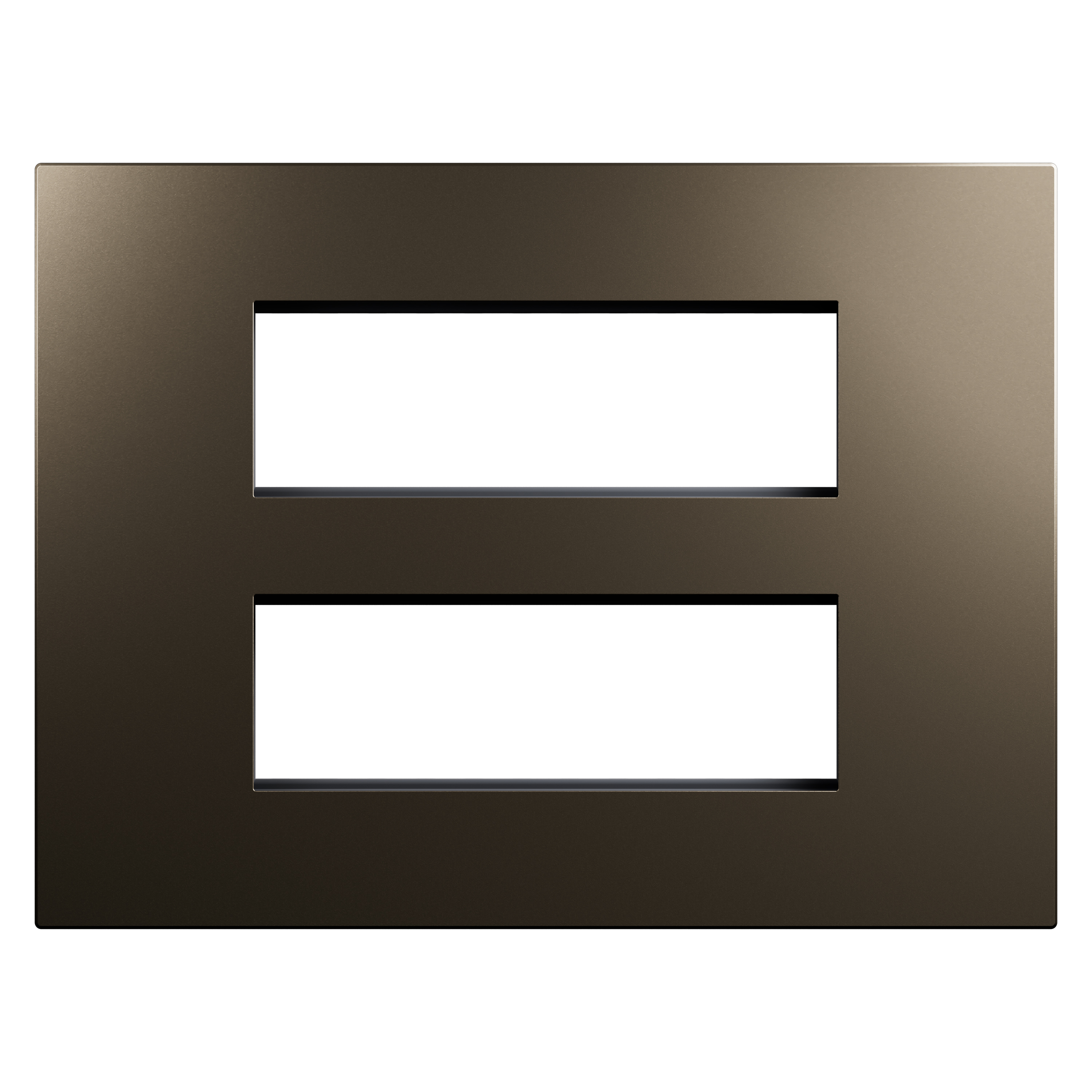

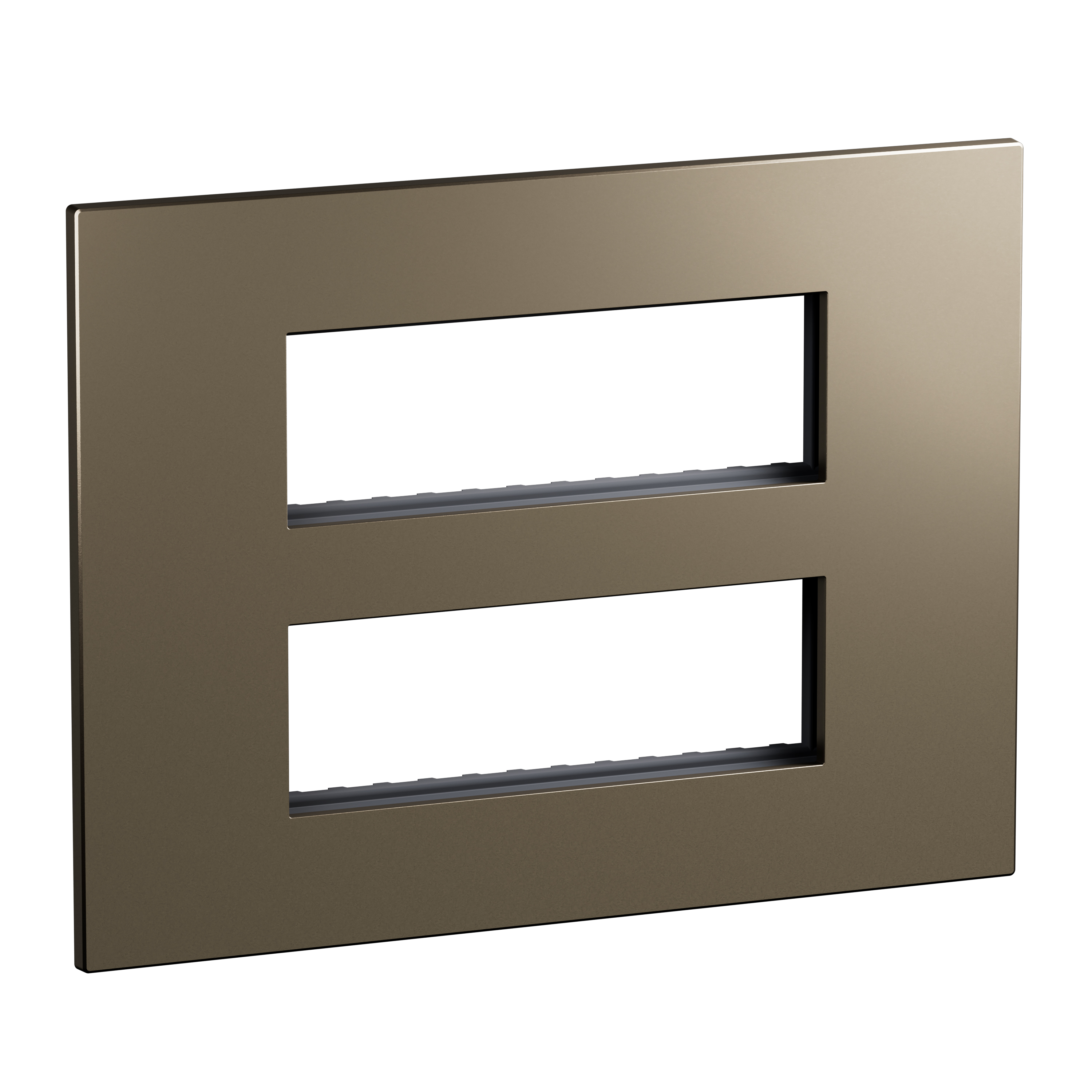

Arteor Advance - 2 x 6M BS plate+frame dark bronze - 2x6 module square cover frame - Matt lacquered thermoplastic, halogen free

Arteor Advance Legrand

Arteor Advance - 2 x 6M BS plate+frame dark bronze - 2x6 module square cover frame - Matt lacquered thermoplastic, halogen free

REF. AC1209DB EAN. 3414972922043
The 2x6M BS plate+frame dark bronze is a matt, lacquered thermoplastic cover frame with 2x6-module capacity in a compact square configuration. Its deep bronze finish and snap-on flush mounting ensure precise installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2x6M BS plate+frame dark bronze is a matt, lacquered thermoplastic cover frame with 2x6-module capacity in a compact square configuration. Its deep bronze finish and snap-on flush mounting ensure precise installation.

Product characteristics
  • 2x6-module BS cover frame providing 2 gangs with 6 modules each for high-density domestic switching configurations
  • Dark bronze lacquered, matt surface finish delivering a deep, classic aesthetic aligned with Arteor Advance minimalist design
  • Plate and frame manufactured from thermoplastic polycarbonate, halogen free for enhanced mechanical strength and safety
  • Square, horizontal flush-mounted geometry (237.5x178x8.5mm) enabling modularity and compact wall integration
  • Snap-on fastening with integrated adjuster ensures precise, rigid wall installation for indoor applications within -5 to 35° C operating temperature
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
