Arteor Advance - 2 x 6M BS plate+frame brushed bronze - 2x6 modules horizontal/vertical - Matt lacquered brass - Square flush mounting

Arteor Advance Legrand

Arteor Advance - 2 x 6M BS plate+frame brushed bronze - 2x6 modules horizontal/vertical - Matt lacquered brass - Square flush mounting

REF. AC1209BB EAN. 3414973009972

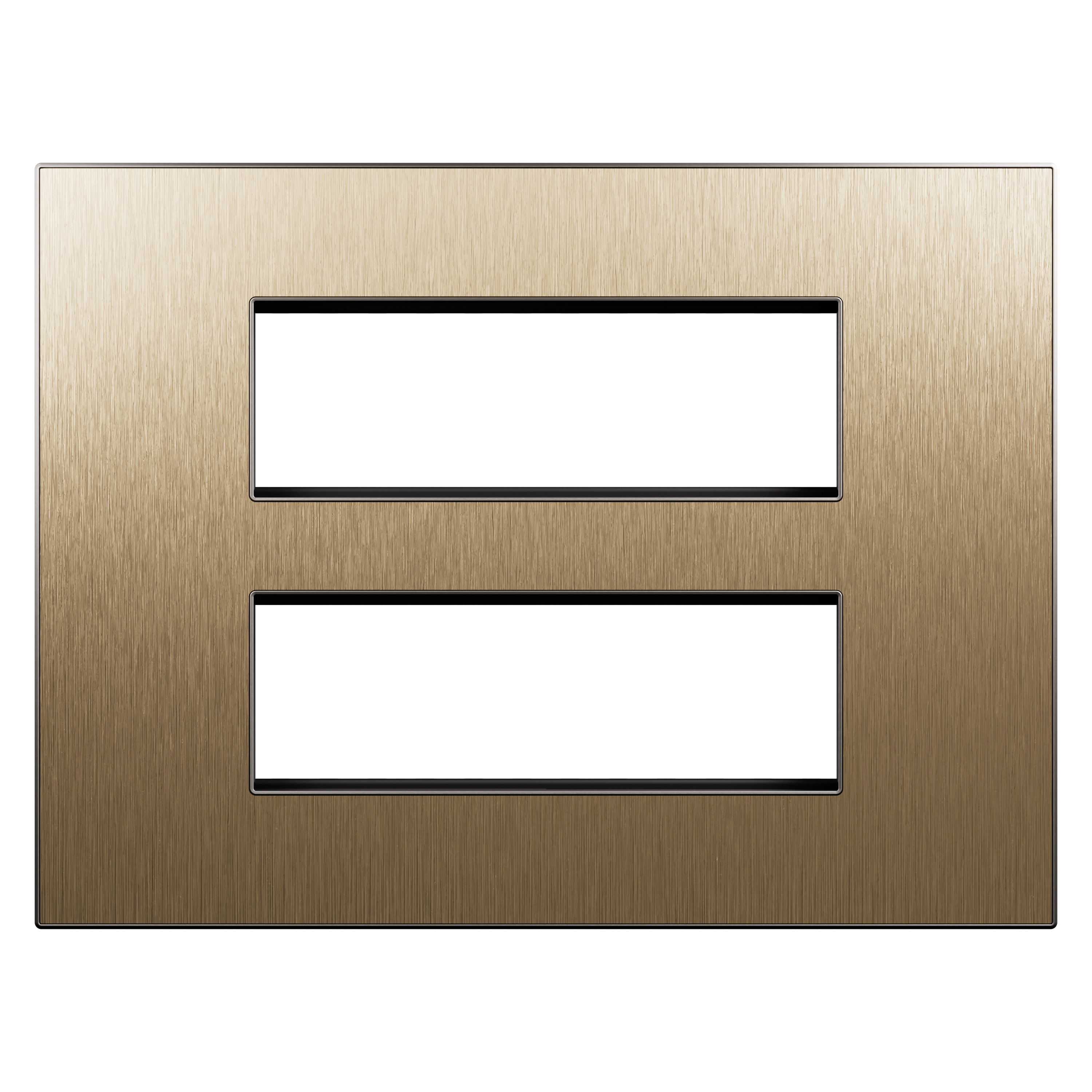

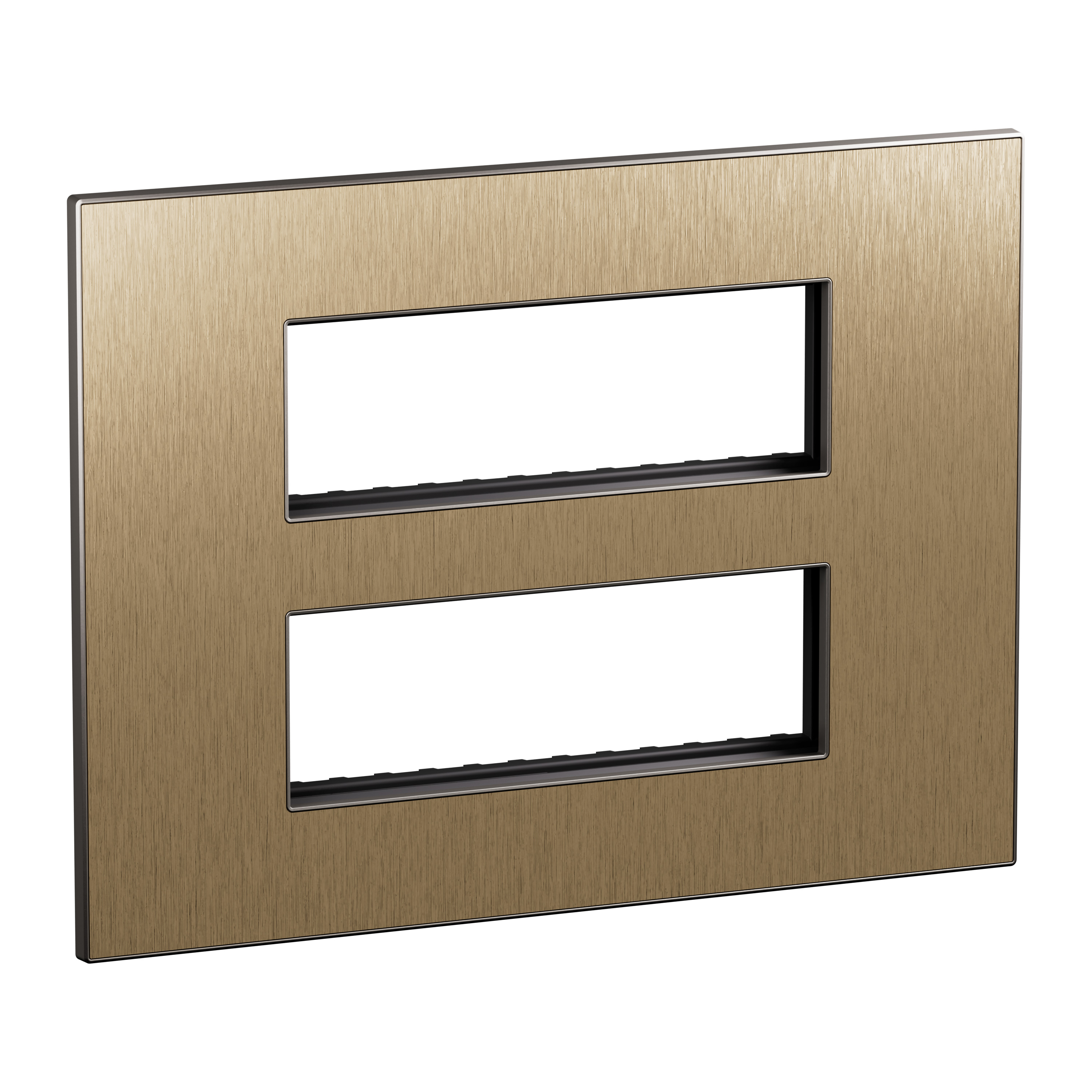

This 2x6M BS plate and frame in brushed bronze offers a minimalist square design with 2x6-module capacity. Its matt lacquered brass construction with snap fastening ensures robust flush mounting and perfectly aligned wall installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x6M BS plate and frame in brushed bronze offers a minimalist square design with 2x6-module capacity. Its matt lacquered brass construction with snap fastening ensures robust flush mounting and perfectly aligned wall installation.

Product characteristics
  • 2x6-module BS cover frame enabling high-density horizontal configurations for domestic switching devices
  • Brushed bronze, matt lacquered brass plate delivering a classic, minimalist aesthetic for premium interiors
  • Metal plate and frame construction in brass, halogen free, ensuring robust mechanical performance and safety
  • Square, flush-mounted design with snap fastening for precise alignment and modular flexibility in compact layouts
  • Integrated adjuster for perfect wall installation; recommended for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • The bronze finish with the brushed effect highlights a classic character
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
