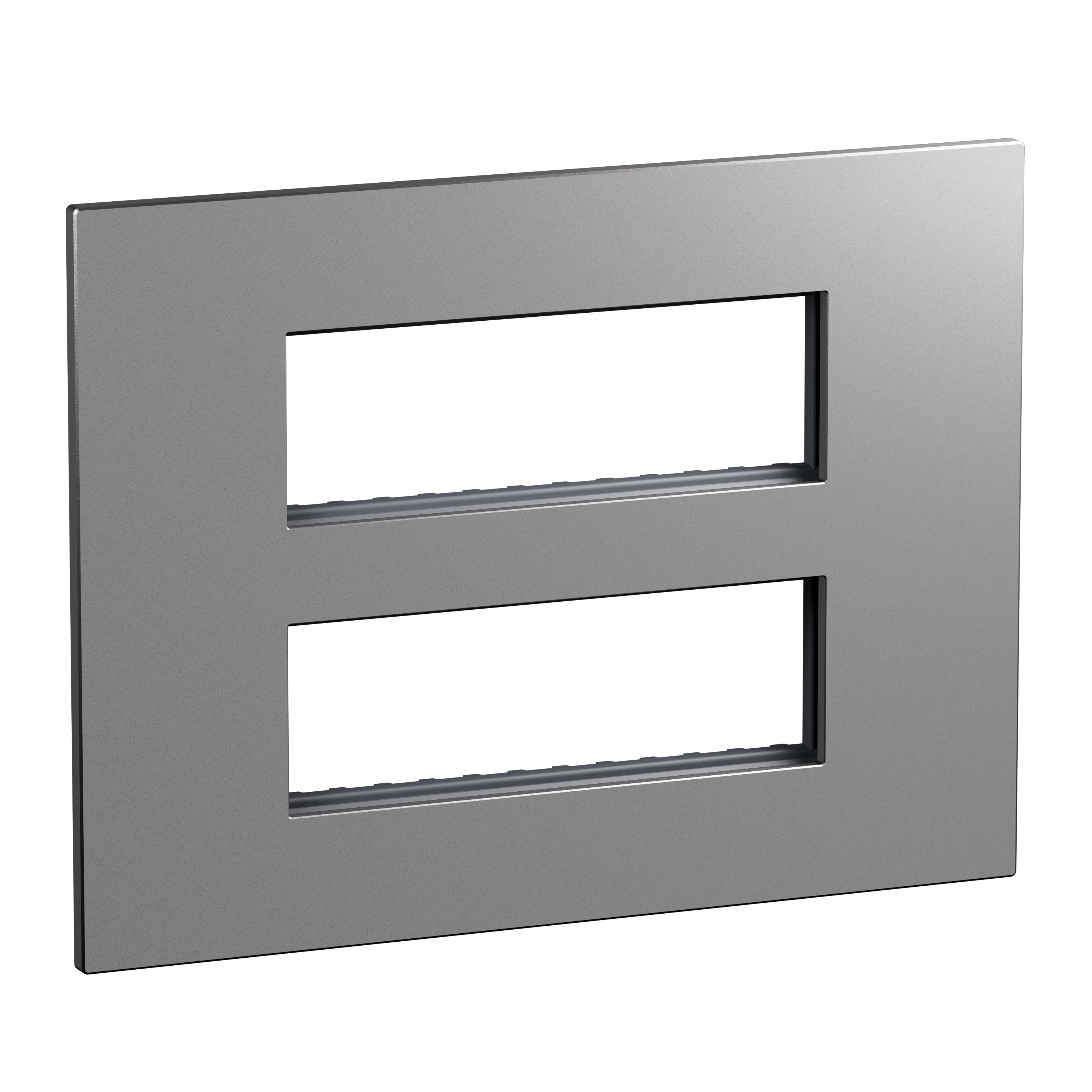

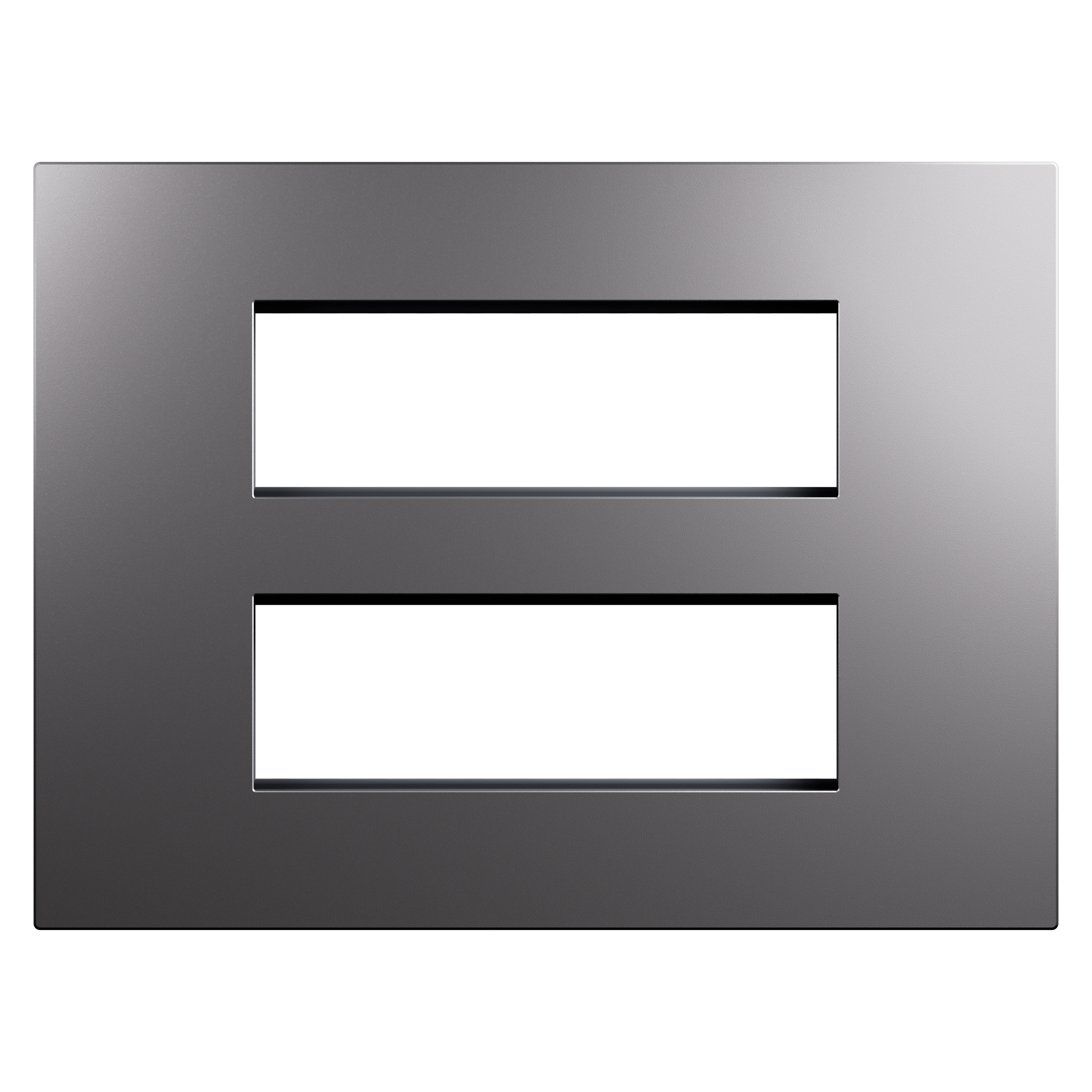

Arteor Advance - 2 x 6 Modules Plate+Frame Solid Aluminum - Matt Lacquered Metal Cover Frame - Horizontal Flush-Mounted 8-Module

Arteor Advance Legrand

Arteor Advance - 2 x 6 Modules Plate+Frame Solid Aluminum - Matt Lacquered Metal Cover Frame - Horizontal Flush-Mounted 8-Module

REF. AC1210SA EAN. 3414972739726
This 2x6 modules plate+frame in solid aluminum offers refined square design, muted reflection, and a cool metal feel. Its matt lacquered finish and snap fastening ensure precise flush-mounted installation and perfect wall alignment.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x6 modules plate+frame in solid aluminum offers refined square design, muted reflection, and a cool metal feel. Its matt lacquered finish and snap fastening ensure precise flush-mounted installation and perfect wall alignment.

Product characteristics
  • Eight-module cover frame providing 2x6-module capacity for high-density domestic switching configurations
  • Solid aluminum construction with lacquered, matt surface for enhanced mechanical robustness and muted reflection
  • Plates are made of real plain aluminum, halogen free and metal throughout for consistent appearance and durability
  • Square, horizontal 2-gang design (237.5x178x8.5mm) enabling modularity and flexibility in a compact footprint
  • Flush-mounted, snap-on plate and frame assembly with integrated adjuster for precise indoor wall installation within -5 to 35° C operating range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
