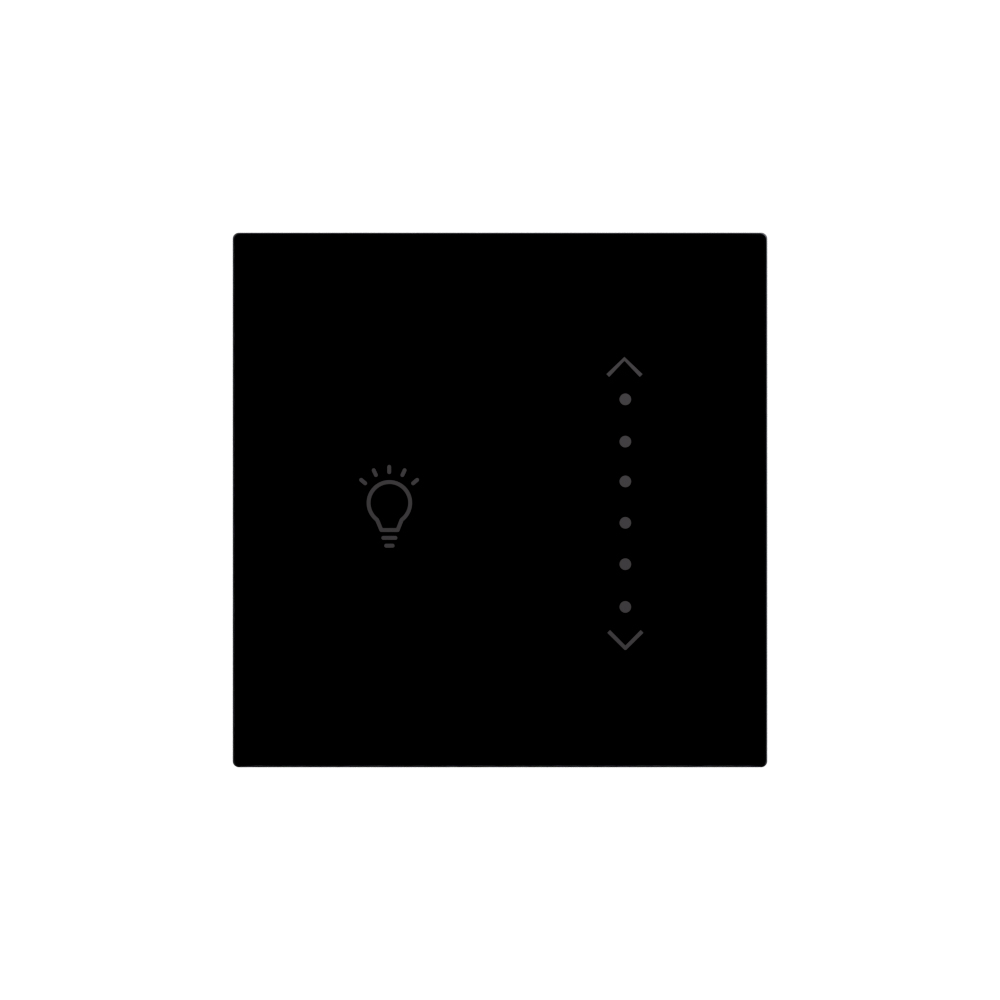

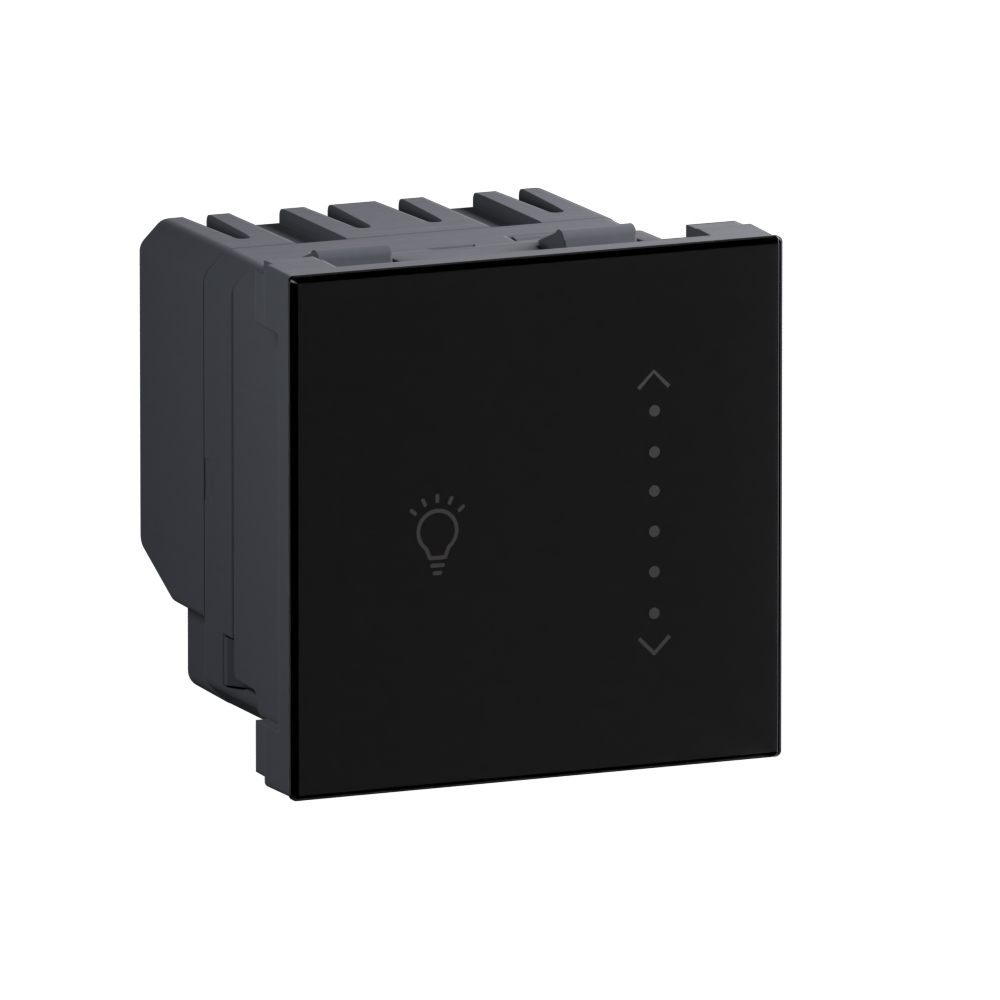

Arteor Advance - 2 modules tactile sliding dimmer 5-300W or 5-75W LED with neutral matt black - Touch control

Arteor Advance Legrand

Arteor Advance - 2 modules tactile sliding dimmer 5-300W or 5-75W LED with neutral matt black - Touch control

REF. AC24106MB EAN. 3414972753067
Allows adjustment of light output with tactile touch control. Handles 5W to 300W resistive or 5W to 75W LED loads at 230V to 240V AC with neutral. Matt black 2 modules design with screw terminals for indoor dimming.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows adjustment of light output with tactile touch control. Handles 5W to 300W resistive or 5W to 75W LED loads at 230V to 240V AC with neutral. Matt black 2 modules design with screw terminals for indoor dimming.

Product characteristics
  • Two-module dimmer mechanism for modular installations, 45x45mm, for 230V to 240V AC lighting circuits
  • Matt black lacquered thermoplastic front for a deep, non-reflective finish matching Arteor Advance aesthetics
  • Touch-control tactile sliding dimmer for intuitive adjustment of dimmable LED and resistive loads
  • Power range 5W to 300W resistive or 5VA to 75VA LED with neutral, supporting leading-edge and trailing-edge phase-cut dimming
  • Compatible with 40mm flush-mount boxes (minimum built-in depth 35mm) for standard recessed installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Tactile dimmer for intuitive light control
Avantages
  • Compatibility with the new generation of LED
  • Deep black with a smooth matte finish

Technical characteristics

Assembly arrangement Basic element with housing top
Method of operation Touch control button
Number of modules (module system) 2
Number of units 1
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer Yes
Type of load Resistive load
Substation input Yes
Light value memory No
Applicable with button No
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Min. brightness controllable No
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage (Min-Max) 230-240 V
Frequency (Min-Max) 50-60 Hz
Control voltage (Min-Max) 230-240 V
Nominal power resistive load (Min-Max) 5-300 W
Nominal power capacitive load (Min-Max) 5-75 VA
Connection type Screwed terminal
Cable section (Min-Max) 1-4 mm²
Device width 45 mm
Device height 45 mm
Device depth 41.45 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 32.95 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Other
