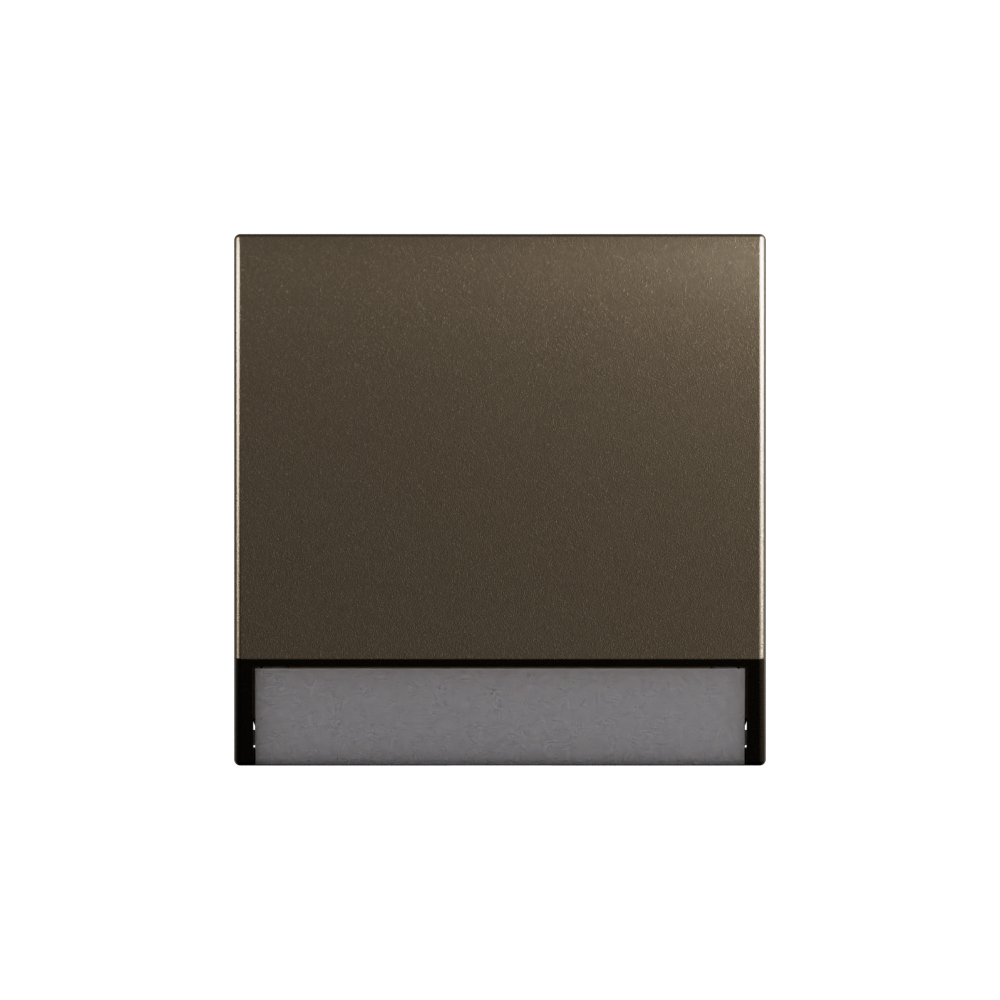

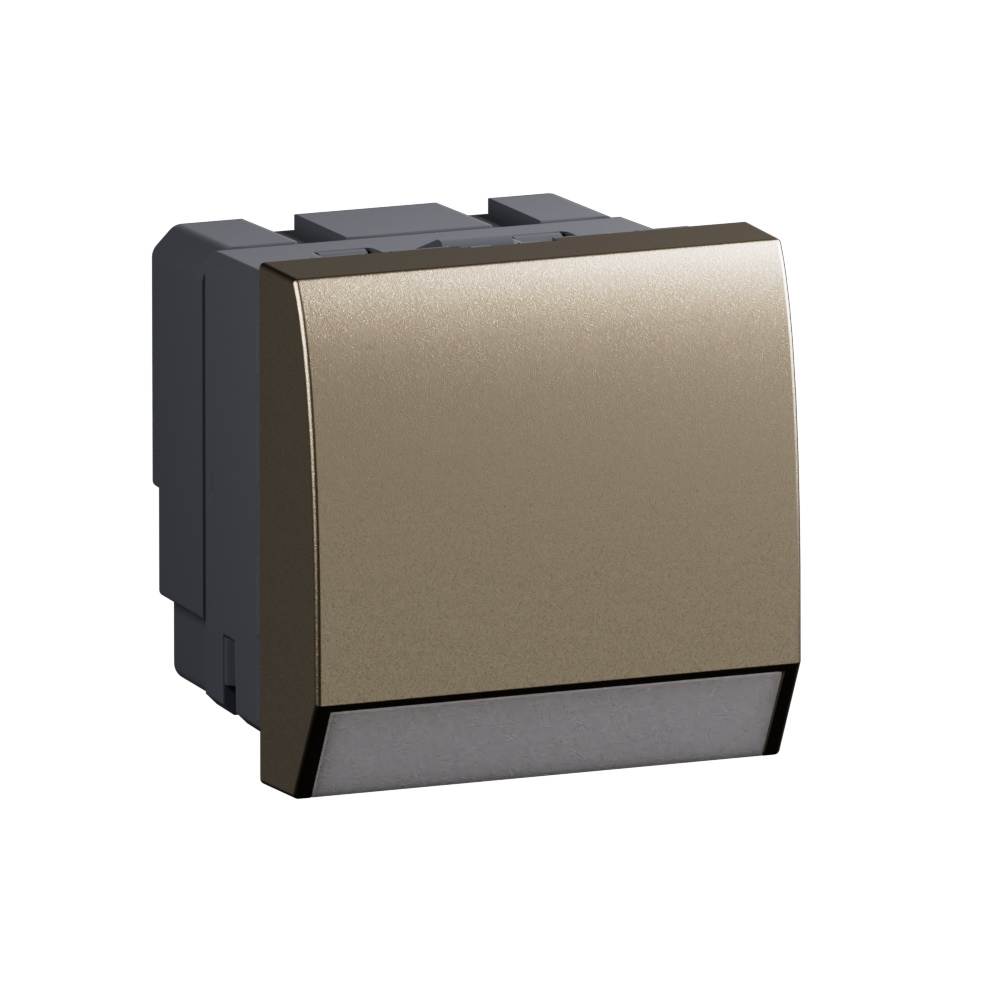

Arteor Advance - 2 modules skirting light with LED dark bronze - Orientation luminaire - 1W white LED, 100V to 240V AC - IP20

Arteor Advance Legrand

Arteor Advance - 2 modules skirting light with LED dark bronze - Orientation luminaire - 1W white LED, 100V to 240V AC - IP20

REF. AC650DB EAN. 3414972928540
Installed at the base of walls, this 2-module 230V skirting light delivers efficient white LED orientation lighting. Its dark bronze finish, IP20 rating, and halogen-free plastic housing ensure reliable indoor use.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Installed at the base of walls, this 2-module 230V skirting light delivers efficient white LED orientation lighting. Its dark bronze finish, IP20 rating, and halogen-free plastic housing ensure reliable indoor use.

Product characteristics
  • Two-module 230V AC skirting orientation luminaire for wall-duct mounting, operating on 100-240V, 50-60Hz
  • Dark bronze housing and cover providing a deep, architectural finish aligned with Arteor Advance aesthetics
  • Supplied with a non-exchangeable white LED light source (1W, 2700 to 3700K) with diffuser optics for indirect, symmetric light
  • Low 1W system power with constant light output (CLO) for improved energy efficiency in continuous or night-light applications
  • Marked screw terminals (2 poles, 1 to 4mm², flexible or rigid conductors) with mandatory neutral for fast, error-free wiring
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Deep bronze finish evoking classic aesthetic

Technical characteristics

Lamp type LED not exchangeable
With light source Yes
Suitable for number of light sources 1
Lamp holder None
Housing material Plastic
Housing colour Bronze
Type of covering Lamella
Material cover Plastic, structured
Suitable for surface mounting Yes
Suitable for built-in mounting Yes
With built-in installation box No
Adjustable No
Voltage type AC
Nominal voltage (Min-Max) 100-240 V
Type of control gear Not required
With control gear No
Exchangeable control gear No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Touch and Dim No
Dimming with push-button No
Dimming Zigbee No
Light distributor Diffuser lens/optic/panel
Light distribution Symmetric
Light outlet Indirect
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Suitable for lamp power (Min-Max) 1-1 W
Max. system power 1 W
Operation by Bluetooth No
Colour of light White
Compatible with Casambi No
Colour temperature (Min-Max) 2700-3700 K
Constant light output (CLO) Yes
Width 45 mm
Height/depth 45 mm
Length 46 mm
Built-in height/depth 29.9 mm
Number of poles 2
Conductor cross section 4 mm²
Connection type Screwed terminal
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Mounting method Wall duct
Contains Batteries No
