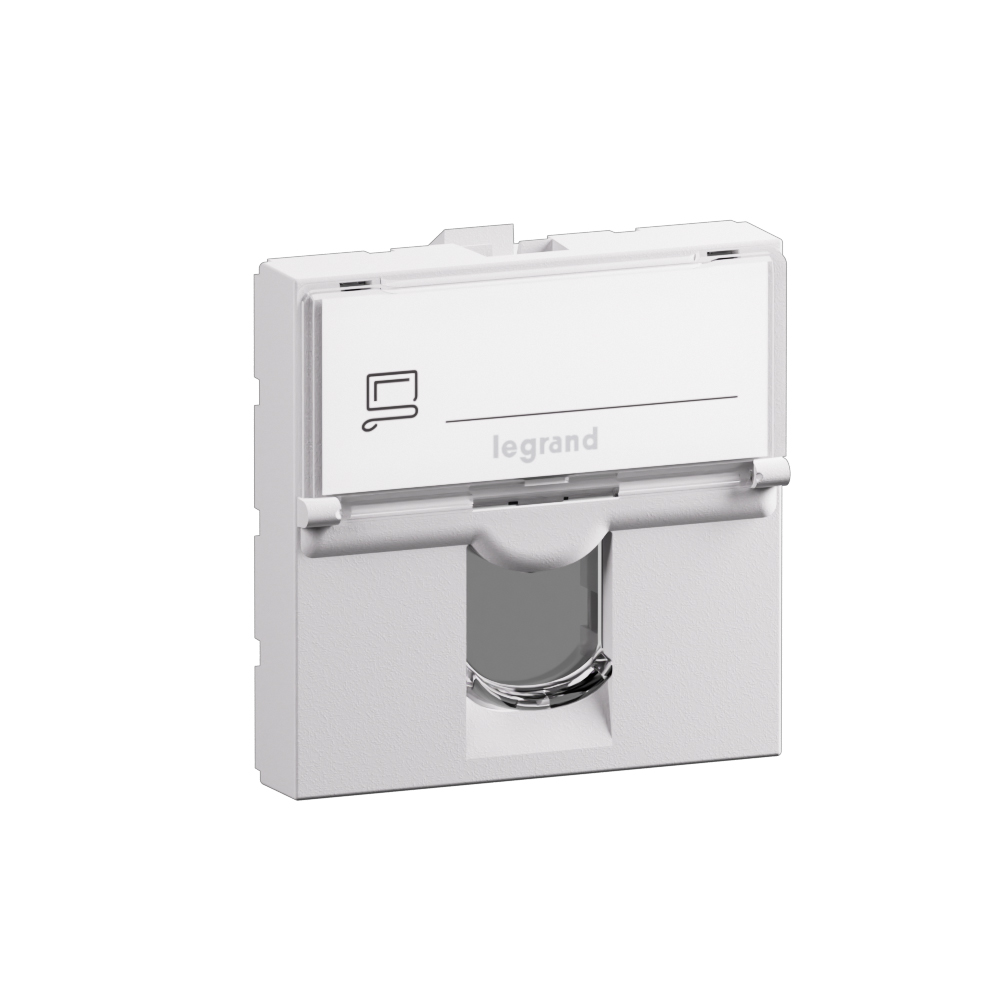

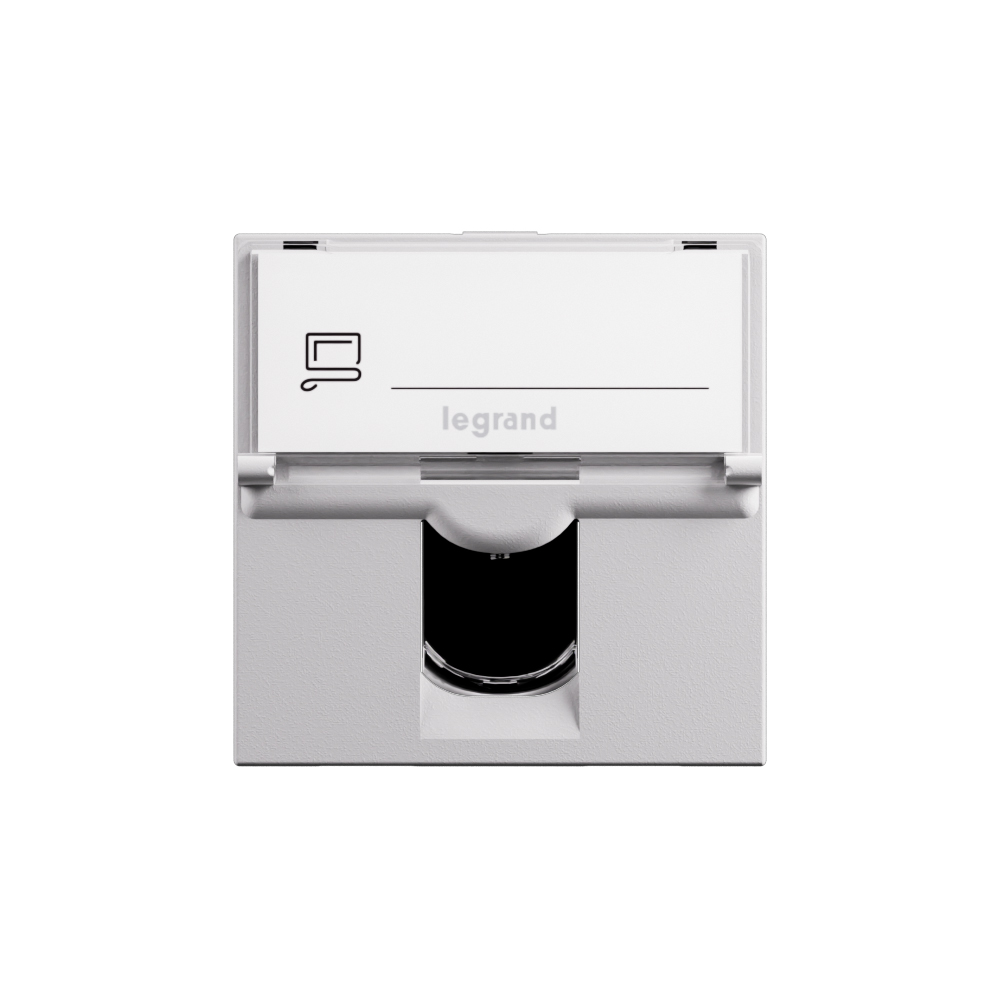

Arteor Advance - 2 modules single Systimax adapter matt white - Central cover plate for communication outlets - Flush-mounted

Arteor Advance Legrand

Arteor Advance - 2 modules single Systimax adapter matt white - Central cover plate for communication outlets - Flush-mounted

REF. AC173MW EAN. 3414972740616
Faceplate for 2 modules single Systimax adapter in matt white halogen-free thermoplastic, lacquered for durable aesthetics. Central cover plate with straight outlet and transparent indication plate. Snap fastening and flush-mounted design
Download product sheet
Finition :
Suitable for number of connectors :
You can only compare 4 products, you must remove 1 to add this one

Description

Faceplate for 2 modules single Systimax adapter in matt white halogen-free thermoplastic, lacquered for durable aesthetics. Central cover plate with straight outlet and transparent indication plate. Snap fastening and flush-mounted design

Product characteristics
  • Two-module central cover plate for single Systimax connector, 45mmx45mm, flush-mounted for communication outlets
  • Matt white thermoplastic (similar to RAL 9003) with lacquered, smooth, non-reflective finish for consistent panel aesthetics
  • Equipped with transparent indication plate for clear, durable port labeling in structured cabling installations
  • Compatible with single- and double-port data socket faceplates, enabling standardized identification across data outlets
  • Designed specifically for single Systimax connector integration with straight outlet direction and snap-on fastening for quick installation

The product's benefits

Avantages
  • Powdery white with a smooth matt aspect

Technical characteristics

Assembly arrangement Central cover plate
Utilization Other
Support ring No
With dust cover No
With hinged lid Yes
Outlet direction Straight
Imprintable label With indication plate
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
With buses/couplings No
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 20.5 mm
Min. depth of built-in installation box 30 mm
Built-in depth 9.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
