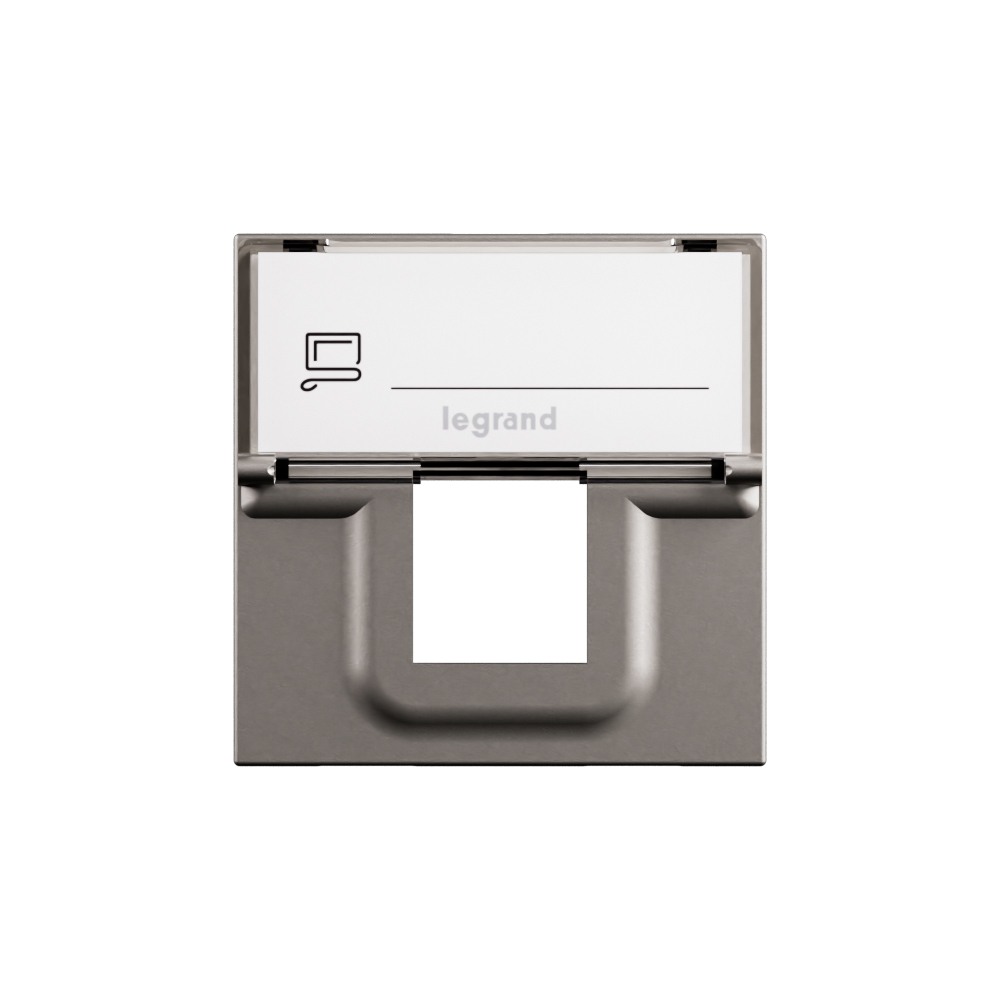

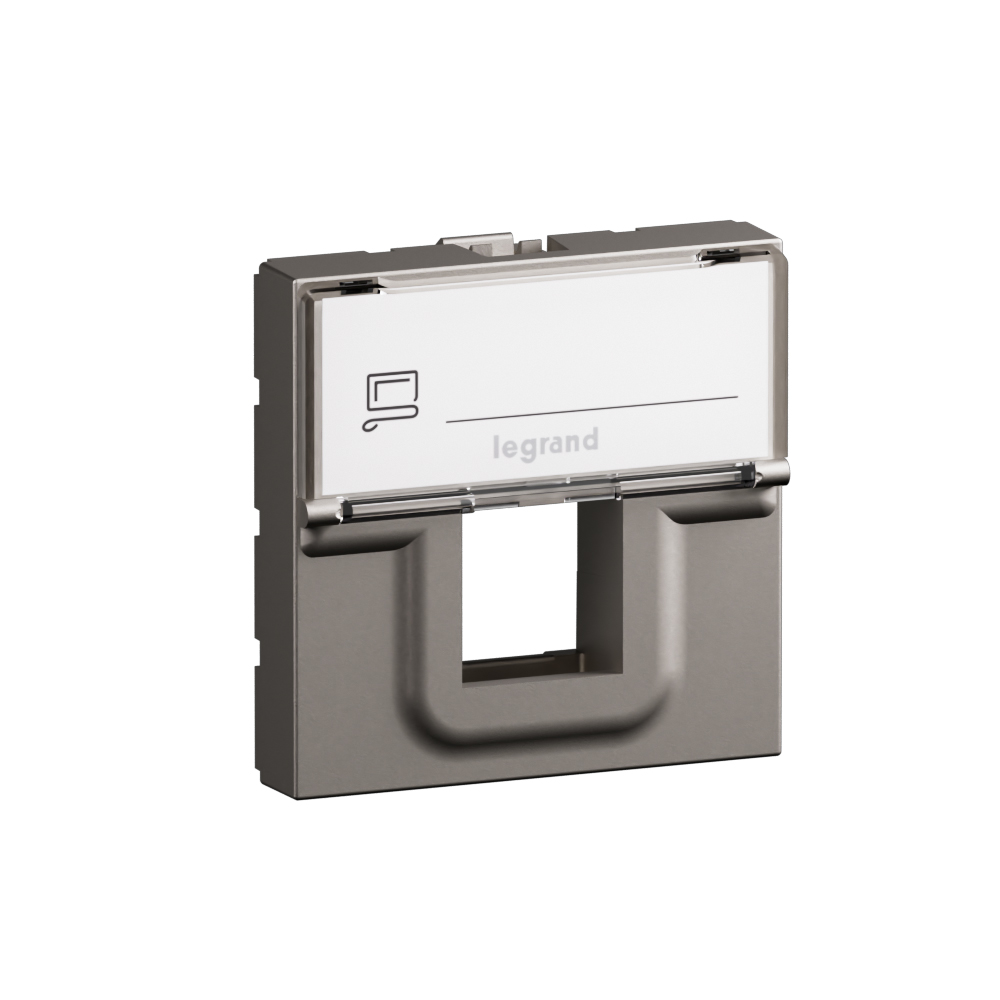

Arteor Advance - 2 modules single keystone adapter matt titanium - 2M single keystone faceplate - Matt titanium, flush-mounted, IP20

Arteor Advance Legrand

Arteor Advance - 2 modules single keystone adapter matt titanium - 2M single keystone faceplate - Matt titanium, flush-mounted, IP20

REF. AC170MT EAN. 3414972740401
Faceplate in matt titanium, 2 modules single keystone, ensures clean flush-mounted data connector integration. Its snap-engage fastening and 45x45mm format simplify installation. Equipped with an imprintable snap-in label holder.
Download product sheet
Finition :
Suitable for number of connectors :
You can only compare 4 products, you must remove 1 to add this one

Description

Faceplate in matt titanium, 2 modules single keystone, ensures clean flush-mounted data connector integration. Its snap-engage fastening and 45x45mm format simplify installation. Equipped with an imprintable snap-in label holder.

Product characteristics
  • Two-module single keystone adapter for communication data connectors, suitable for 1 connector in Arteor Advance installations
  • Matt titanium thermoplastic front with lacquered surface for a smooth, high-end metallic appearance
  • Equipped with snap-in transparent label holder in the intermediate ring for clear, durable port identification
  • Compatible with single and double-port data socket faceplates, enabling flexible structured cabling configurations
  • Designed for single Keystone format, flush-mounted installation (45x45x20.5mm), IP20, IK03

The product's benefits

Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Assembly arrangement Basic element with housing top
Utilization Mounting cover data connector
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint Yes
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 20.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 9.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
S000127779AR-00.pdf pdf (0.22 Mo)
