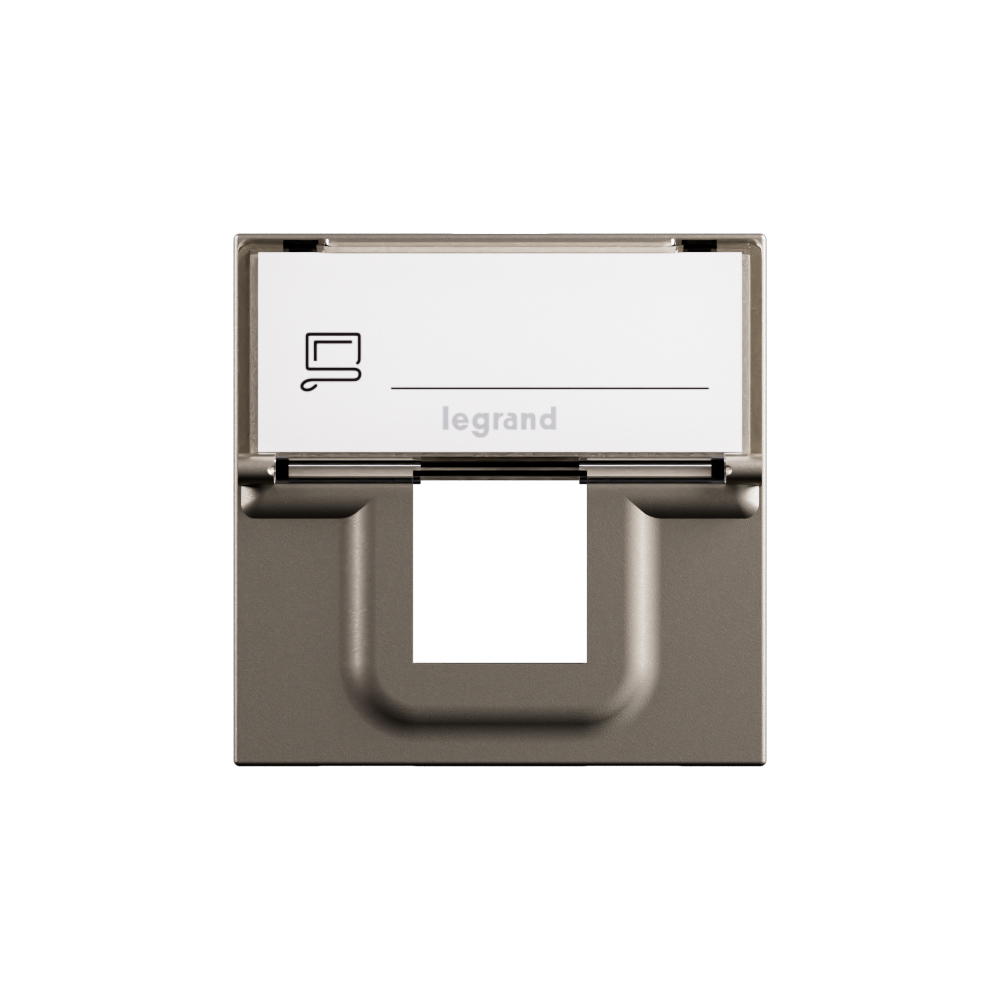

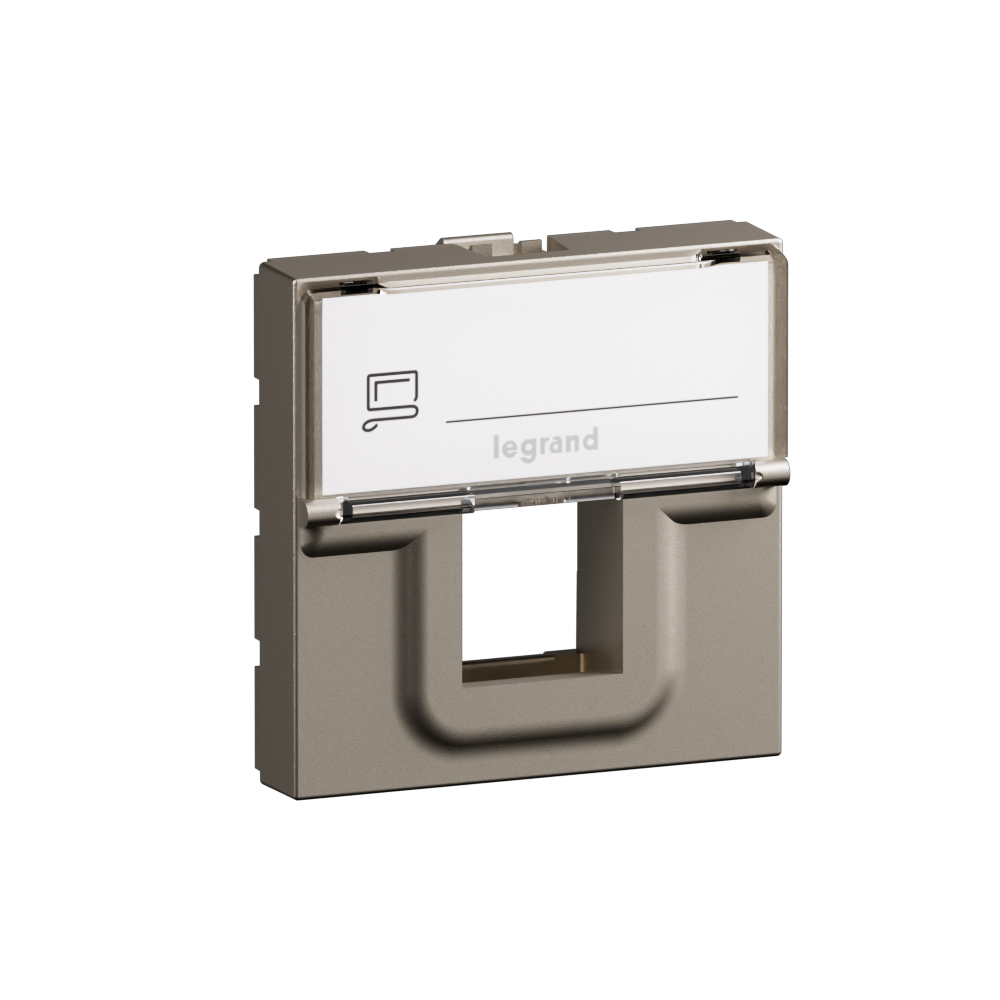

Arteor Advance - 2 modules single keystone adapter champagne - Flush-mounted plastic, halogen free - IP20, 45x45mm

Arteor Advance Legrand

Arteor Advance - 2 modules single keystone adapter champagne - Flush-mounted plastic, halogen free - IP20, 45x45mm

REF. AC170CH EAN. 3414972922289
Faceplate with 2 modules single keystone adapter in champagne finish ensures clean, flush-mounted data connector integration. Its matt lacquered thermoplastic body with IP20, IK03 ratings offers robust in-wall protection. Transparent label
Download product sheet
Finition :
Suitable for number of connectors :
You can only compare 4 products, you must remove 1 to add this one

Description

Faceplate with 2 modules single keystone adapter in champagne finish ensures clean, flush-mounted data connector integration. Its matt lacquered thermoplastic body with IP20, IK03 ratings offers robust in-wall protection. Transparent label

Product characteristics
  • Two-module single keystone adapter for communication/data connectors, 2M format, flush-mounted installation
  • Champagne (gold) lacquered matt thermoplastic finish matching Arteor Advance aesthetic
  • Equipped with transparent snap-in label holder in the intermediate ring for clear, imprintable port identification
  • Compatible with single- and double-port data socket faceplates for structured cabling outlets in communication networks
  • Designed for single Keystone format, 1 connector, straight outlet direction, IP20, IK03, 45x45x20.5mm

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Assembly arrangement Basic element with housing top
Utilization Mounting cover data connector
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint Yes
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 20.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 9.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
