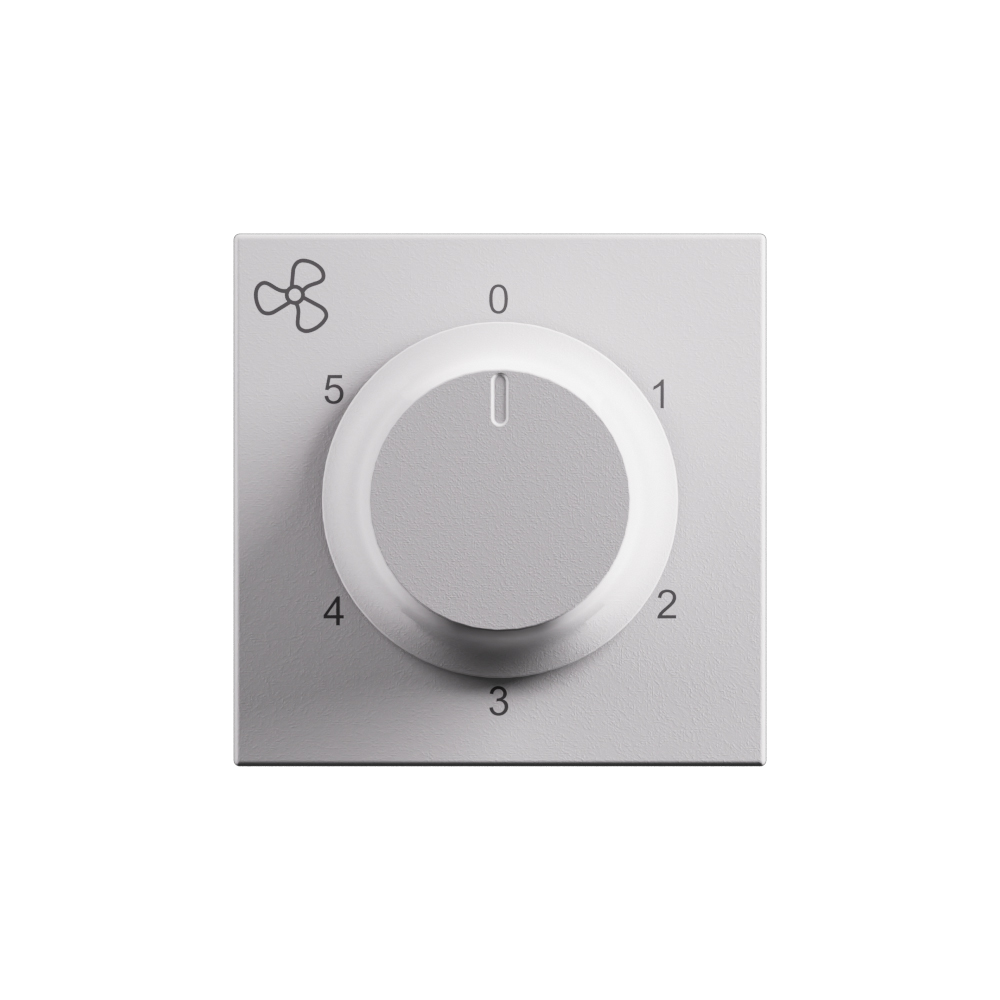

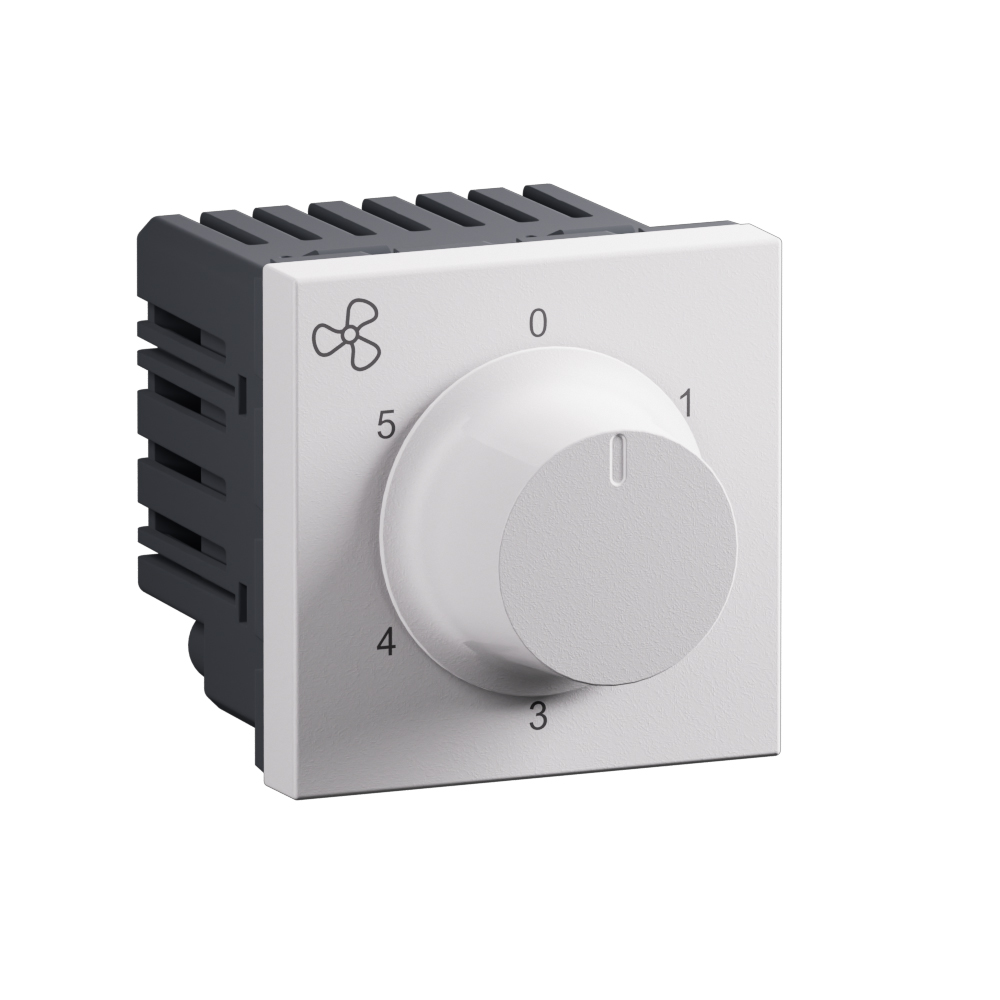

Arteor Advance - 2 modules rotary fan controller 120W 5 steps matt white - Flush-mounted 220-240V AC - Indoor IP20 matt white finish

Arteor Advance Legrand

Arteor Advance - 2 modules rotary fan controller 120W 5 steps matt white - Flush-mounted 220-240V AC - Indoor IP20 matt white finish

REF. AC663MW EAN. 3414972769082
Allows control of single-phase indoor fan speed with a 2-module rotary controller rated 120W at 220V to 240V. It offers precise 5-step adjustment via a robust turn button, flush-mounted in matt white.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of single-phase indoor fan speed with a 2-module rotary controller rated 120W at 220V to 240V. It offers precise 5-step adjustment via a robust turn button, flush-mounted in matt white.

Product characteristics
  • Two-module rotary fan speed controller rated up to 120W for single-phase 220-240V applications
  • Matt white finish matching Arteor Advance aesthetics and providing a low-glare, powdery smooth surface
  • Five-step discrete speed control for precise fan airflow adjustment without stepless regulation
  • Flush-mounted mechanism with 45x45mm front dimensions and 33mm depth for standard wall boxes
  • IP20 indoor-rated device with turn-button operation and integrated switching contact for fan control
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Powdery white with a smooth matte finish

Technical characteristics

Mounting method Flush-mounted
Colour White
Output voltage (Min-Max) 220-240 V
Number of phases 1
Power control stepless No
Number of steps 5
Method of operation Turn button
Lighting None
Switching contact Yes
With temperature sensor No
Height 45 mm
Width 45 mm
Depth 33 mm
Degree of protection (IP) IP20
