Arteor Advance - 2 modules rotary fan controller 100W matt titanium - 1-phase 0.4A flush-mounted - 6-step speed control - IP20 indoor

Arteor Advance Legrand

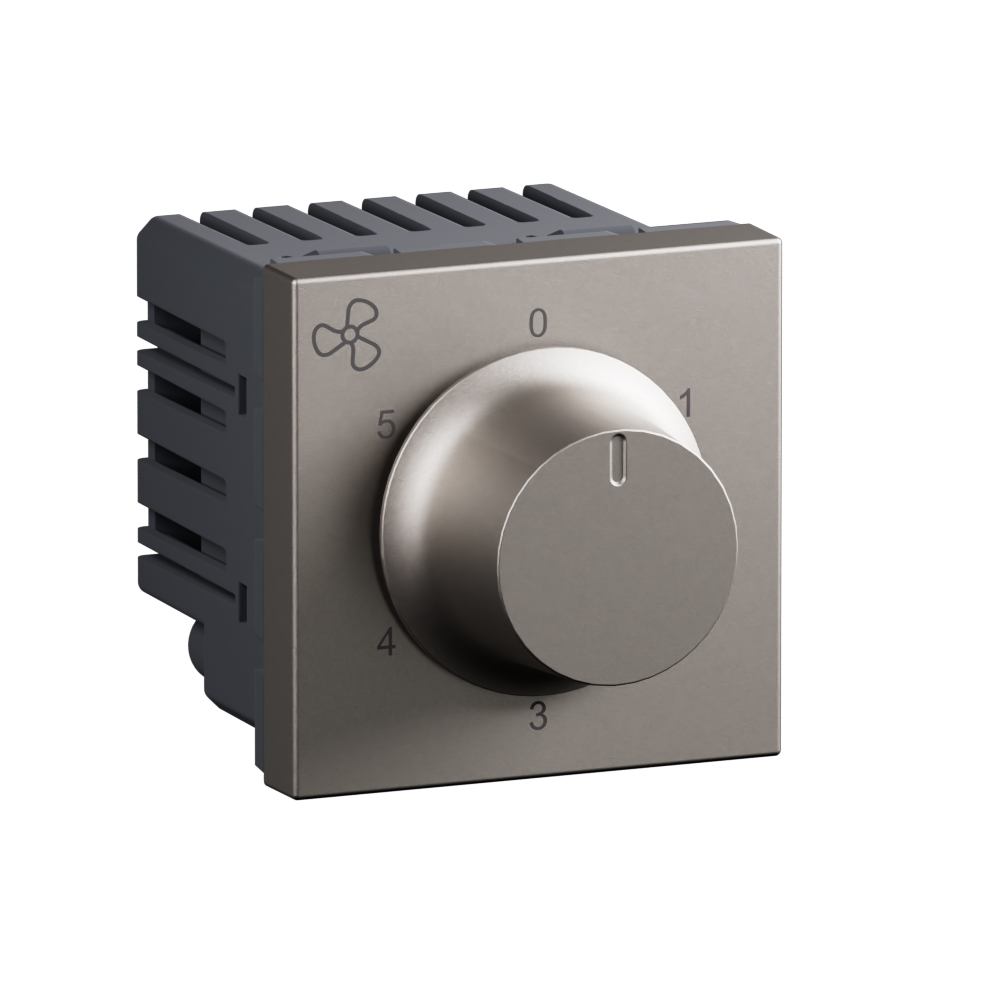

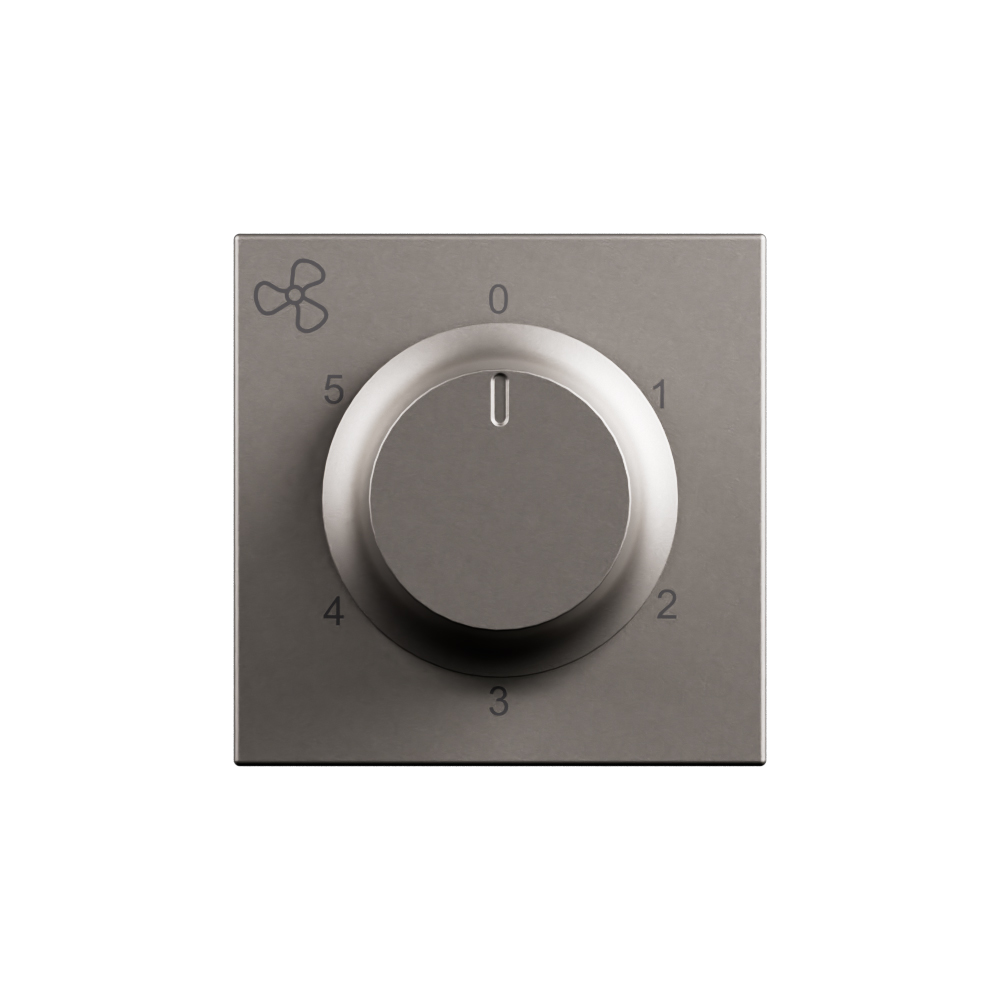

Arteor Advance - 2 modules rotary fan controller 100W matt titanium - 1-phase 0.4A flush-mounted - 6-step speed control - IP20 indoor

REF. AC662MT EAN. 3414972768931
Allows control of ceiling fan speed with a 2 modules rotary controller rated 100W. Offers 5-step speed control from 40VA to 400VA with integrated switch. Flush-mounted matt titanium finish with screw-type terminals for indoor installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of ceiling fan speed with a 2 modules rotary controller rated 100W. Offers 5-step speed control from 40VA to 400VA with integrated switch. Flush-mounted matt titanium finish with screw-type terminals for indoor installation.

Product characteristics
  • Two-module flush-mounted rotary fan speed controller rated 100W for single-phase ceiling fans
  • Matt titanium finish in Arteor Advance aesthetic for a modern, low-glare appearance
  • Designed for progressive ceiling fan speed adjustment via turn-button operation with stepped control
  • Operates fan loads from 40 to 400VA with integrated switching contact for reliable control
  • Compact 45x45x33mm device, 0.4A, IP20, for indoor installations with screw-type terminals for secure wiring
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Mounting method Flush-mounted
Colour Grey
Nominal current 0.4 A
Number of phases 1
Power control stepless No
Number of steps 6
Method of operation Turn button
Lighting None
Switching contact Yes
With temperature sensor No
Height 45 mm
Width 45 mm
Depth 33 mm
Degree of protection (IP) IP20

Documentation

1 document
Technical Sheet
F04164EN-00.pdf pdf (0.57 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
