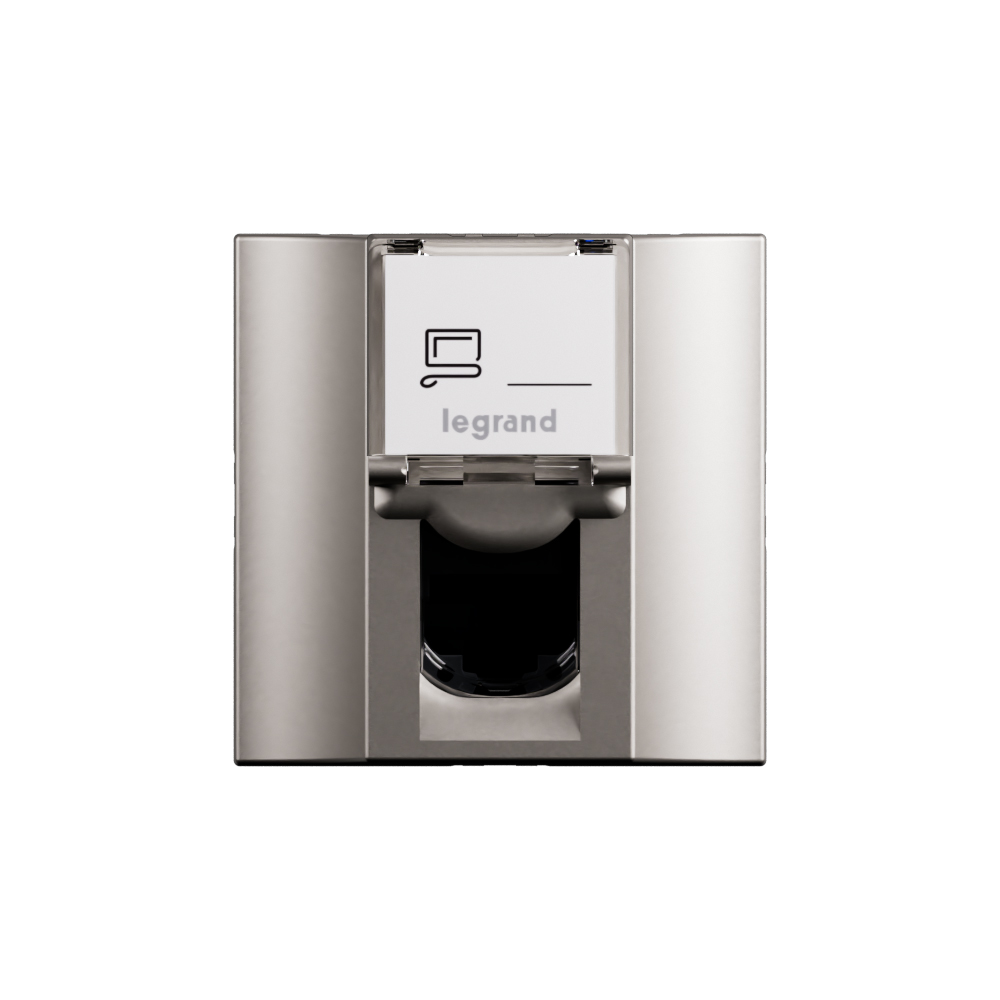

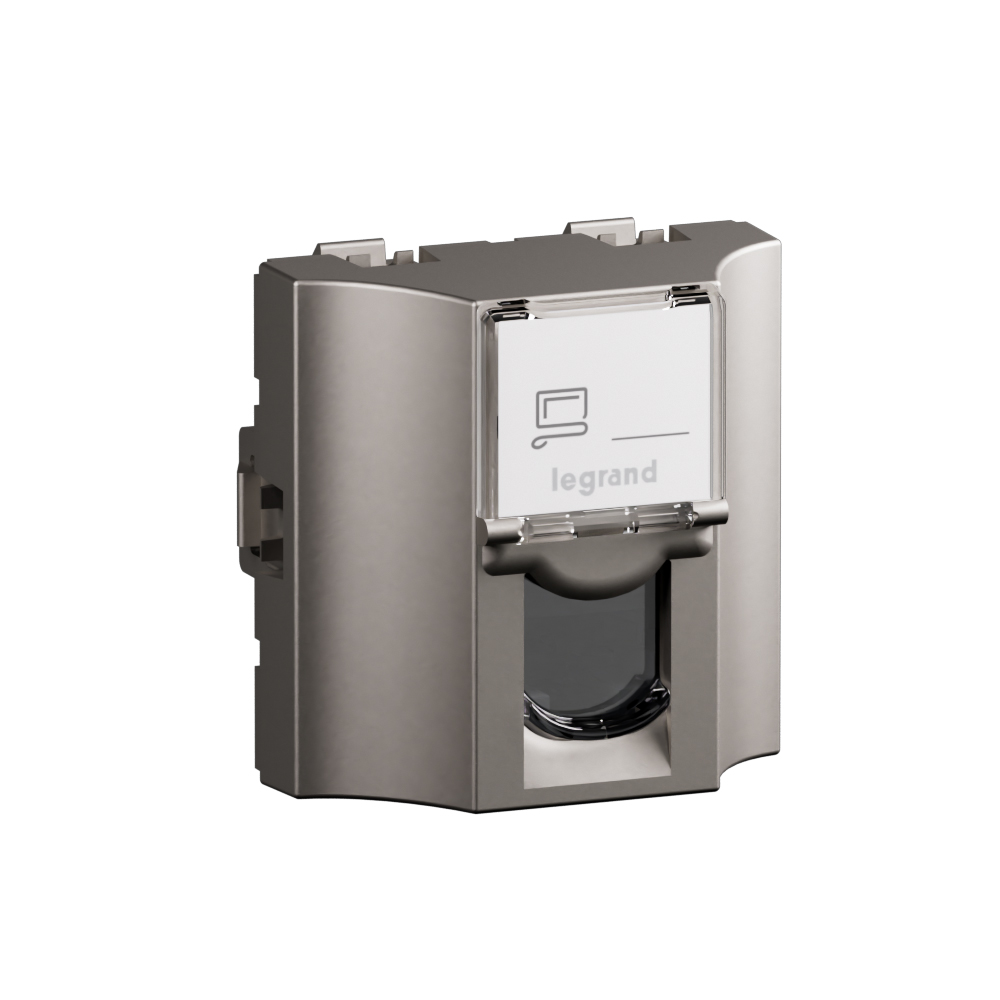

Arteor Advance - 2 modules RJ45 rear pluggable CAT6A STP socket matt titanium - 10Gbit/s data rate - PoE support - 360° EMC shielded

Arteor Advance Legrand

Arteor Advance - 2 modules RJ45 rear pluggable CAT6A STP socket matt titanium - 10Gbit/s data rate - PoE support - 360° EMC shielded

REF. AC4316MT EAN. 3414972765138
RJ45 socket connects a device (PC, printer) to the local network (ISP router, switch). The wired distribution guarantees a high-speed, secure and reliable connection to the internet, with Cat6A 10Gbit/s performance and PoE support.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

RJ45 socket connects a device (PC, printer) to the local network (ISP router, switch). The wired distribution guarantees a high-speed, secure and reliable connection to the internet, with Cat6A 10Gbit/s performance and PoE support.

Product characteristics
  • Two rear-pluggable RJ45 Cat 6A modules delivering up to 10 Gigabit/s data rate, enabling transfer of a 1 Gigabyte file in approximately 1 second for high-performance copper twisted-pair links.
  • Matt titanium finish (color Titanium, RAL 9003) providing a smooth, low-glare aesthetic fully aligned with Arteor Advance design lines for premium data outlets.
  • Supports high-capacity PoE applications, allowing simultaneous transmission of Ethernet data and electrical power over twisted pair cabling for IP phones, cameras, and access points.
  • Rear pluggable, snap-in 2-module RJ45 8(8) socket with insulation displacement connection, IP20 rating, and multi-mount capability (surface, flush, duct, floor box) for fast, reliable installation and flexible network deployment.
  • Shielded Twisted Pair (STP) construction with ground continuity bushing and 360° EMC shielding ensuring robust noise immunity and stable performance in electromagnetically noisy environments.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 and ansi/tia 568 standards. As all consolidation point use, it may have an impact on maximum recommended permanent link and channel length to ensure high performance. Please check the datasheets.

The product's benefits

Installation
  • No need to wire. Just plug the cord into the rear of the RJ45 socket with copper feedthrough at one end, and into the RJ45 connector in the area distribution box. This ensures a quick and reliable connection during installation.
Usage
  • Both workstations location change and new workstations addition can be done very quickly without significant investment and without a highly skilled workforce. Just change the length or add a cord between the area distribution box and the RJ45 socket. No need to pull a new cable from the cabinet in the technical room up to the workstation.
Avantages
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
  • Titanium with a smooth matte finish

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6A (IEC)
Colour Titanium
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses Yes
Separate earthing connection No
With label space Yes
Separate strain relief No
Mounting method shielding connection Other
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Colour coding Yes
Device width 45 mm
Device height 45 mm
Device depth 33 mm
Number of modules (module system) 2
Built-in depth 10 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.781
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
