Arteor Advance - 2 modules RJ11 telephone socket rose - Category 3 data communication - IP20 IK04 halogen free

Arteor Advance Legrand

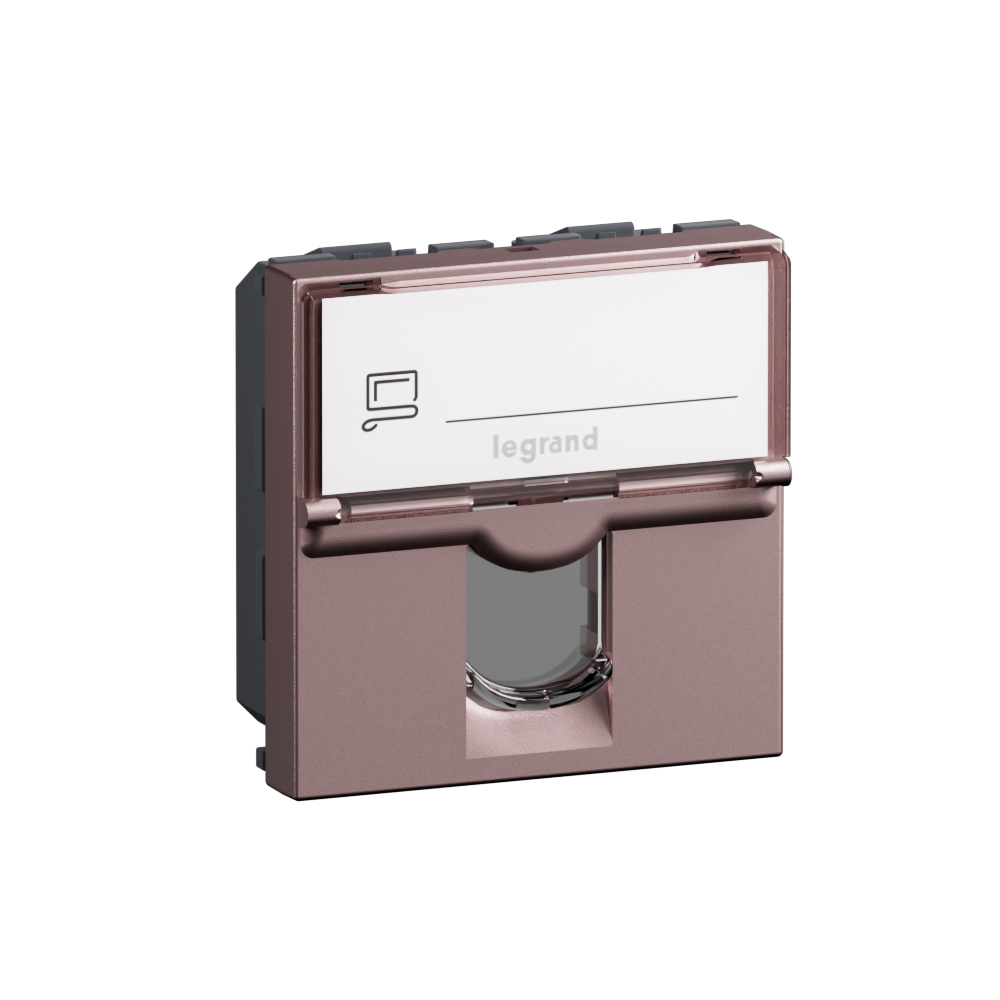

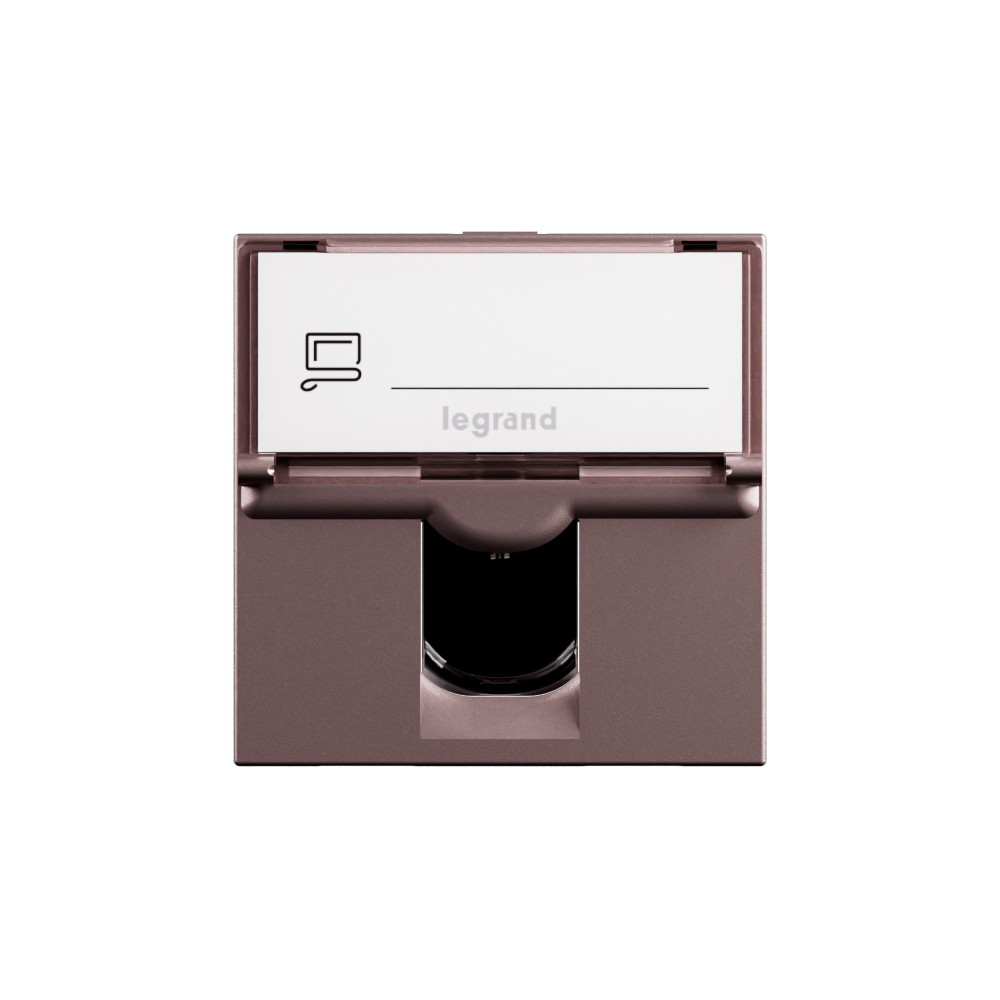

Arteor Advance - 2 modules RJ11 telephone socket rose - Category 3 data communication - IP20 IK04 halogen free

REF. AC425RS EAN. 3414972927352
For telephone installation. Superior voice transmission via 2 modules RJ11 with 4 contacts, supporting RJ11 and RJ12 sockets. Compatible with many telephone systems and designed for fast connection with modular Jack 1/4 turn terminal.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For telephone installation. Superior voice transmission via 2 modules RJ11 with 4 contacts, supporting RJ11 and RJ12 sockets. Compatible with many telephone systems and designed for fast connection with modular Jack 1/4 turn terminal.

Product characteristics
  • Two RJ11 modules providing dual telephone connection points within a 2-module Arteor Advance form factor
  • Rose (pink) finish front plate for aesthetic integration with Arteor Advance rose-colored wiring devices
  • 4-contact RJ11 interface optimized for Category 3 twisted-pair telephone and voice applications
  • Straight-outlet, IP20, IK04 data communication connection box suitable for flush, surface, duct, and floor box mounting
  • Combined RJ11 and RJ12 socket compatibility enabling connection to a wide range of analog telephone systems

The product's benefits

Installation
  • Equipped with modular Jack connector with 1/4 turn terminal for fast connection (possible looping)
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector Other
Suitable for number of connectors 1
Category 3
Colour Other
Connection type Other
Shielded housing No
Separate earthing connection Yes
With label space Yes
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Mechanical coding No
Colour coding No
Device width 45 mm
Device height 45 mm
Number of modules (module system) 2
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted

Documentation

1 document
Technical Sheet
S000130845EN-00.pdf pdf (0.85 Mo)
