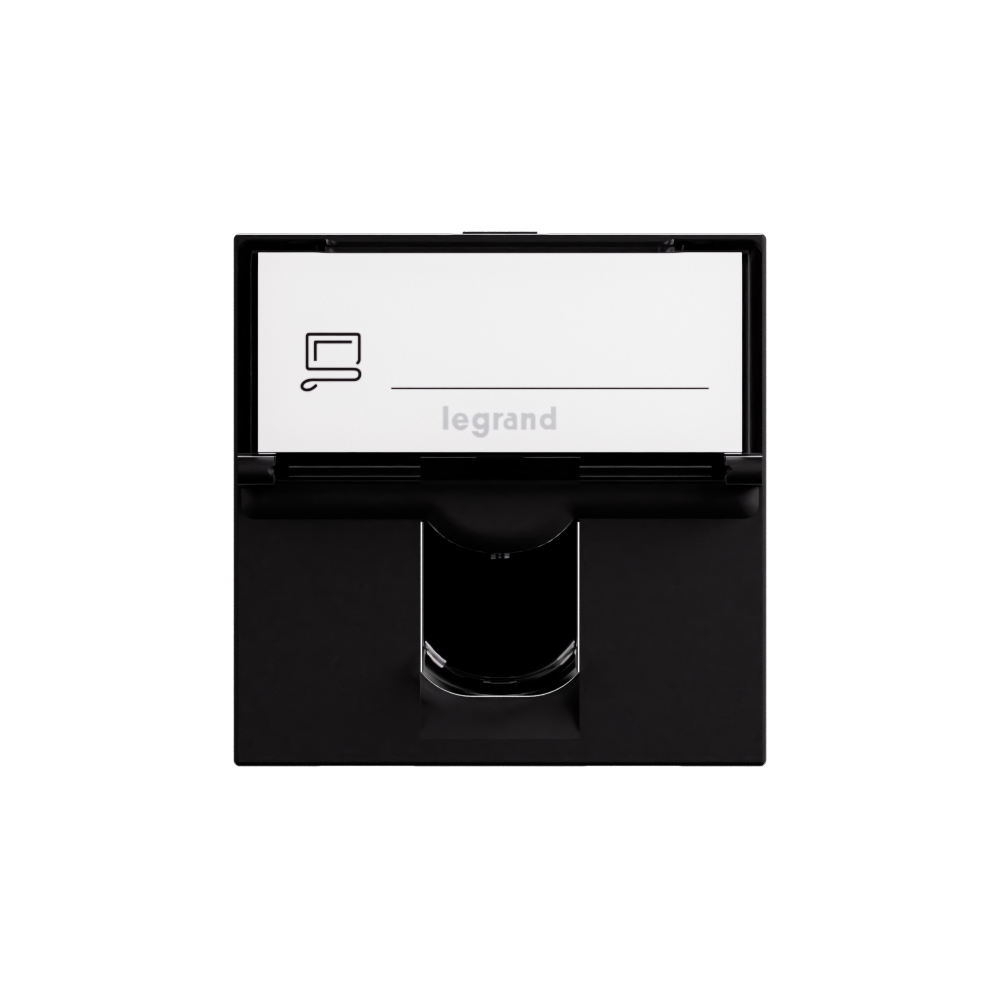

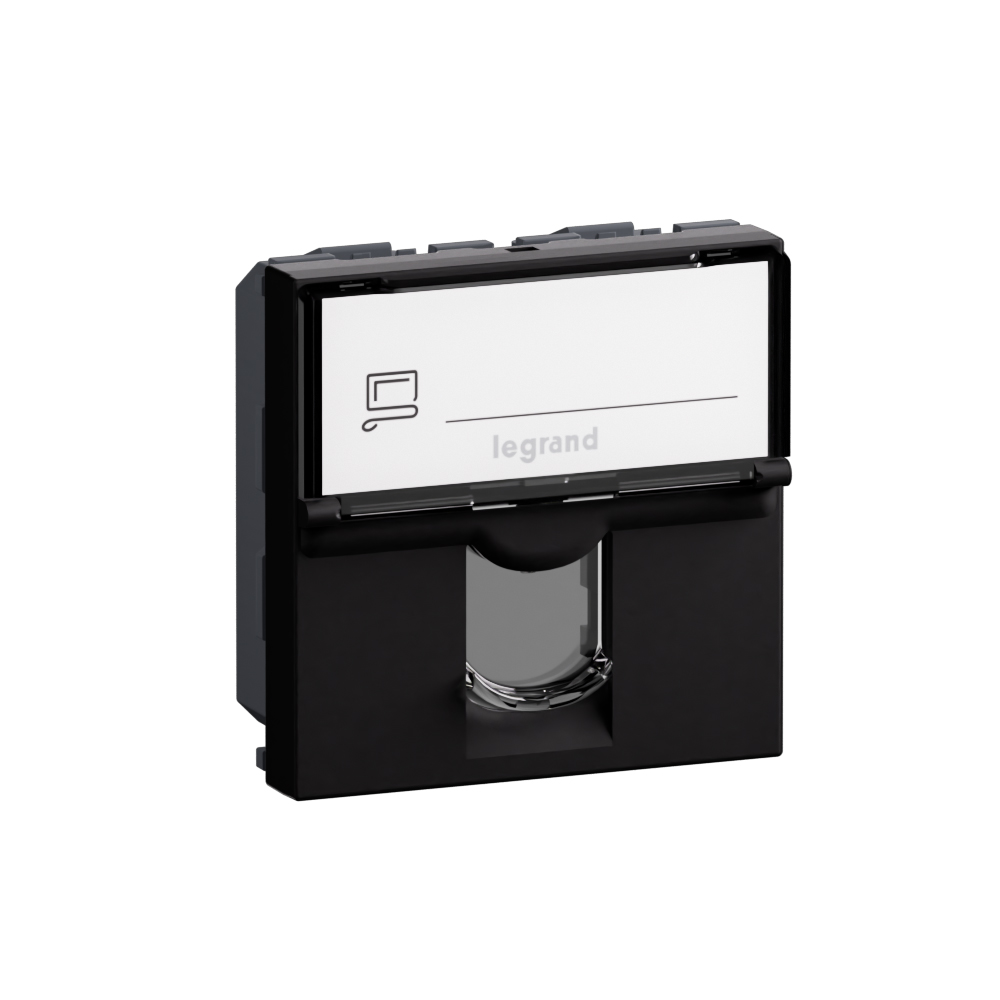

Arteor Advance - 2 modules RJ11 telephone socket matt black - Cat 3 with dust cover IP20 IK04 - Flush or surface mounting halogen free

Arteor Advance Legrand

Arteor Advance - 2 modules RJ11 telephone socket matt black - Cat 3 with dust cover IP20 IK04 - Flush or surface mounting halogen free

REF. AC425MB EAN. 3414972762885
For telephone installation. Superior voice transmission with 4-contact RJ11/RJ12 modular jack. Compatible with many telephone systems and supports looping via 1/4 turn terminal. Matt black 2-module design with dust cover.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

For telephone installation. Superior voice transmission with 4-contact RJ11/RJ12 modular jack. Compatible with many telephone systems and supports looping via 1/4 turn terminal. Matt black 2-module design with dust cover.

Product characteristics
  • Two RJ11 modules in a 2-module Arteor Advance form factor for dedicated telephone line termination
  • Deep matt black finish for low reflectance and seamless integration with contemporary devices and frames
  • 4-contact RJ interface supporting reliable voice-grade connectivity for Category 3 twisted-pair telephone circuits
  • IP20, IK04 front protection with halogen-free materials and operating temperature from -5 to 35° C for robust indoor use
  • RJ11 and RJ12 compatible sockets enabling flexible connection to a wide range of analog telephone systems

The product's benefits

Installation
  • Equipped with modular Jack connector with 1/4 turn terminal for fast connection (possible looping)
Avantages
  • Deep black with a smooth matt aspect

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector Other
Suitable for number of connectors 1
Category 3
Colour Black
RAL-number 9003
Connection type Other
Shielded housing No
Separate earthing connection Yes
With label space Yes
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Mechanical coding No
Colour coding No
Device width 45 mm
Device height 45 mm
Number of modules (module system) 2
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted

Documentation

1 document
Technical Sheet
S000130845EN-00.pdf pdf (0.85 Mo)
