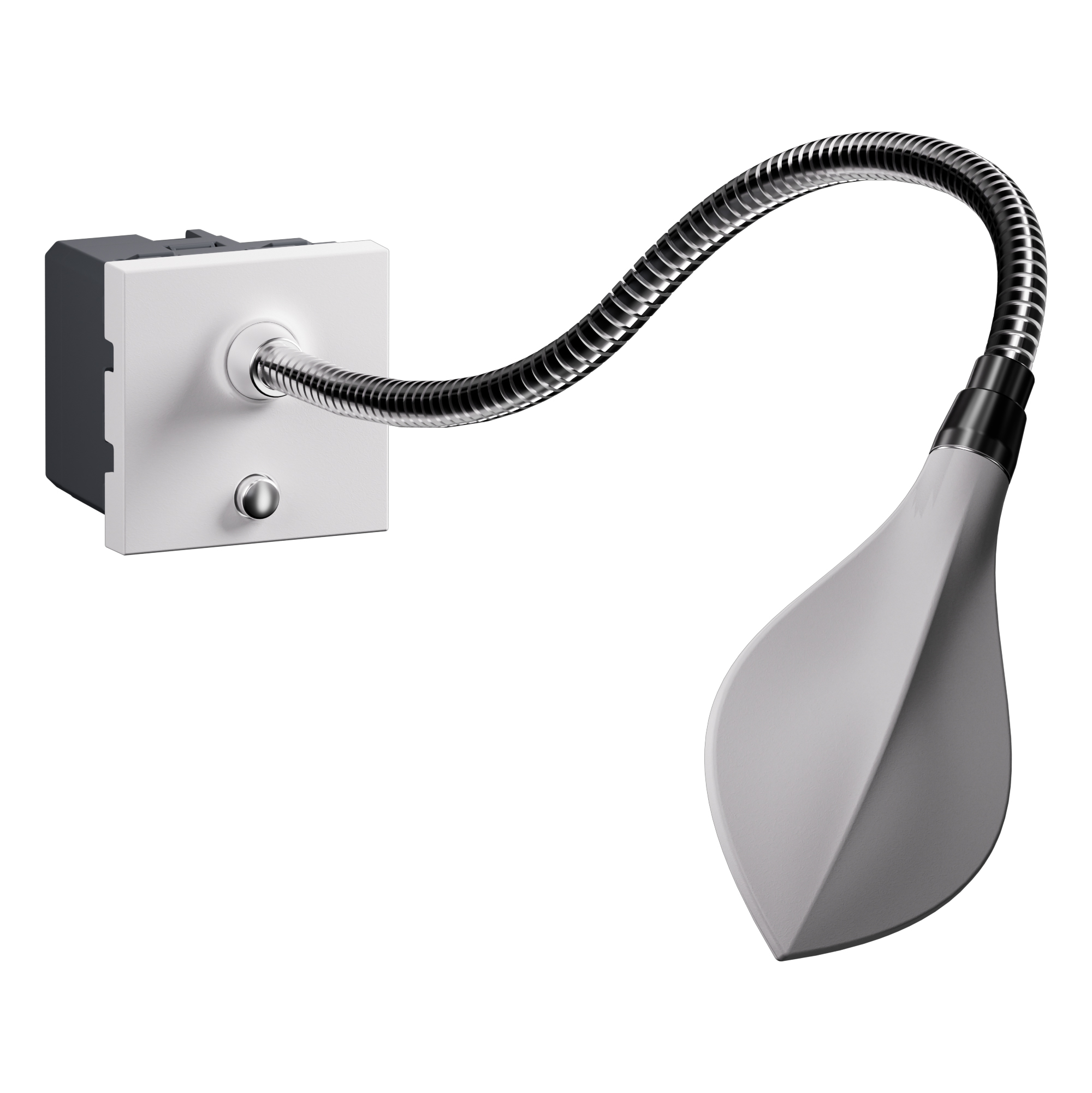

Arteor Advance - 2 modules reading light matt white - LED 3.3W 110lumens 3000K - Push-button dimmable 230V AC - IP40

Arteor Advance Legrand

Arteor Advance - 2 modules reading light matt white - LED 3.3W 110lumens 3000K - Push-button dimmable 230V AC - IP40

REF. AC657MW EAN. 3414972810234
Reading light provides focused illumination for comfortable reading. This 2 modules matt white light delivers 110lumens LED output at 3.3W with 3000K warm white. Its integrated push-button dimming and screw-type terminals.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Reading light provides focused illumination for comfortable reading. This 2 modules matt white light delivers 110lumens LED output at 3.3W with 3000K warm white. Its integrated push-button dimming and screw-type terminals.

Product characteristics
  • Two-module reading light module for Arteor Advance systems, designed for built-in wall installation to provide localized reading illumination
  • Matt white lacquered housing (RAL 9003) with opal plastic cover for low-glare, visually discreet integration in contemporary interiors
  • Supplied with non-exchangeable 3.3W LED light source, 110lumens, 3000K white light, optimized for comfortable reading
  • High energy efficiency LED solution operating on 230 to 250V AC, 50 to 60Hz, with push-button dimming for reduced consumption and tailored light output
  • Marked 2-pole screwed terminals for easy, secure wiring (1.5mm² to 2.5mm² flexible or rigid conductors), ensuring fast and error-free installation
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Powdery white with a smooth matte appearance
  • The square format enables modularity

Technical characteristics

Suitable for wall mounting Yes
Suitable for suspended mounting No
Suitable for ceiling mounting No
Suitable for built-in mounting Yes
Suitable for surface mounting No
Suitable for light line configuration No
Suitable for workplace according to EN 12464-1 No
Lamp type LED not exchangeable
With light source Yes
Lamp holder Other
Housing material Plastic
Surface protection housing Lacquered
Housing colour White
Material cover Plastic, opal
Type of grid None
Voltage type AC
Nominal voltage (Min-Max) 230-250 V
Type of control gear LED operating device voltage-controlled
With control gear No
Exchangeable control gear No
Dimmable Yes
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming manufacturer's proprietary system No
Dimming mains voltage modulation No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming programmable No
Dimming potentiometer (integrated) No
Dimming RF No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming with push-button Yes
Light distributor Reflector
Light distribution Asymmetric
Beam angle Open beam/diffuse
Light outlet Direct
Degree of protection (IP), rear side IP20
Degree of protection (IP), front side IP40
degree of impact strength (IK) IK04
Protection class according to IEC 61140 None
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Emergency power supply system None
Rated ambient temperature according to IEC 62722-2-1 (Min-Max) -5-35 °C
Luminous flux in emergency mode 110 lm
Suitable for emergency lighting No
Emergency function monitoring system None
With switch Yes
With presence detector No
With movement sensor No
With light sensor No
Covering of the luminaire with thermally insulating material possible No
With air slots No
Filament test according to IEC 60695-2-11 650 °C - 30 s
Suitable for lamp power (Min-Max) 3.3-3.3 W
Luminaire efficacy (Min-Max) 0-0 lm/W
Rated luminous flux according to IEC 62722-2- 1 (Min-Max) 110-110 lm
Colour of light White
Colour temperature (Min-Max) 3000-3000 K
Width 45 mm
Height/depth 45 mm
Length 362 mm
Outer diameter 53 mm
Built-in length 32 mm
Built-in width 45 mm
Built-in height/depth 32 mm
Type of wiring Ending
Number of poles 2
Conductor cross section 1.5 mm²
Connection type Screwed terminal
Connectable conductor cross section (Min-Max) 1.5-2.5 mm²
Luminous intensity (Min-Max) 0-0 cd
Colour of light adjustable No
Luminous flux adjustable No
Operation by Bluetooth No
Compatible with Casambi No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -25-45 °C
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
RAL-number 9003
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
With socket outlet No
Fitted with rainproof plate protection No
With complemantary luminous signal No
Supplied remote control No
Cable support Not applicable
Auto switch No
Control mode Wired
Addressable No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Lighting management
