Arteor Advance - 2 modules plate+frame solid aluminum - 2-gang square cover frame - Matt lacquered real aluminum plate

Arteor Advance Legrand

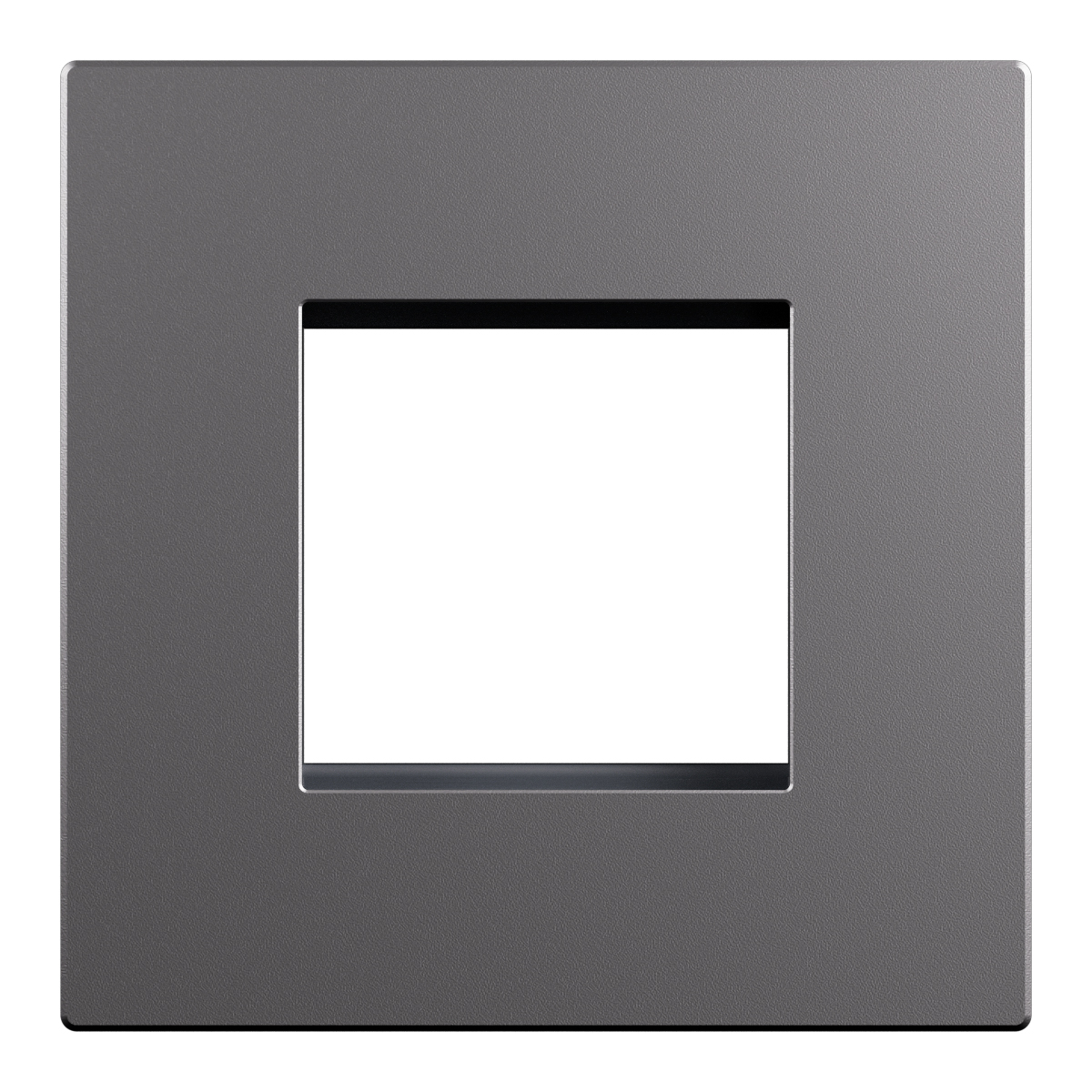

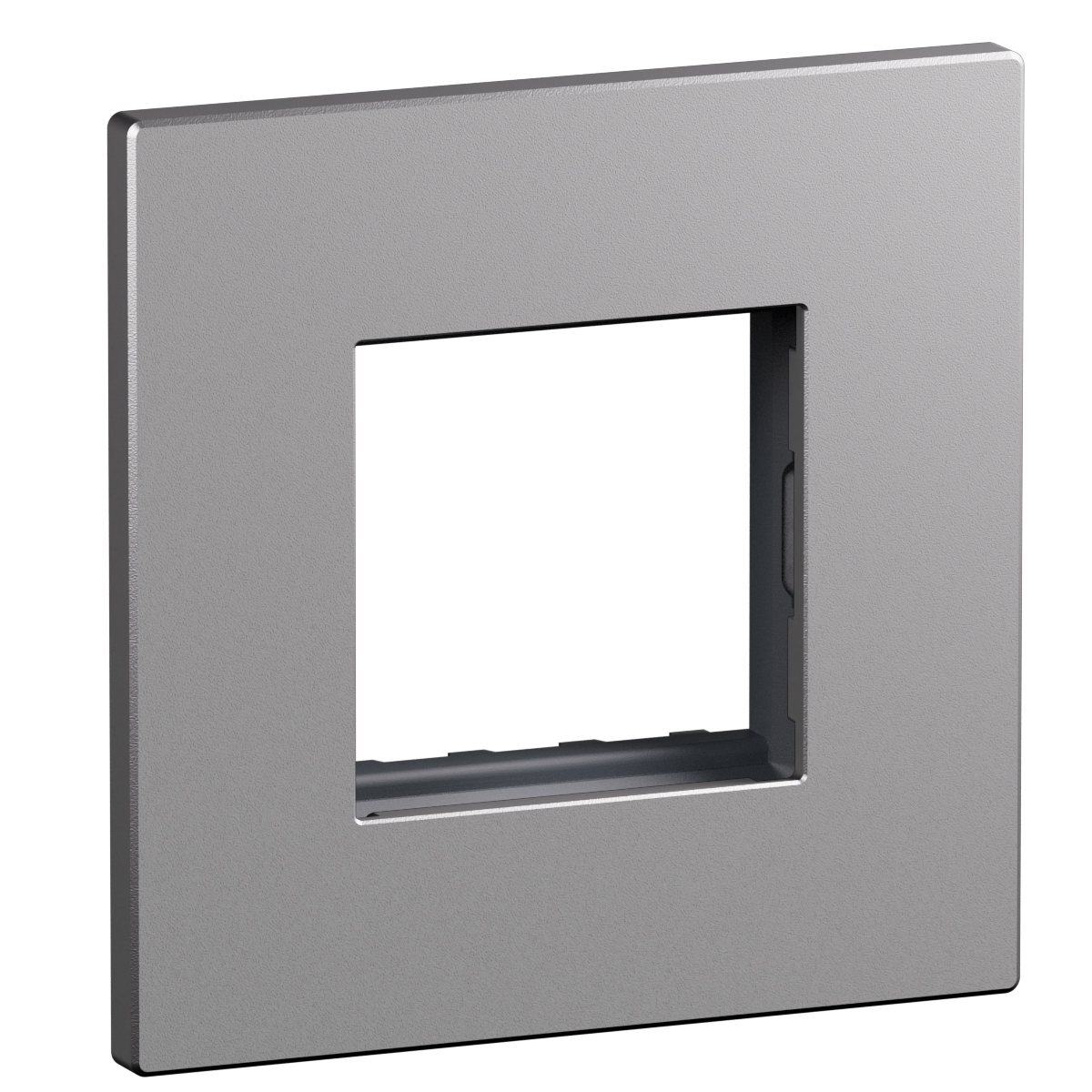

Arteor Advance - 2 modules plate+frame solid aluminum - 2-gang square cover frame - Matt lacquered real aluminum plate

REF. AC1201SA EAN. 3414972737708
This 2 modules plate+frame solid aluminium solution offers robust metal construction, halogen-free safety, and refined square design. Its matt lacquered finish ensures discreet aesthetics, while the integrated adjuster guarantees precise
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules plate+frame solid aluminium solution offers robust metal construction, halogen-free safety, and refined square design. Its matt lacquered finish ensures discreet aesthetics, while the integrated adjuster guarantees precise

Product characteristics
  • Two-gang, 2-module plate and frame for domestic switching devices, providing two functional positions in a compact footprint
  • Solid aluminum construction with lacquered, matt surface for enhanced durability and muted reflection
  • Plates are made of real plain aluminum, halogen free and metal quality optimized for robust, long-term use
  • Square 90x90mm form factor with 8.5mm depth, enabling modularity and flexibility in flush-mounted installations
  • Snap-on fastening with integrated adjuster ensures precise, flush wall alignment; recommended for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
