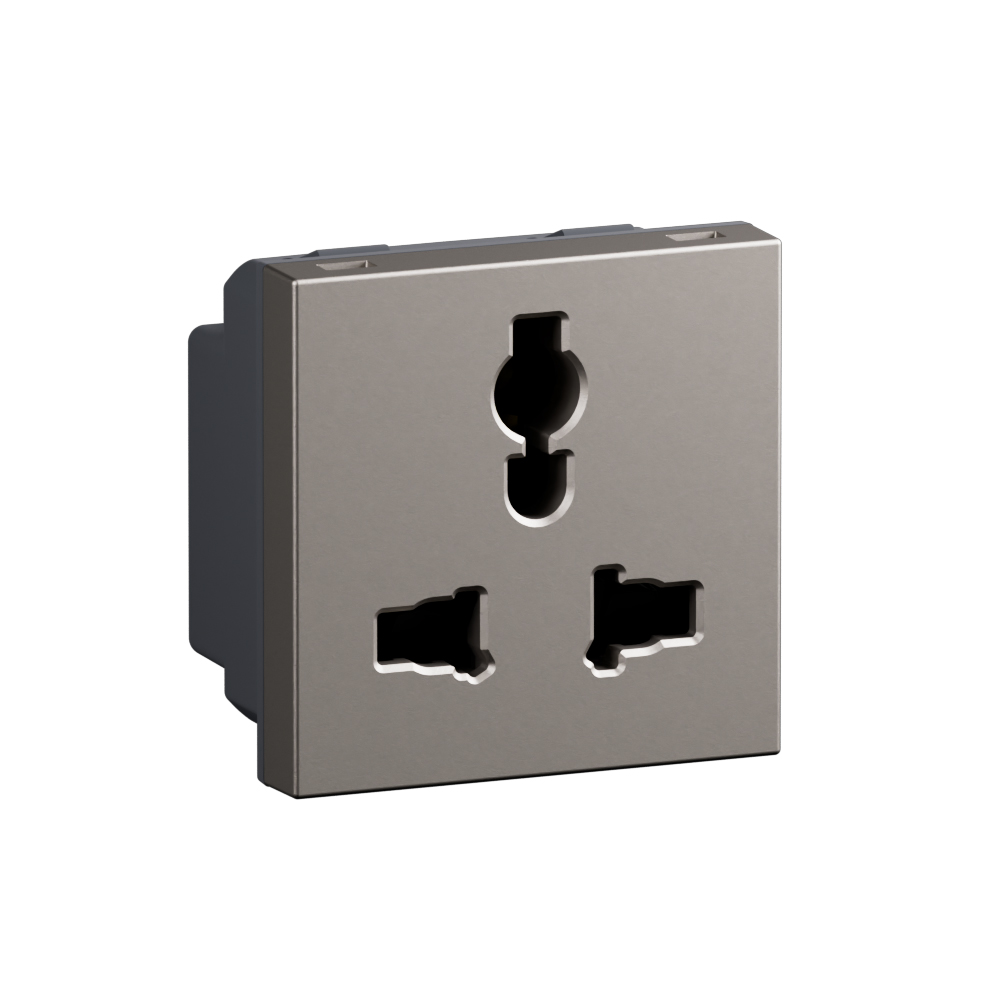

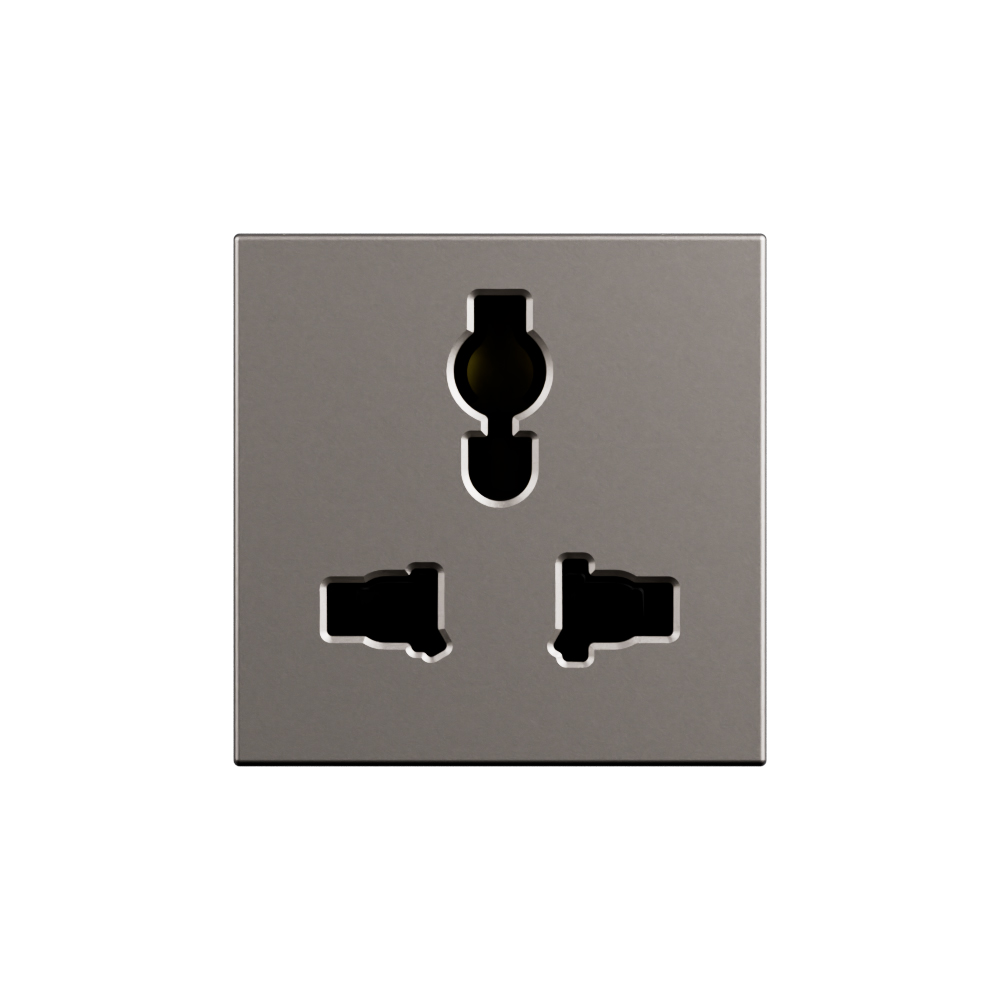

Arteor Advance - 2 modules multistandard 2 poles + earth unswitched socket matt titanium - 2M modular 2P+E outlet 250V AC IP20 indoor

Arteor Advance Legrand

Arteor Advance - 2 modules multistandard 2 poles + earth unswitched socket matt titanium - 2M modular 2P+E outlet 250V AC IP20 indoor

REF. AC3174MT EAN. 3414972759403
Allows connecting an electrical appliance through a 2-module multistandard 2P+E unswitched socket with earth connection, safety shutters, marked screw terminals for secure wiring, and a matt titanium finish.
Download product sheet
Finition :
Concurrently switching neutral conductor :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 2-module multistandard 2P+E unswitched socket with earth connection, safety shutters, marked screw terminals for secure wiring, and a matt titanium finish.

Product characteristics
  • Two-module multi-standard 2P+E unswitched socket outlet for energy distribution to a single load
  • Matt titanium thermoplastic front with lacquered metallic finish for a premium, low-glare appearance
  • Integrated earth contact for safe equipment grounding in 250V AC installations
  • Screw-type, clearly marked terminals for fast, secure wiring and easy circuit identification
  • Modular snap-mount design (2x45mm) for installation in Arteor Advance frames, IP20, indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 2
Number of active contacts (square) 2
Mounting direction Horizontal and vertical
Assembly arrangement Modular device for domestic switching devices
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
Label space/information surface No
Colour Titanium
Metallic colour Yes
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Rotated central insert No
Nominal voltage 250 V
Suitable for degree of protection (IP) IP20
Device width 45 mm
Device height 45 mm
Device depth 35 mm
Min. depth of built-in installation box 27 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery No
Terminal marking indication Yes
Prewired No
Cable nature for connection Flexible or rigid
Cable support Not applicable
Contains Batteries No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Energy distribution
