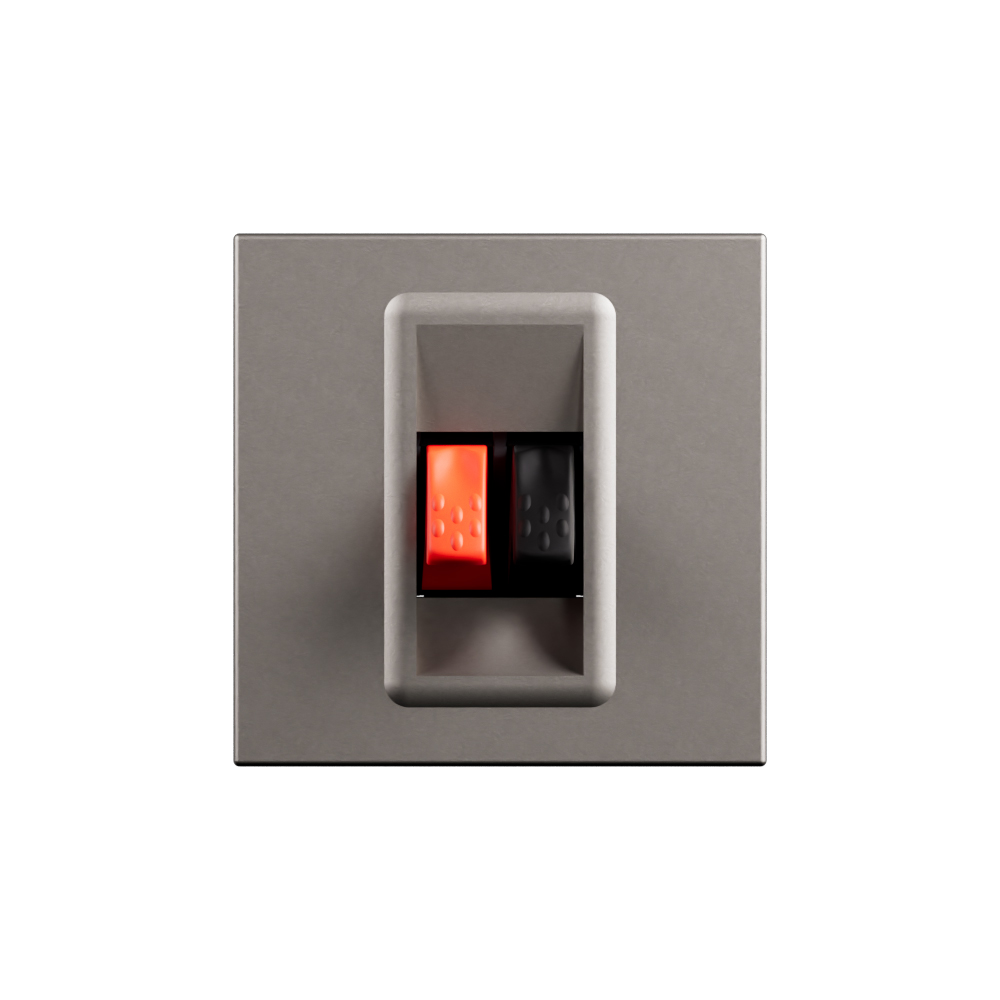

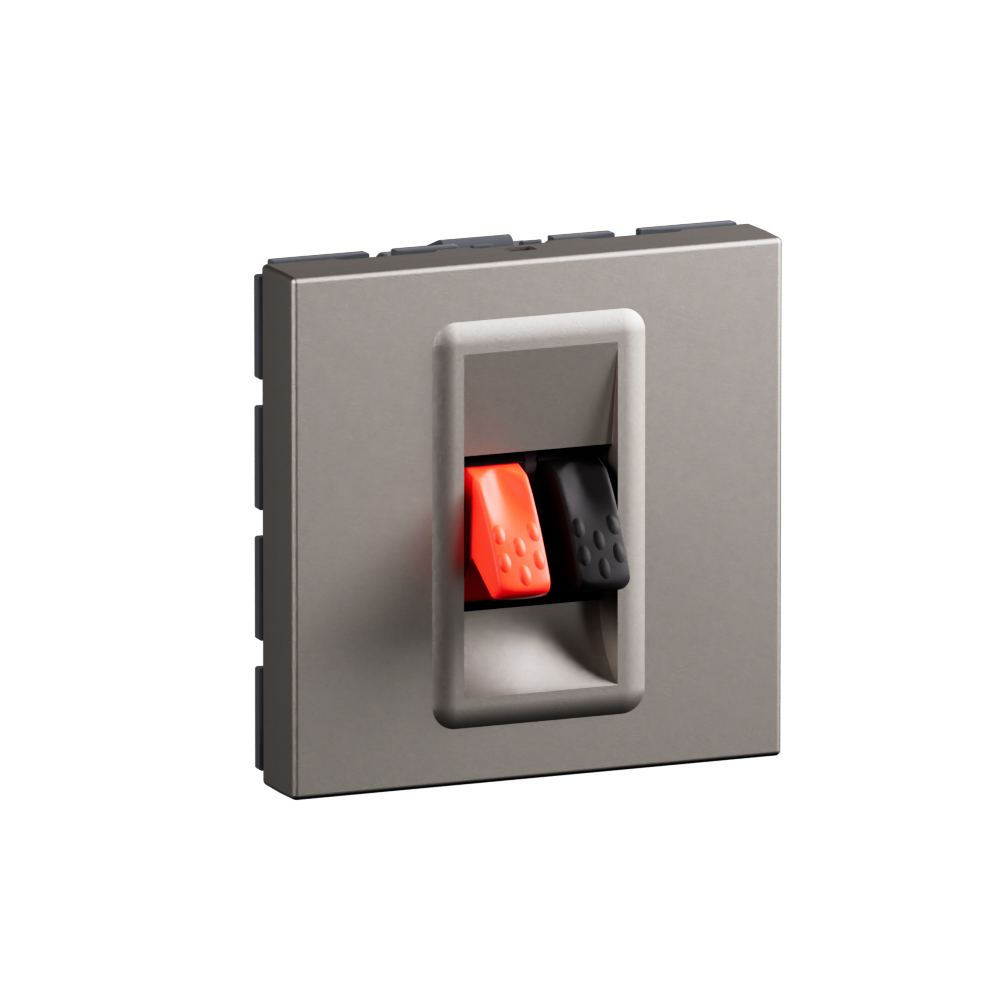

Arteor Advance - 2 modules loudspeaker socket matt titanium - Stereo audio link - 2 connectors, terminal 4mm² - 45x45mm

Arteor Advance Legrand

Arteor Advance - 2 modules loudspeaker socket matt titanium - Stereo audio link - 2 connectors, terminal 4mm² - 45x45mm

REF. AC4404MT EAN. 3414972766067
For loudspeaker stereo audio link, this 2 modules loudspeaker socket in matt titanium ensures reliable connection. Its lacquered thermoplastic, halogen free construction and IP20, IK04 ratings provide robust in-wall integration.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

For loudspeaker stereo audio link, this 2 modules loudspeaker socket in matt titanium ensures reliable connection. Its lacquered thermoplastic, halogen free construction and IP20, IK04 ratings provide robust in-wall integration.

Product characteristics
  • Two-module loudspeaker socket for stereo audio link, suitable for two loudspeaker connectors within communication installations
  • Matt titanium thermoplastic front with lacquered surface for a smooth, low-glare technical finish matching Arteor Advance aesthetics
  • Supplied with rocker plates; to be completed with compatible module support frames and cover plates for modular mounting
  • Module-frame mounting with snap-in fastening, 2-module format (45x45mm, depth 36mm, built-in depth 34mm), IP20, IK04, halogen-free plastic
  • Loudspeaker terminals for conductors up to 4mm², enabling secure connection of larger-section speaker cables for low-loss audio transmission

The product's benefits

Avantages
  • Titanium with a smooth matte finish

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization Loudspeaker connection
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Without indication field
With imprint No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
Suitable for number of connectors 2
With strain relief No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 36 mm
Built-in depth 34 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
