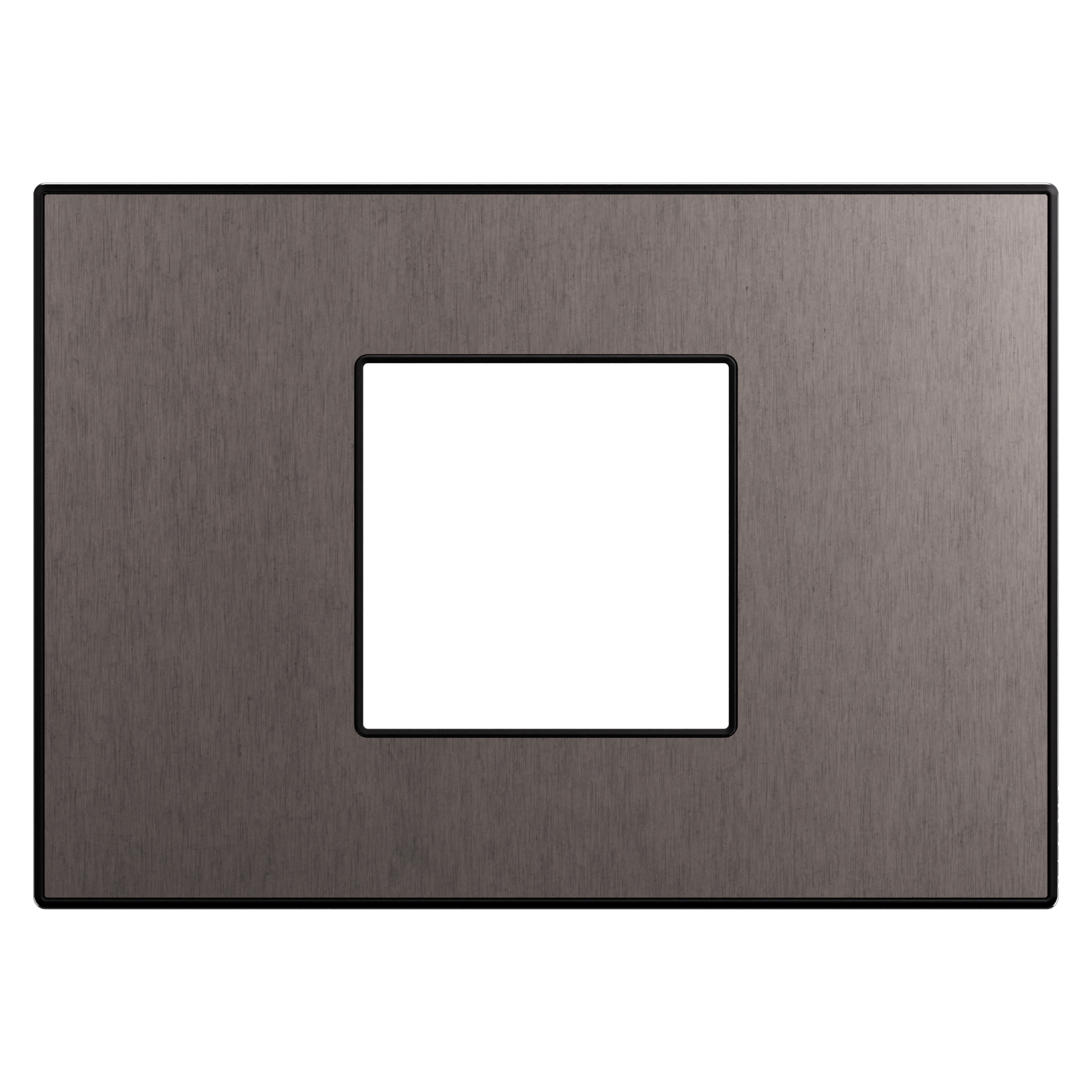

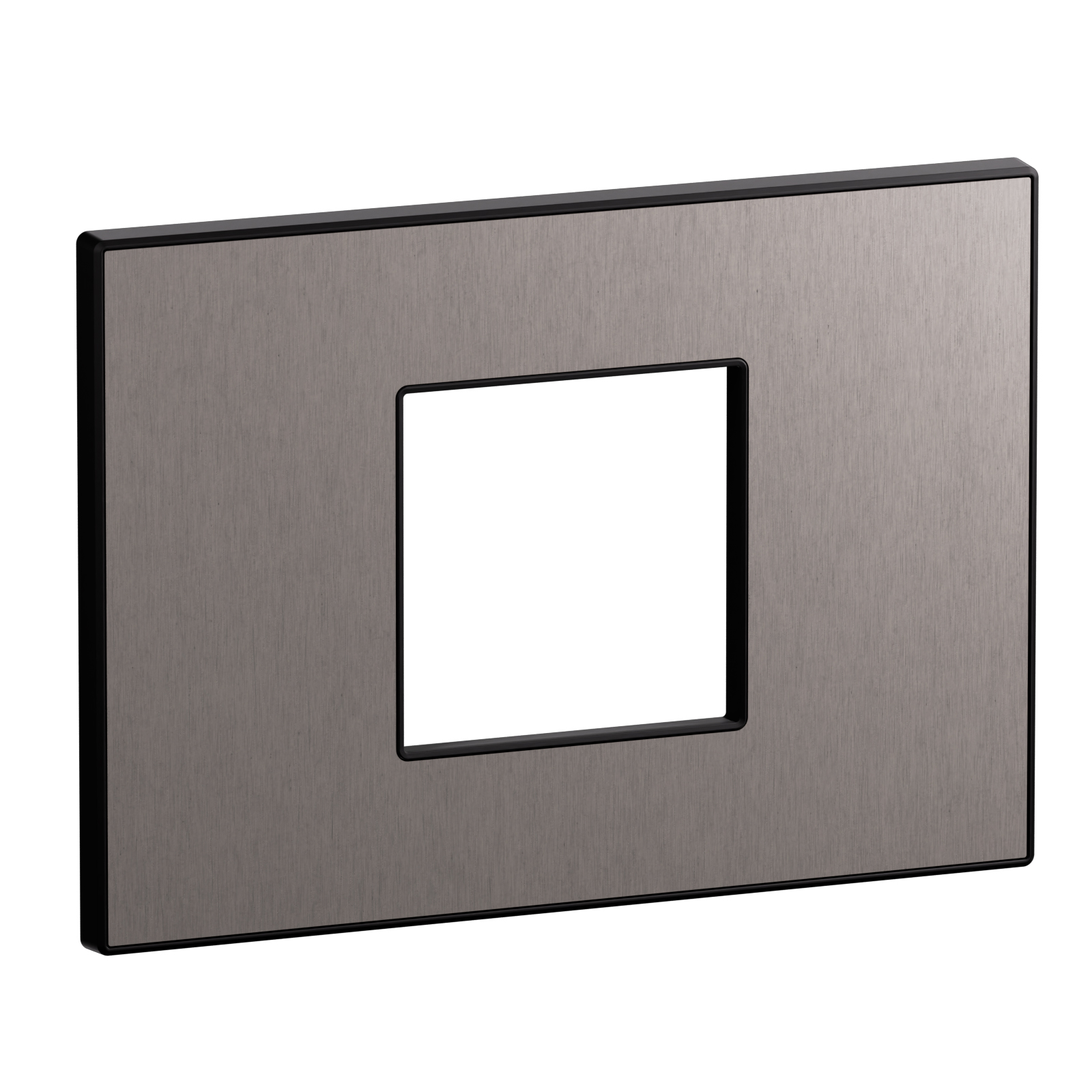

Arteor Advance - 2 modules Italian/US standard horizontal plate dark aluminum - Brushed matt finish - Square compact design

Arteor Advance Legrand

Arteor Advance - 2 modules Italian/US standard horizontal plate dark aluminum - Brushed matt finish - Square compact design

REF. AC1103DA EAN. 3414972734479
This 2 modules Italian/US standard horizontal plate in dark brushed aluminum offers refined, square design and compact modularity. Its snap fastening and 127x90x8.5mm dimensions ensure precise flush mounting and perfect wall alignment.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules Italian/US standard horizontal plate in dark brushed aluminum offers refined, square design and compact modularity. Its snap fastening and 127x90x8.5mm dimensions ensure precise flush mounting and perfect wall alignment.

Product characteristics
  • 2x6 modules Italian/US standard cover frame enabling high wiring density in a compact footprint
  • Dark aluminum finish in warm grey tone for a contemporary, technical aesthetic matching Arteor Advance devices
  • Front plate made of real brushed aluminum set in a cradle, providing durable, high-quality materiality and visual depth
  • Square geometry for modularity and flexibility in compact configurations and multi-gang compositions
  • Horizontal 2 modules flush-mount plate, 127x90x8.5mm, snap-fastening, halogen-free, for indoor use from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04502EN-00.pdf pdf (0.5 Mo)
