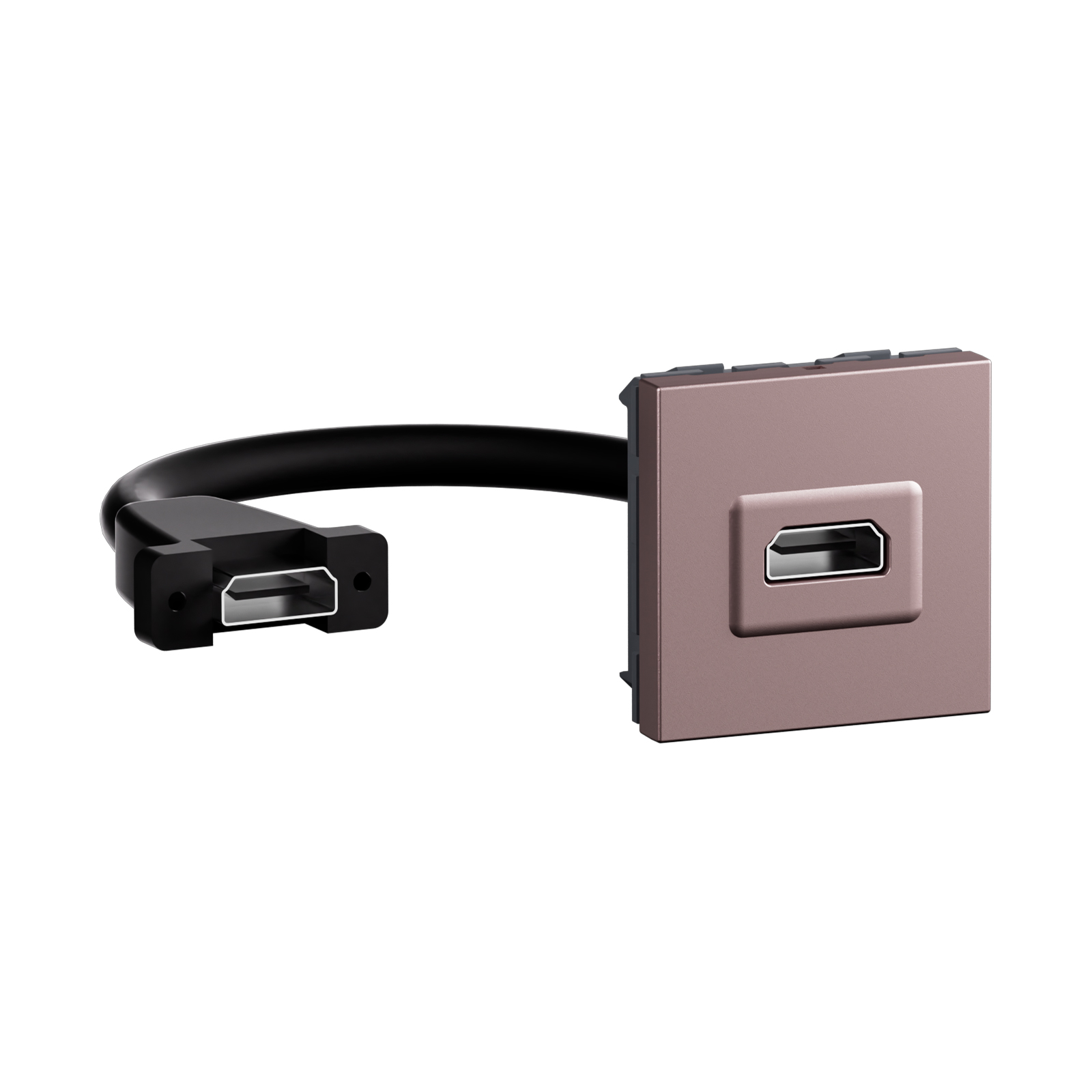

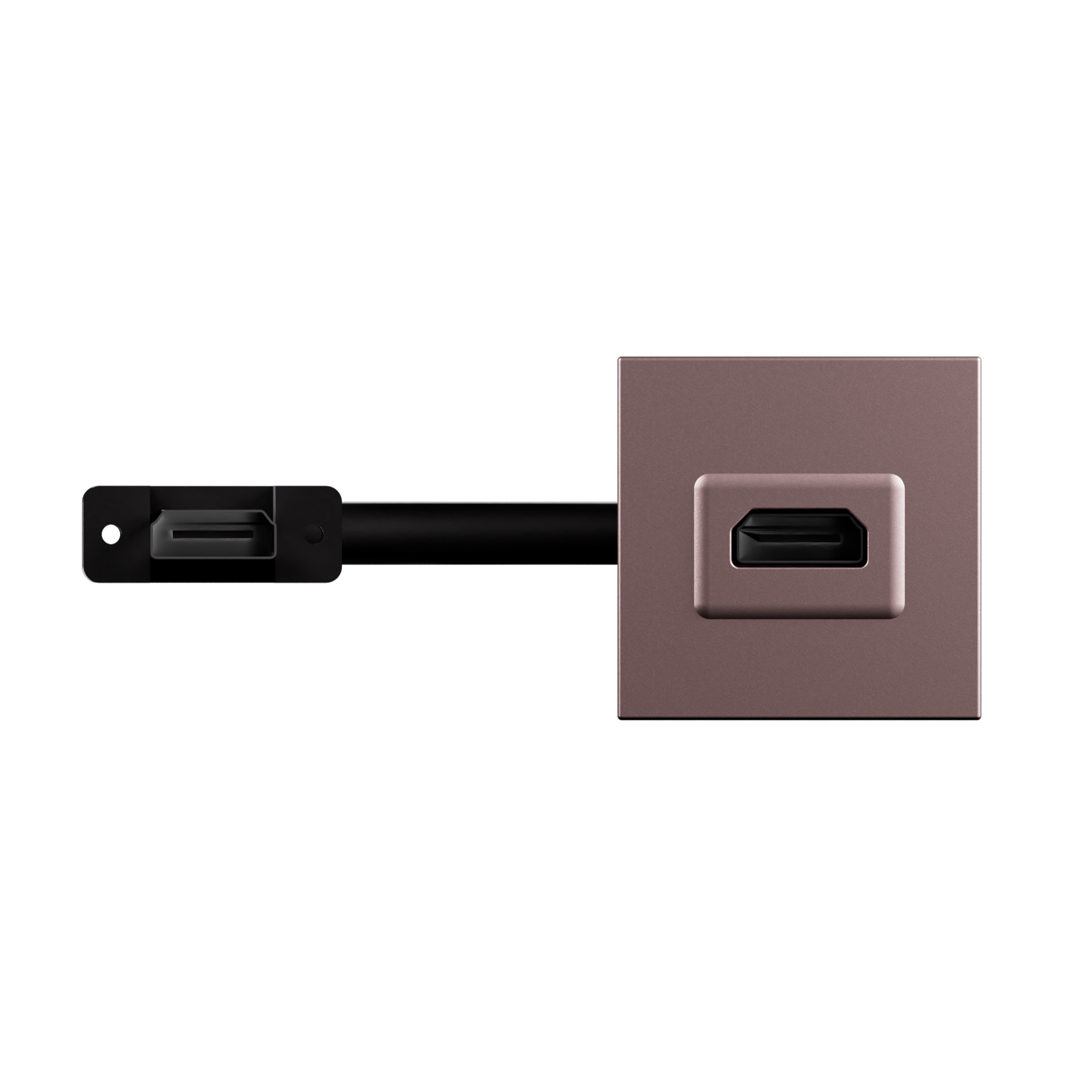

Arteor Advance - 2 modules hdmi preterminated socket outlet - Female type-A connector - 2M modular snap-in design

Arteor Advance Legrand

Arteor Advance - 2 modules hdmi preterminated socket outlet - Female type-A connector - 2M modular snap-in design

REF. AC4412RS EAN. 3414972928083
This preterminated hdmi socket transmits high-definition digital audio/video with hdmi 2.0 type-A performance. Its 2-module rose finish integrates in Arteor Advance installations. Supplied with 15cm cord for easier maintenance.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This preterminated hdmi socket transmits high-definition digital audio/video with hdmi 2.0 type-A performance. Its 2-module rose finish integrates in Arteor Advance installations. Supplied with 15cm cord for easier maintenance.

Product characteristics
  • Two-module hdmi 2.0 type-A preterminated socket for high-definition digital audio/video transmission between source and display devices
  • Rose-colored finish providing a discreet, blush-effect aesthetic that integrates with advanced interior designs
  • Supplied with rocker plates; to be completed with compatible module support frames and front plates for secure, modular installation
  • Module-frame mounting, 2-module 45x45mm plastic thermoplastic insert, IP40, IK04, with snap-on fastening for quick integration into communication panels
  • Equipped with preterminated hdmi cord, length 15cm, localizing wear on the socket cord instead of the equipment hdmi cable for easier maintenance
Recommendation / Restriction
  • To connect with a hdmi cord. Minimum flush mounting box depth 50mm.

The product's benefits

Installation
  • Modular, fixed with clips directly
Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Ease of maintenance: wear and tear is localized on the preterminated cord and not on the equipment hdmi cord.
  • Pink finish evoking subtle blush effect

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization HDMI
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Contact type Female
Imprintable label Without indication field
With imprint Yes
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
With buses/couplings Yes
Suitable for number of connectors 1
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 58 mm
Built-in depth 45 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
