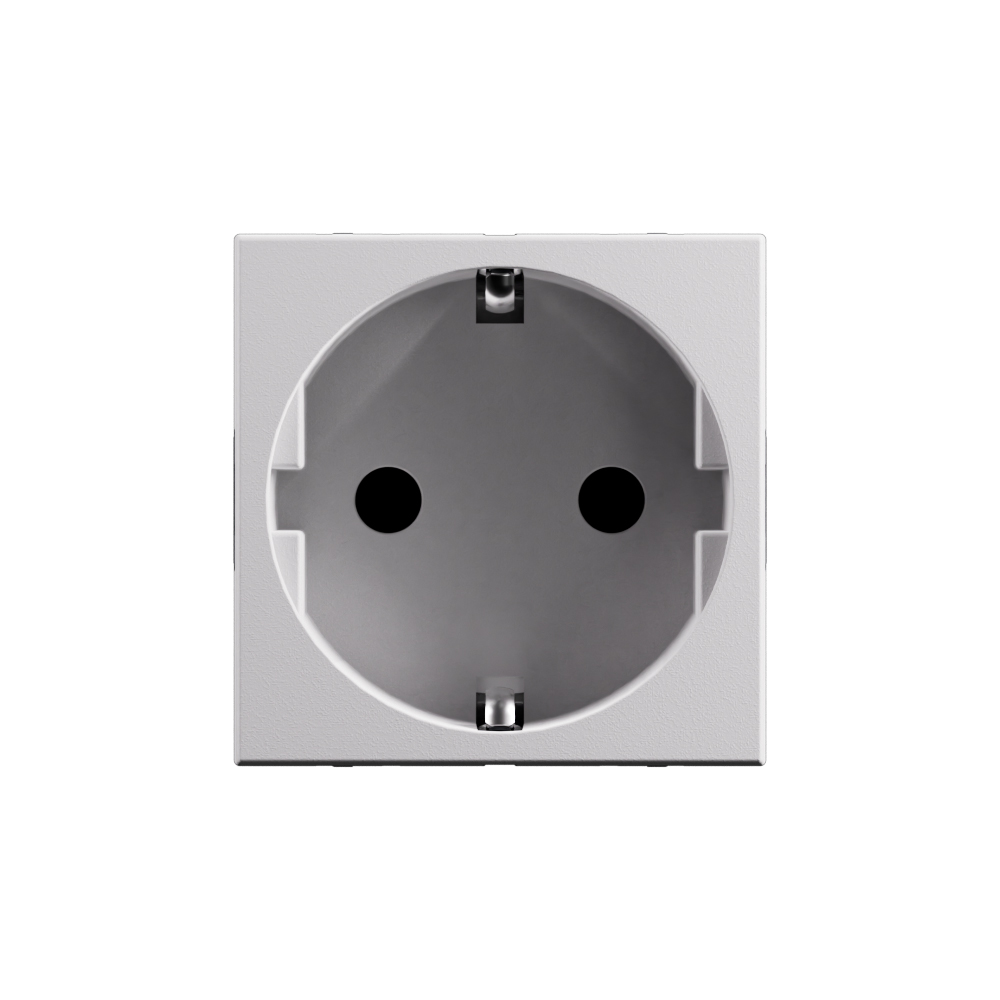

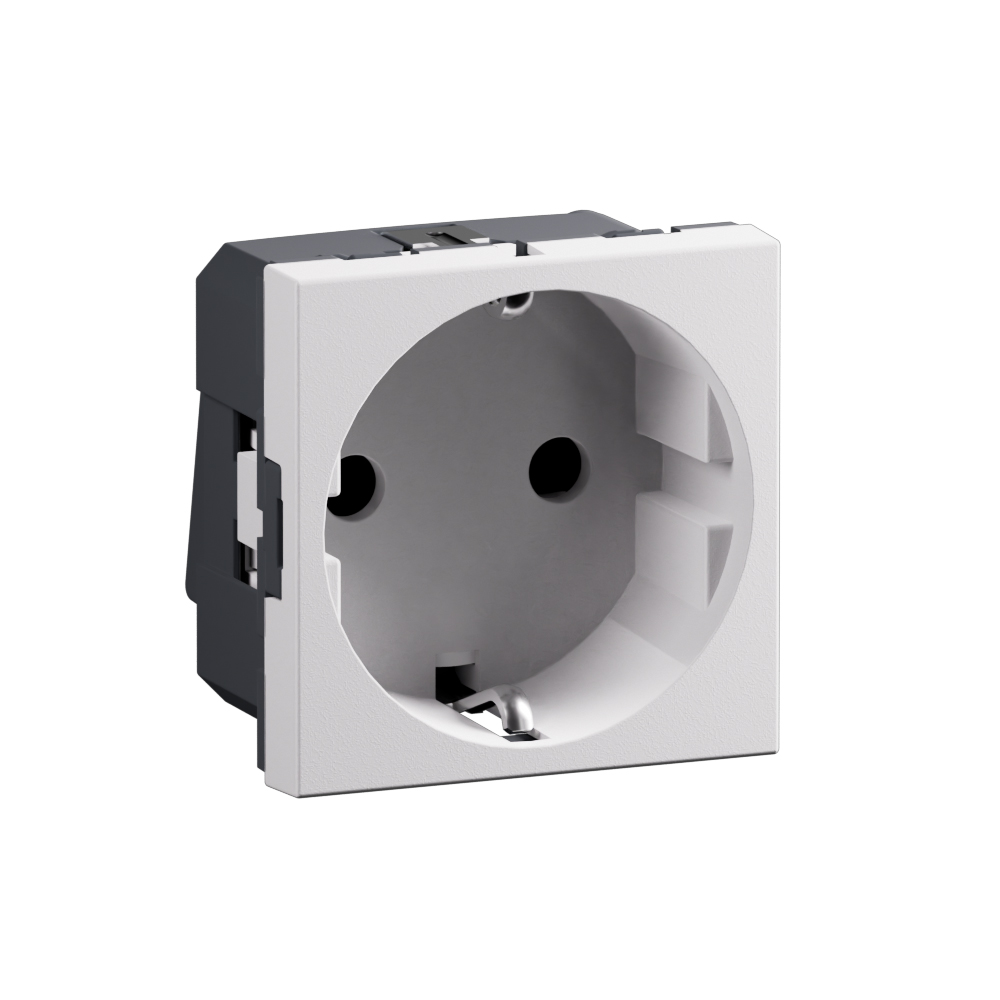

Arteor Advance - 2 modules German 16A 250V AC 2 poles + earth shuttered socket matt white type F - Safety shutters - Halogen-free IP40

Arteor Advance Legrand

Arteor Advance - 2 modules German 16A 250V AC 2 poles + earth shuttered socket matt white type F - Safety shutters - Halogen-free IP40

REF. AC3122MW EAN. 3414972757690
Allows connecting an electrical appliance through a German 16A 2P+E shuttered socket. The matt white halogen-free thermoplastic body ensures IP40, IK04 performance. Screw-type terminals with marked connections simplify wiring.
Download product sheet
Finition :
With hinged lid :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a German 16A 2P+E shuttered socket. The matt white halogen-free thermoplastic body ensures IP40, IK04 performance. Screw-type terminals with marked connections simplify wiring.

Product characteristics
  • Two-module German type F socket outlet, 16A 250V AC 2P+E, for Arteor Advance modular frames
  • Matt white thermoplastic front with lacquered, smooth matt finish for a discreet, powdery white aesthetic
  • Shuttered 2P+E design with earth contact and enhanced contact protection for increased user safety
  • Screw-type, clearly marked terminals for fast, secure wiring and easy circuit identification
  • IP40, IK04 modular basic element with central cover plate, 45x45mm, 31.5mm built-in depth for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximize protection
Avantages
  • Powdery white with a smooth matt aspect

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour White
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
With on/off switch No
Colour of switch operator White
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 40 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 31.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Cable nature for connection Flexible or rigid
Cable support Other
Connected object No
