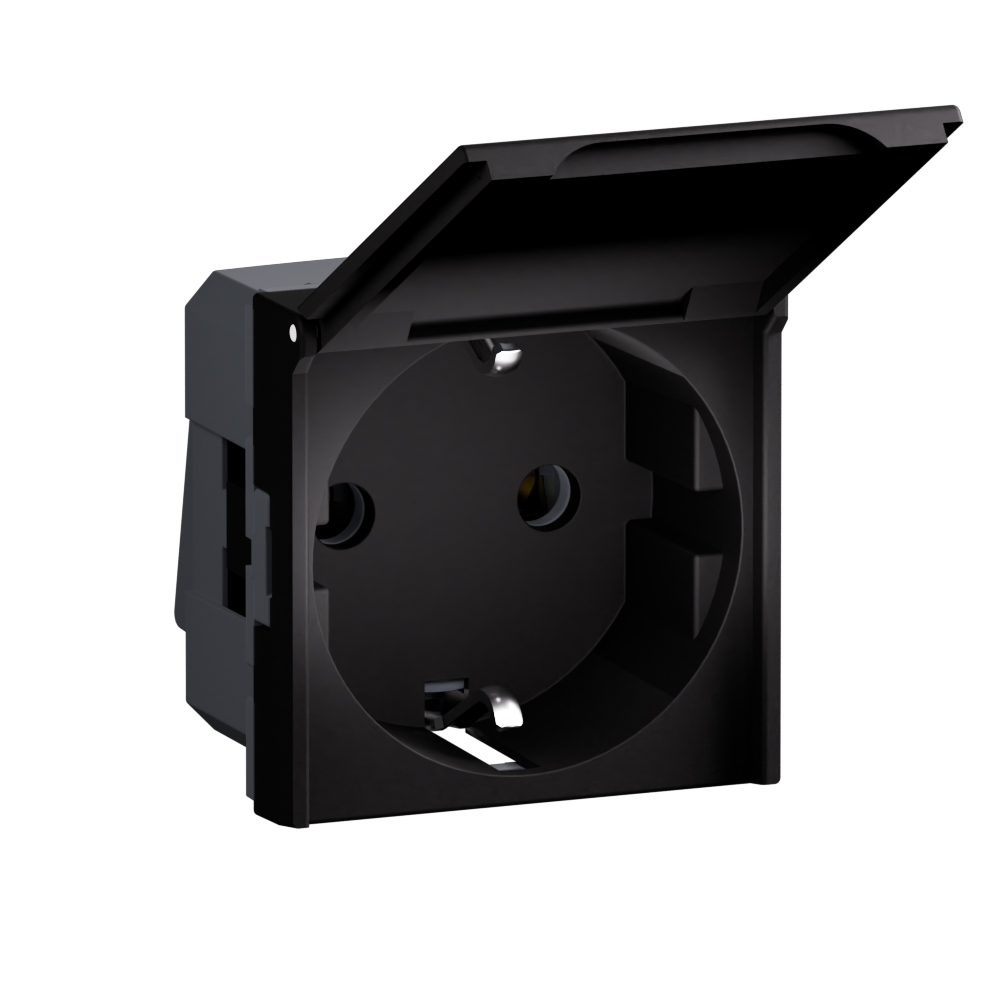

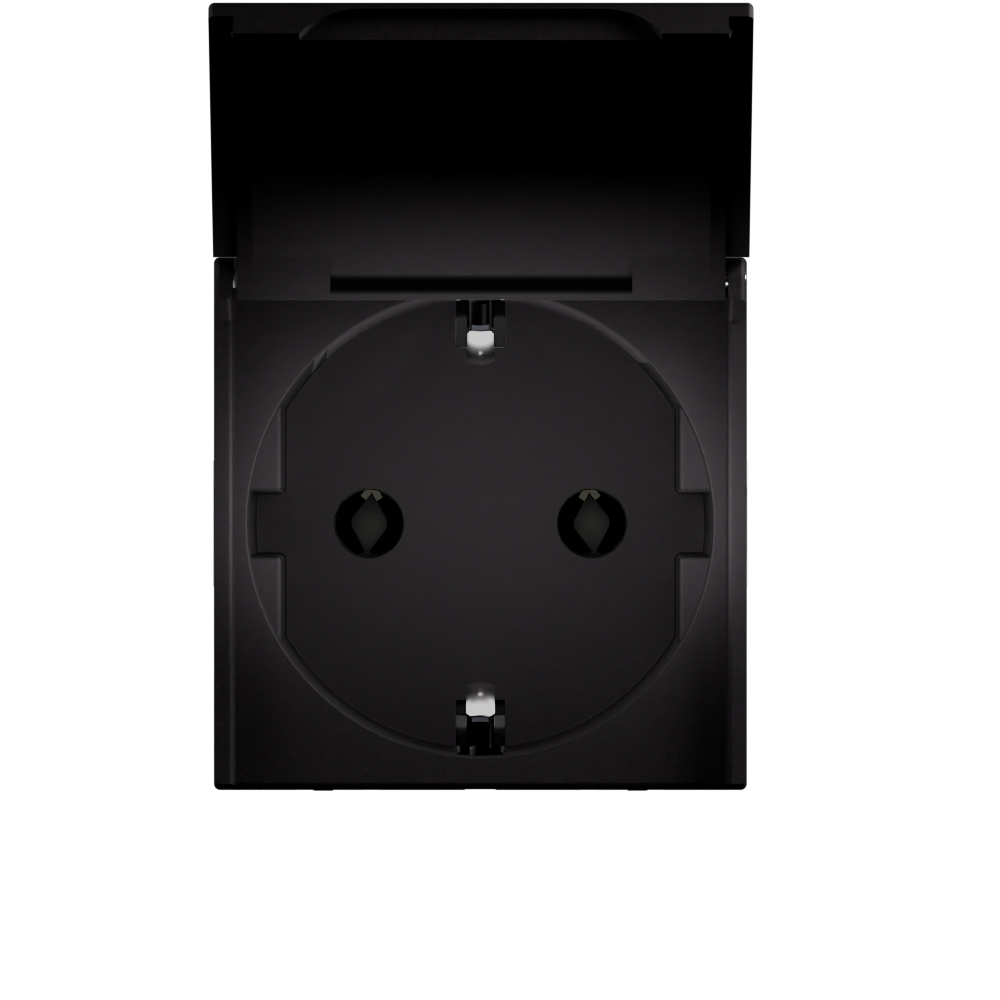

Arteor Advance - 2 modules German 16A 2 poles + earth socket with cover matt black - Type F 250V AC IP40 - Safety shutters

Arteor Advance Legrand

Arteor Advance - 2 modules German 16A 2 poles + earth socket with cover matt black - Type F 250V AC IP40 - Safety shutters

REF. AC3129MB EAN. 3414972757843
Allows connecting an electrical appliance through a 2 modules German 16A 2 poles + earth socket with cover matt black. It offers enhanced contact protection with safety shutters and screw-type terminals for secure wiring.
Download product sheet
Finition :
With hinged lid :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 2 modules German 16A 2 poles + earth socket with cover matt black. It offers enhanced contact protection with safety shutters and screw-type terminals for secure wiring.

Product characteristics
  • Two-module German type F socket outlet, 16A 250V AC, 2P+E, for modular frame mounting in Arteor Advance systems
  • Matt black thermoplastic front with lacquered, smooth matt finish for a deep, uniform appearance in technical interiors
  • Integrated earth contact (2P+E) with enhanced contact protection and safety shutters for secure appliance connection
  • Screw-type, clearly marked terminals for fast, error-free wiring of flexible or rigid conductors up to 4mm²
  • Compact 45x45x44mm module with hinged cover, IP40 IK04 rating, suitable for indoor energy distribution at 50-60Hz
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Deep black with a smooth matt aspect

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid Yes
With enhanced contact protection Yes
Label space/information surface No
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
With on/off switch No
Colour of switch operator Black
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 44 mm
Min. depth of built-in installation box 31.5 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 31.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Prewired No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 4-4 mm²
Cable support Other
Contains Batteries No
Connected object No
With voice command No
Programmable No
Connectable by Internet box No
Product use function Energy distribution
