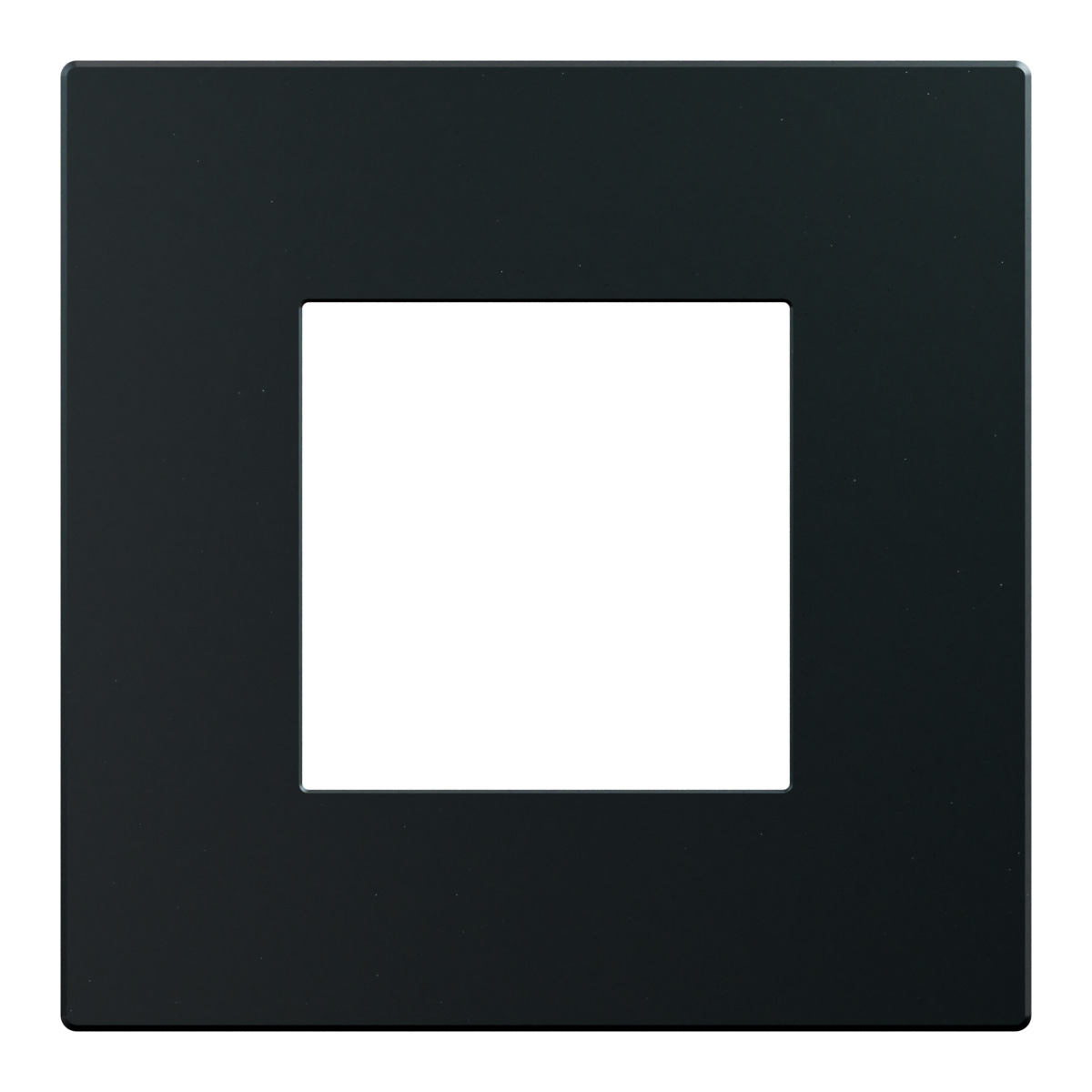

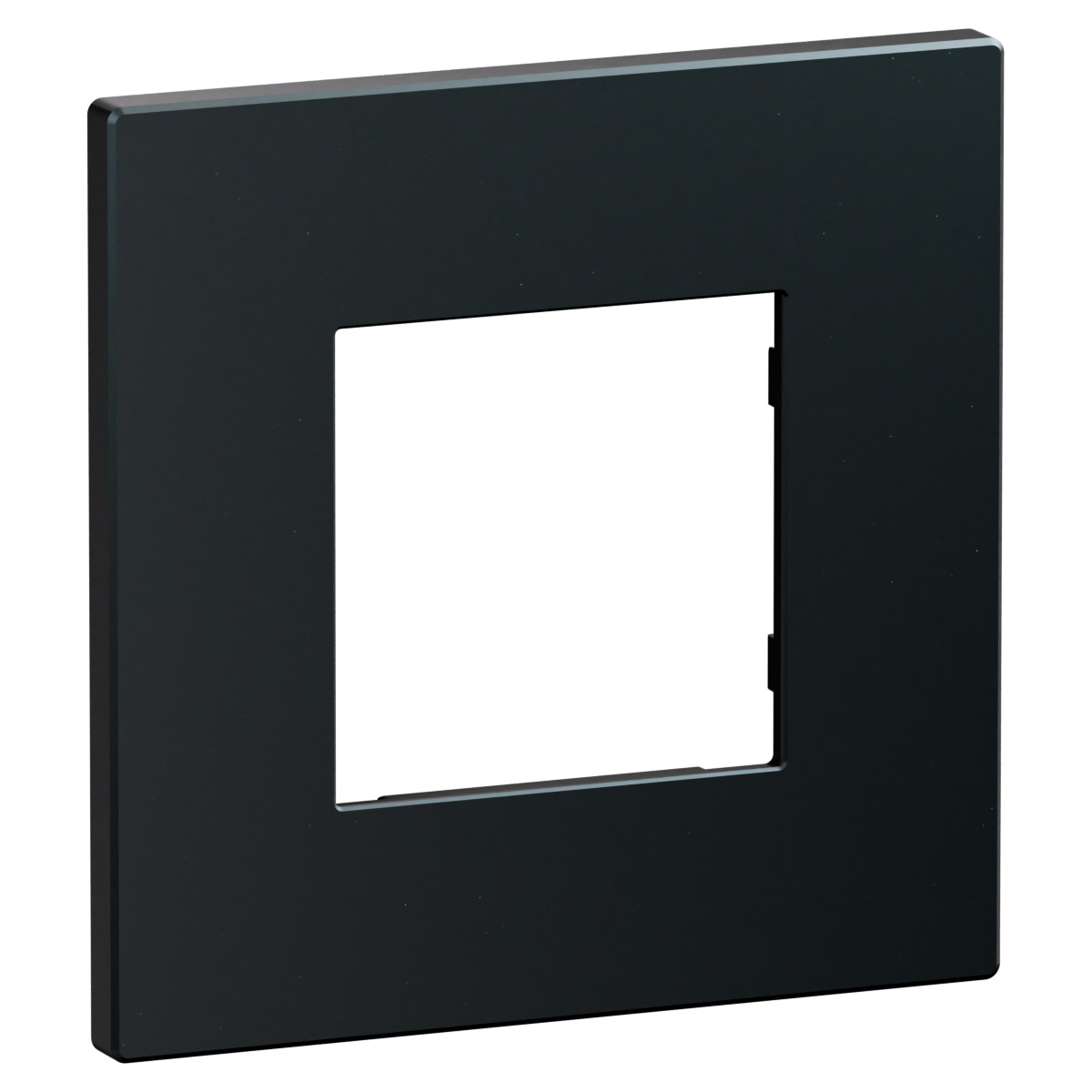

Arteor Advance - 2 modules French/Schuko plate midnight blue - Square matt lacquered aluminum - Horizontal 2 modules cover frame IP20

Arteor Advance Legrand

Arteor Advance - 2 modules French/Schuko plate midnight blue - Square matt lacquered aluminum - Horizontal 2 modules cover frame IP20

REF. AC1121NB EAN. 3414973069778
This 2 modules French/Schuko plate in midnight blue combines real plain aluminum construction with a refined square design. Its matt lacquered finish ensures long-term aesthetics against daily wear and sunlight exposure.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules French/Schuko plate in midnight blue combines real plain aluminum construction with a refined square design. Its matt lacquered finish ensures long-term aesthetics against daily wear and sunlight exposure.

Product characteristics
  • Two modules French/Schuko cover frame enabling horizontal installation of 2 devices for modular, flexible configurations
  • Midnight blue lacquered finish with dark blue pearlescent gleam for a refined, contemporary aesthetic
  • Cover plate made of real plain aluminum, halogen free, ensuring mechanical robustness and long-term visual stability
  • Square 90x90 format with 45x45 built-in opening, IP20, optimized for flush-mounted and duct installations
  • Matt metal plate with snap-on fastening and label space, designed for indoor use within the Arteor Advance range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04879EN-00.pdf pdf (0.53 Mo)
