Arteor Advance - 2 modules French/Schuko plate brushed stainless steel - Real brushed stainless steel square frame

Arteor Advance Legrand

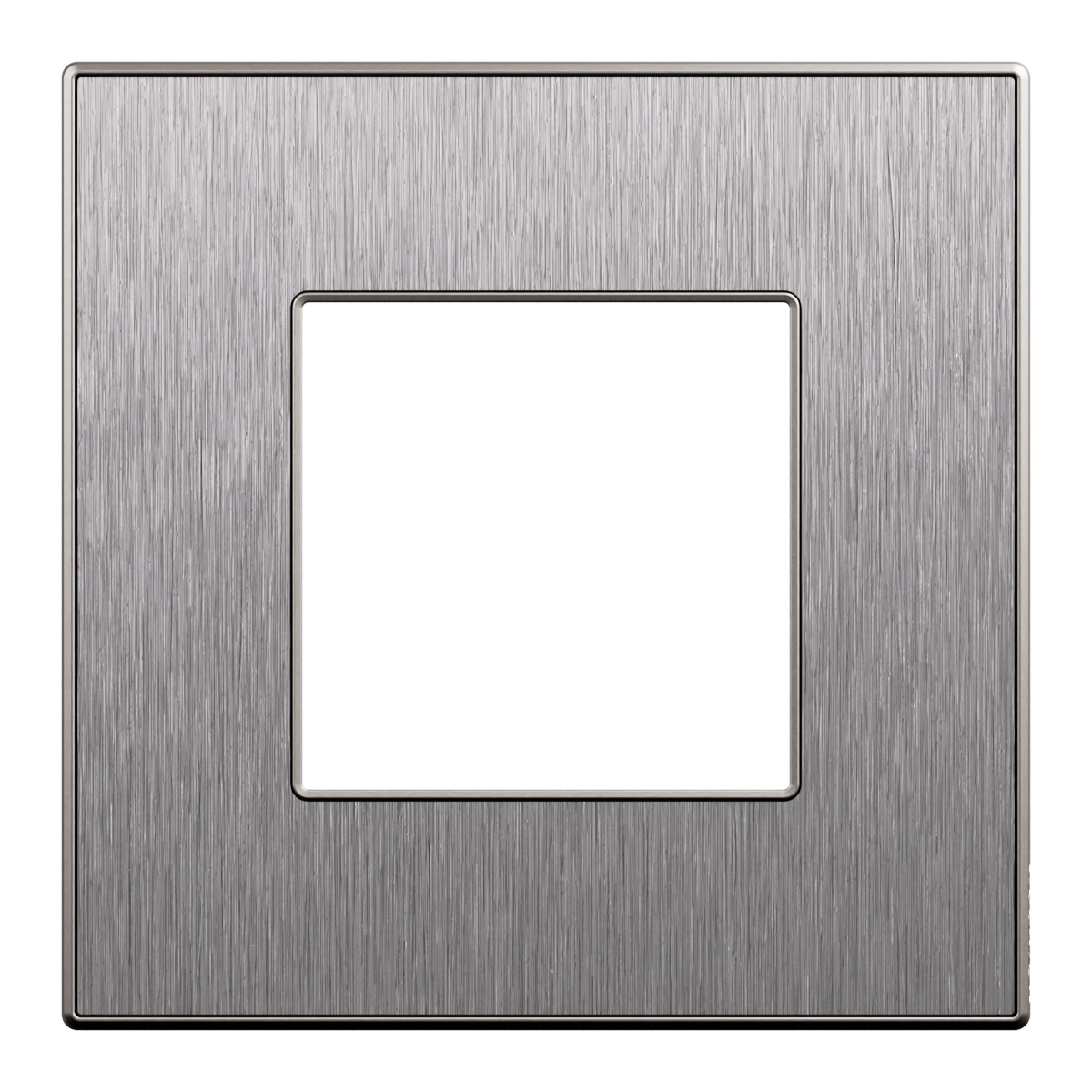

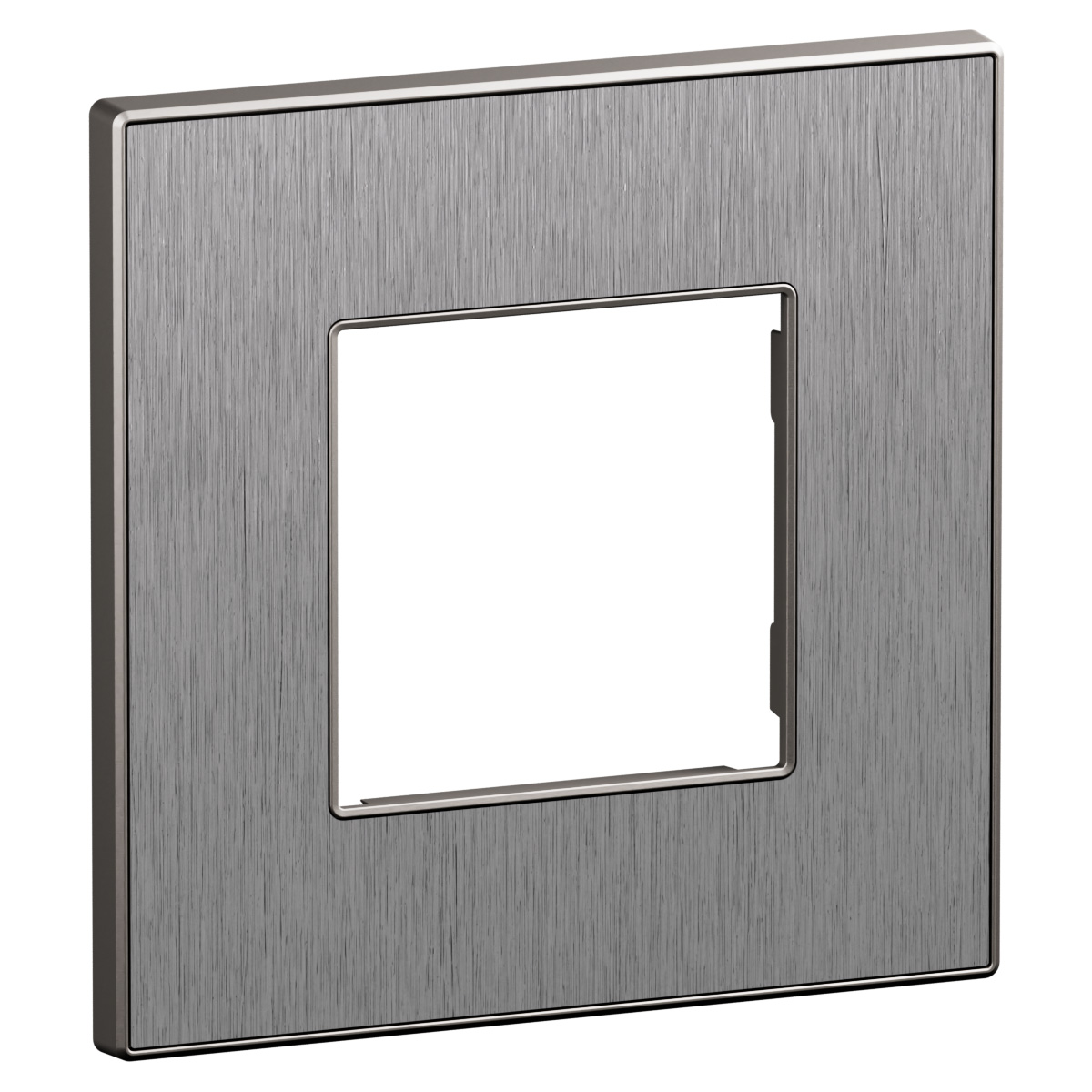

Arteor Advance - 2 modules French/Schuko plate brushed stainless steel - Real brushed stainless steel square frame

REF. AC1121BS EAN. 3414973069563
This 2 modules French/Schuko plate in brushed stainless steel offers robust IP20 protection and halogen-free construction. Its matt, real brushed stainless steel finish ensures long-term aesthetics. Snap fastening enables precise install
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2 modules French/Schuko plate in brushed stainless steel offers robust IP20 protection and halogen-free construction. Its matt, real brushed stainless steel finish ensures long-term aesthetics. Snap fastening enables precise install

Product characteristics
  • Two modules French/Schuko cover frame enabling horizontal installation of 2 devices for domestic switching applications
  • Brushed stainless steel finish with matt surface for a refined, professional aesthetic and reduced glare
  • Front plates made of real brushed stainless steel (metal, halogen free) for enhanced durability and long-term appearance retention
  • Square 90x90mm form factor with 45x45mm built-in opening, providing modularity and flexible configuration
  • IP20 flush-mounted cover frame with snap fastening, suitable for wall duct and subfloor duct box installations, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04878EN-00.pdf pdf (0.53 Mo)
