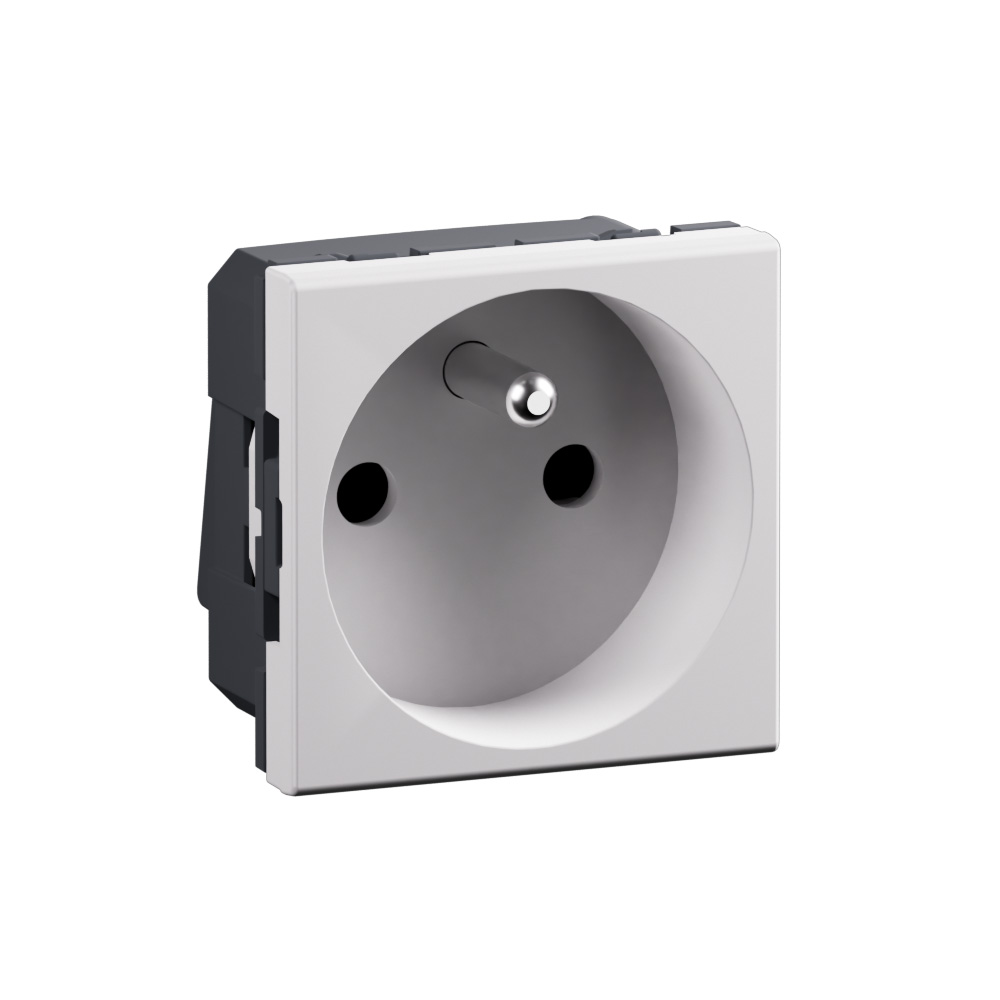

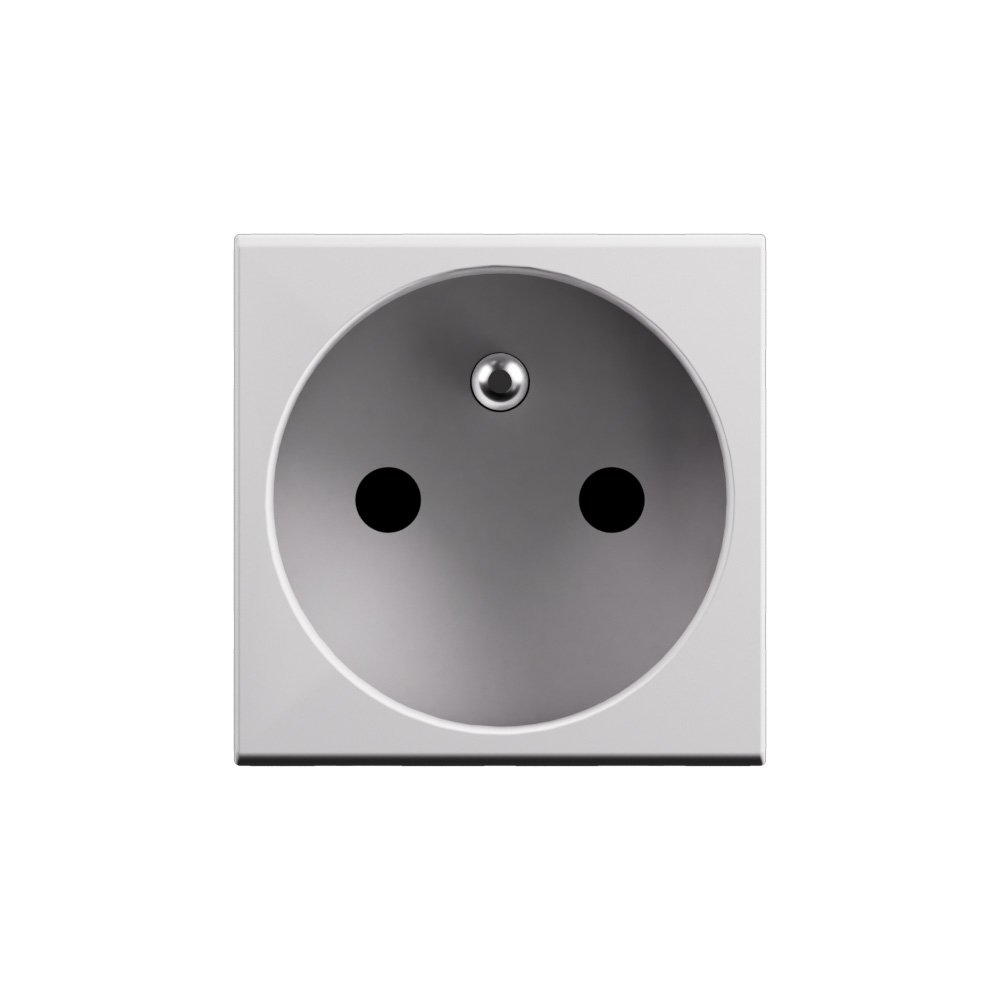

Arteor Advance - 2 modules French 2P+E socket - 250V AC 16A IP40 - Safety shutter enhanced protection - Matt white thermoplastic

Arteor Advance Legrand

Arteor Advance - 2 modules French 2P+E socket - 250V AC 16A IP40 - Safety shutter enhanced protection - Matt white thermoplastic

REF. AC3100MW EAN. 3414973074123
Allows connecting an electrical appliance through a 2-module French 10/16A 2P+E socket with earth connection. Its matt white thermoplastic body with safety shutter ensures secure indoor use.
Download product sheet
Finition :
Model :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 2-module French 10/16A 2P+E socket with earth connection. Its matt white thermoplastic body with safety shutter ensures secure indoor use.

Product characteristics
  • Two-module French standard 10/16A 2P+E socket outlet for 250V AC circuits
  • Matt white thermoplastic front with lacquered, smooth, powdery finish for a discreet appearance
  • Integrated earth pin and enhanced contact protection with safety shutter for user safety
  • Screw-type marked terminals accept 4mm² flexible or rigid conductors for fast, secure wiring
  • Modular basic element with central cover plate for snap mounting in Arteor Advance frames, IP40 IK04 rated
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has prewired screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutter to maximise protection
Avantages
  • Powdery white with a smooth matt aspect

Technical characteristics

Model Earthing pin
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour White
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
With on/off switch No
Colour of switch operator White
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 37 mm
Min. depth of built-in installation box 27.7 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 28 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 4-4 mm²
Cable support Other
Connected object No
