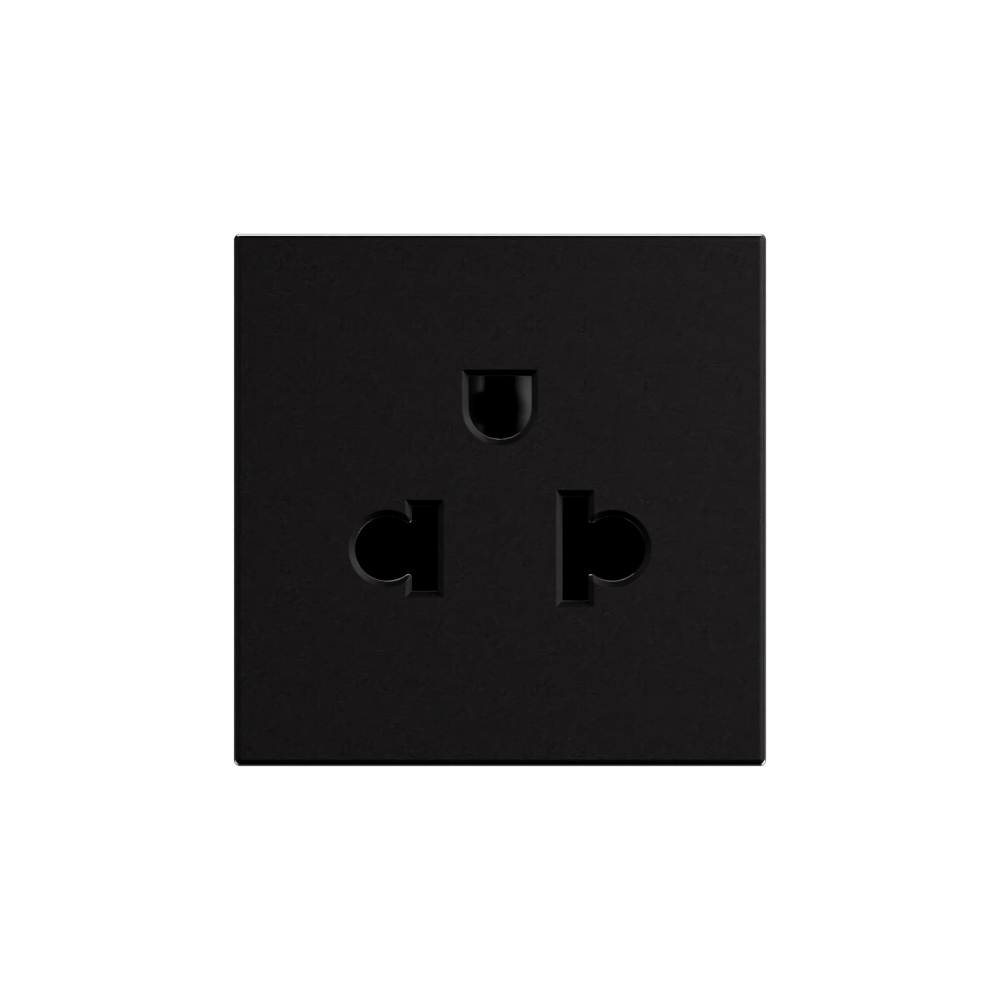

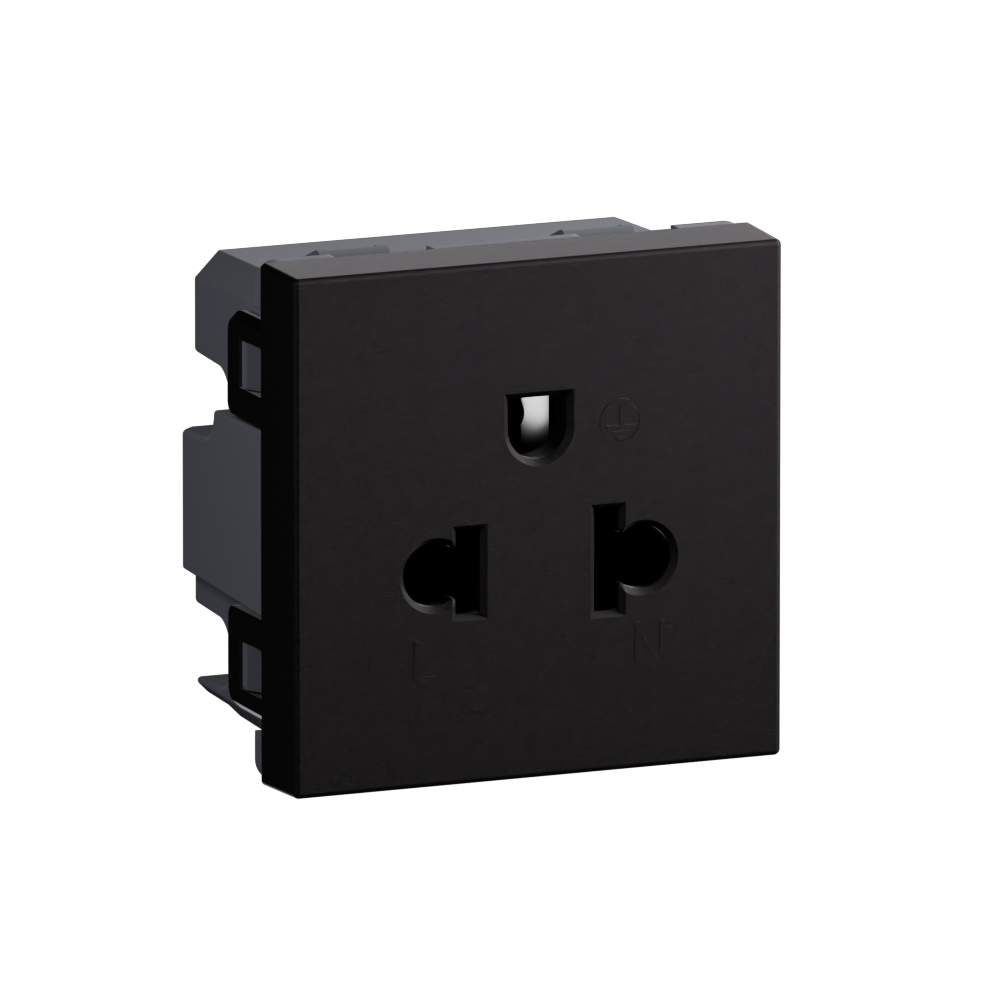

Arteor Advance - 2 modules euro-us 16A 2 poles + earth shuttered socket matt black - 2P+E 250V AC 50-60Hz - Safety shutters

Arteor Advance Legrand

Arteor Advance - 2 modules euro-us 16A 2 poles + earth shuttered socket matt black - 2P+E 250V AC 50-60Hz - Safety shutters

REF. AC3161MB EAN. 3414972758383
Allows connecting an electrical appliance through a 2 modules Euro-US 16A 250V 2P+E multi-standard socket. Its matt black thermoplastic body with insulated mounting and IP20 rating ensures robust indoor use with safety shutters.
Download product sheet
Finition :
Number of modules (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 2 modules Euro-US 16A 250V 2P+E multi-standard socket. Its matt black thermoplastic body with insulated mounting and IP20 rating ensures robust indoor use with safety shutters.

Product characteristics
  • Two-module Euro-US multi-standard socket outlet, 16A 2P+E, 250V AC, for module-frame mounting
  • Matt black thermoplastic front with smooth, deep black matt finish for a discreet technical aesthetic
  • Features round protective earth contact and safety shutters for enhanced user protection
  • Screw-type, marked terminals with 1to4mm² capacity for easy, secure wiring and clear identification
  • Modular 2M basic element with central cover plate, 45x45mm, IP20, IK04, for insulated indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Deep black with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Colour of switch operator White
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 28.7 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 21.7 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery Yes
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Cable support Not applicable
