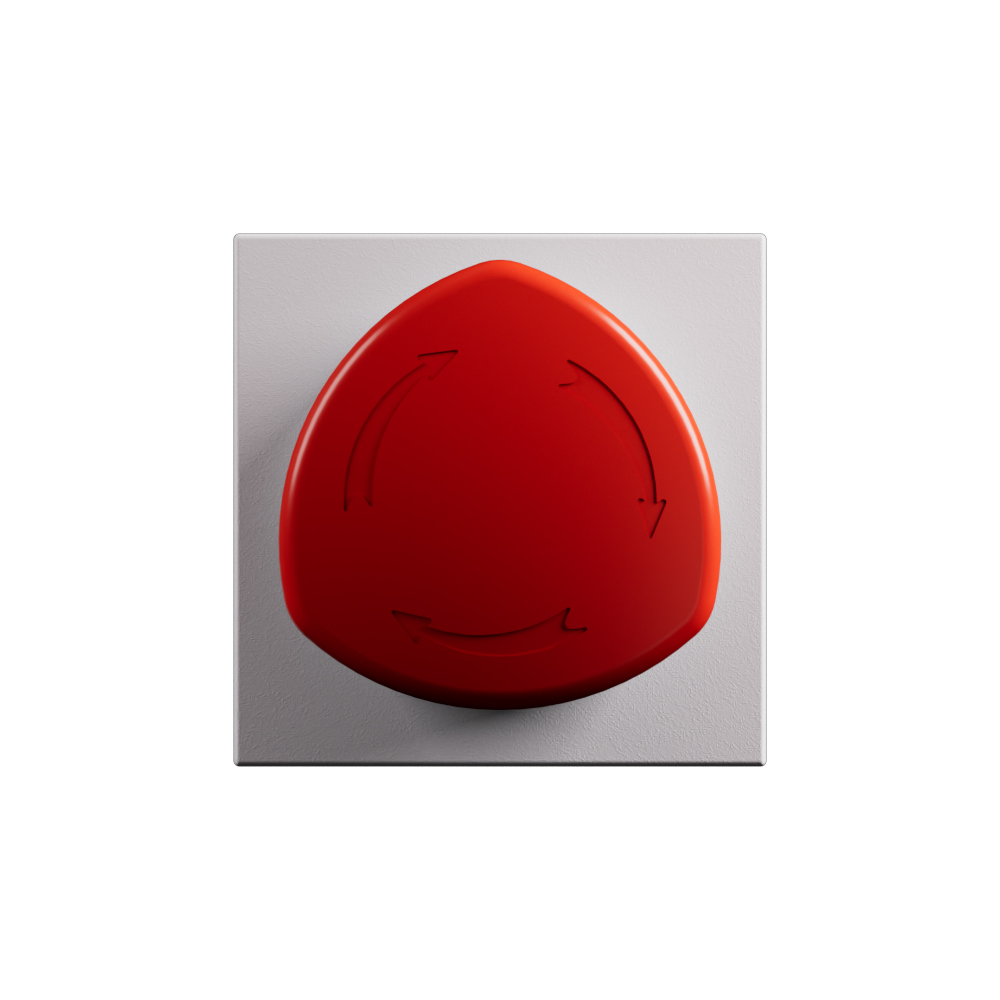

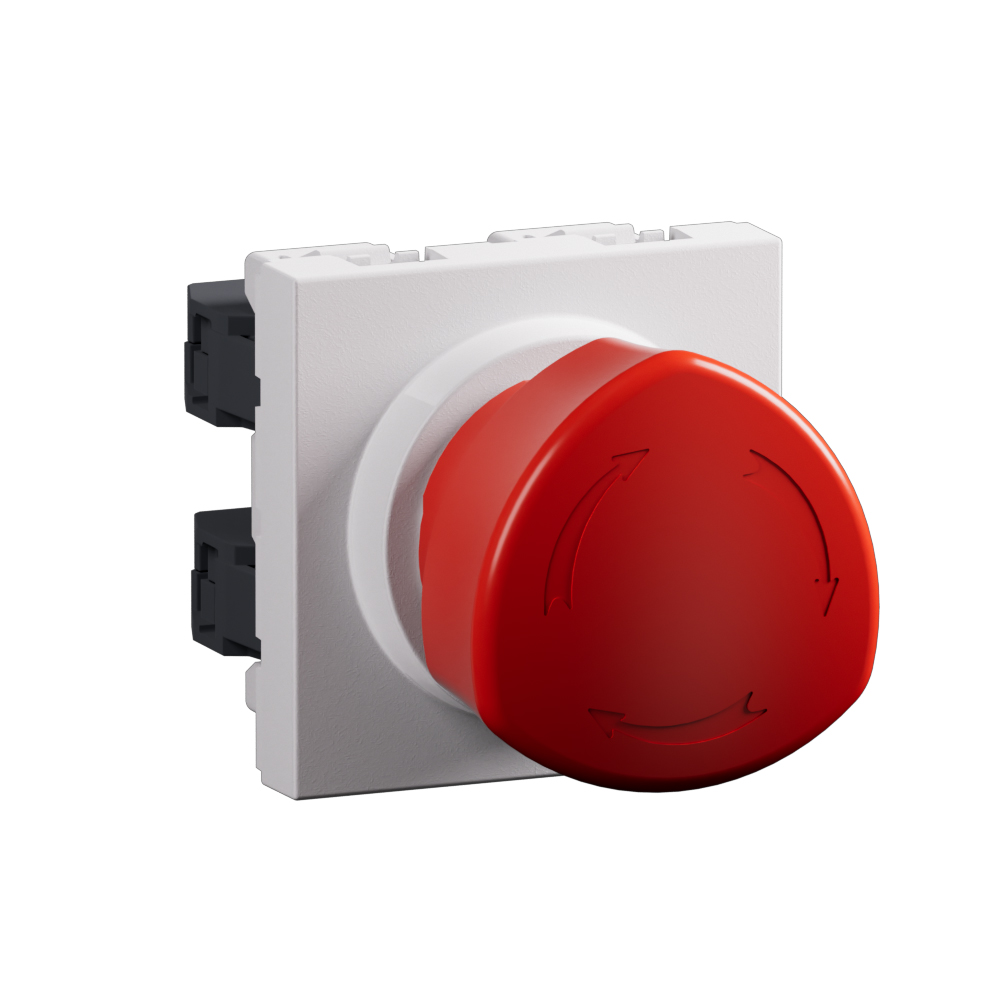

Arteor Advance - 2 modules emergency stop button - Turn-release 1/4 turn unlocking - 1 NO + 1 NC contacts - IP41 IK04 indoor use

Arteor Advance Legrand

Arteor Advance - 2 modules emergency stop button - Turn-release 1/4 turn unlocking - 1 NO + 1 NC contacts - IP41 IK04 indoor use

REF. AC630 EAN. 3414972768344
The 2 modules emergency stop button offers reliable turn-release unlocking with 1NO+1NC contact for secure emergency shutdown. Its built-in mounting, 22.5mm hole diameter, and IP41 IK04 protection ensure robust integration in indoor panels.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The 2 modules emergency stop button offers reliable turn-release unlocking with 1NO+1NC contact for secure emergency shutdown. Its built-in mounting, 22.5mm hole diameter, and IP41 IK04 protection ensure robust integration in indoor panels.

Product characteristics
  • Two-module emergency stop button, 10A 250V, for built-in mounting in Arteor Advance systems
  • 1 NO + 1 NC contact configuration with screw terminals, supporting 2.5mm² to 2.5mm² conductors
  • IP41 and IK04 ratings for indoor applications requiring basic impact and ingress protection
  • 1/4 turn unlocking with turn-release mechanism for quick and secure emergency reset
  • 22.5mm actuator hole diameter with 45x45mm front dimensions and 68.3mm depth, operating from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

Technical characteristics

Unlocking method Turn-release
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Degree of protection (IP) IP41
Mounting method Built-in
With lighting No
Hole diameter 22.5 mm
Connection type auxiliary circuit Screw connection
Width 45 mm
Height 45 mm
Depth 68.3 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminals capacity (Min-Max) 2.5-2.5 mm²
