Arteor Advance - 2 modules duplex keystone adapter rose - 2-module double keystone faceplate - Flush-mounted IP20 plastic, halogen free

Arteor Advance Legrand

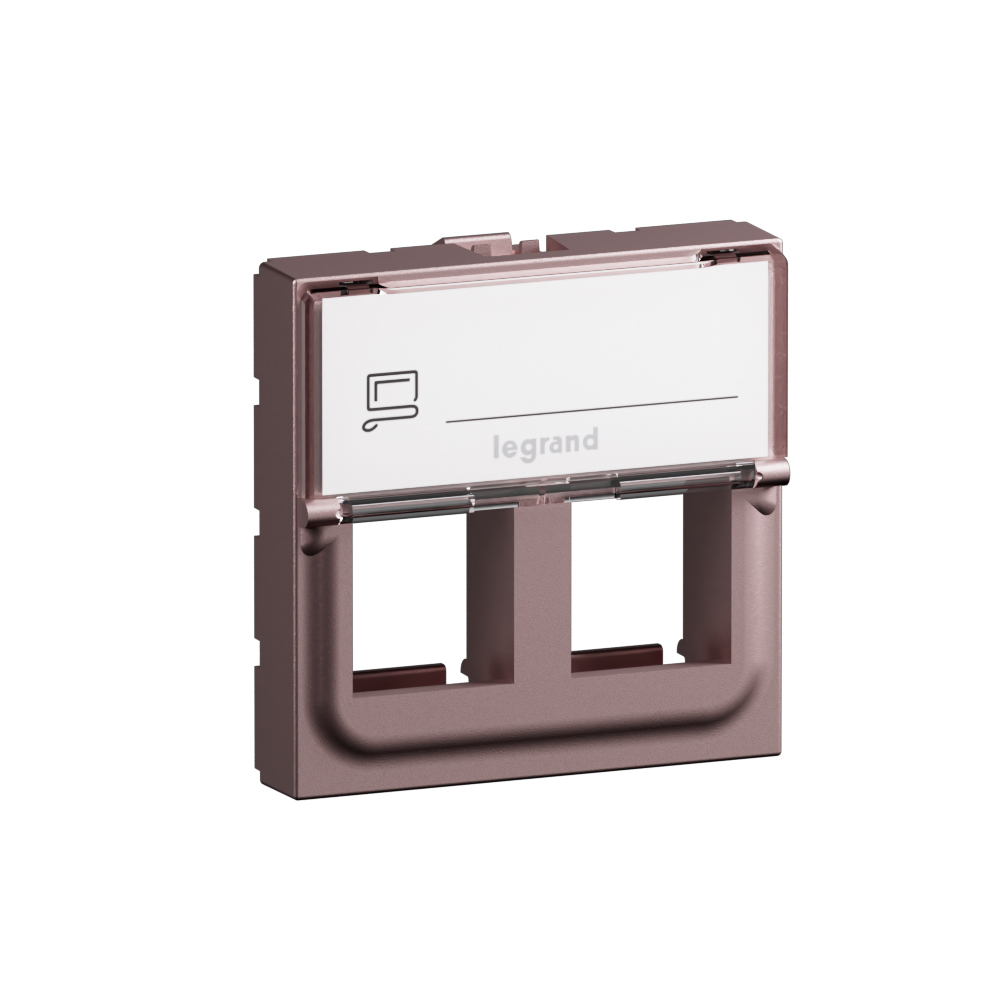

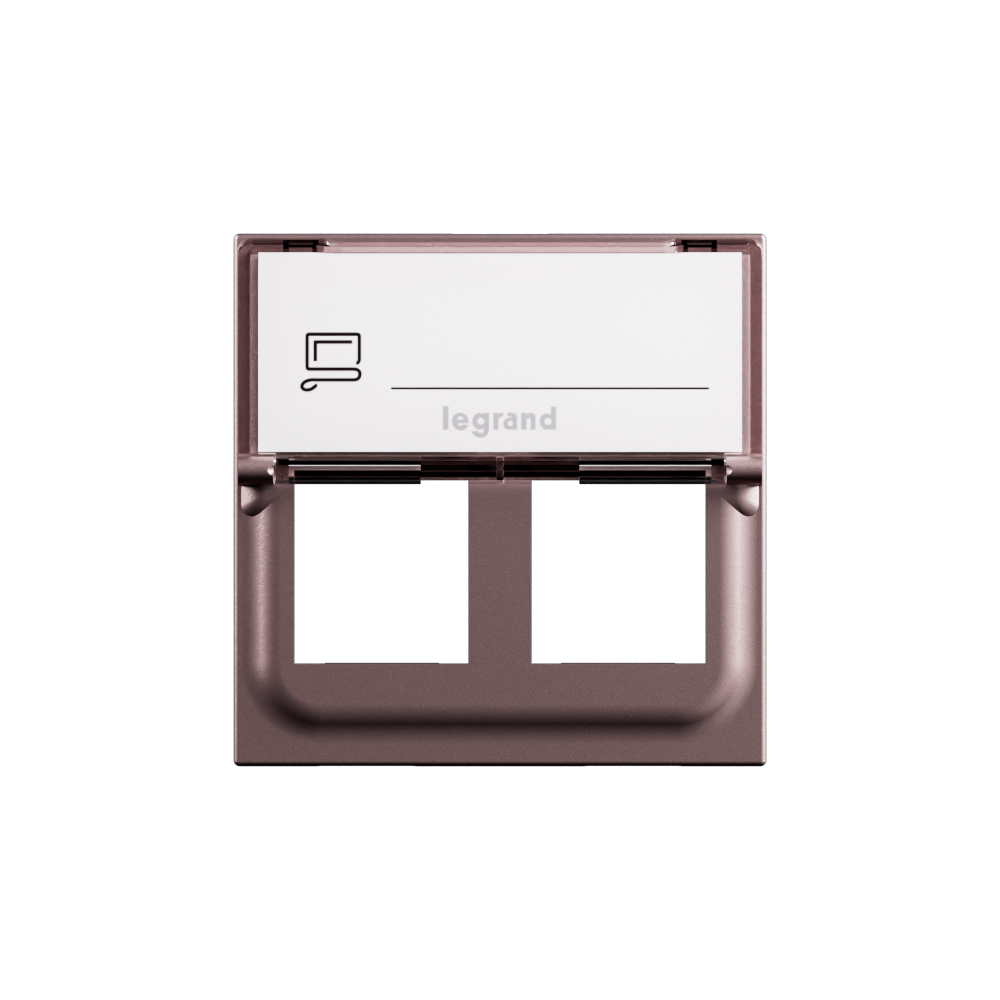

Arteor Advance - 2 modules duplex keystone adapter rose - 2-module double keystone faceplate - Flush-mounted IP20 plastic, halogen free

REF. AC171RS EAN. 3414972922432
Faceplate with 2 modules duplex keystone adapter rose delivers efficient mounting for double Keystone data connectors. Its flush-mounted thermoplastic body with matt lacquered finish ensures IP20, IK03 performance.
Download product sheet
Finition :
Suitable for number of connectors :
You can only compare 4 products, you must remove 1 to add this one

Description

Faceplate with 2 modules duplex keystone adapter rose delivers efficient mounting for double Keystone data connectors. Its flush-mounted thermoplastic body with matt lacquered finish ensures IP20, IK03 performance.

Product characteristics
  • Two-module duplex keystone adapter providing two RJ connector positions in a compact 2M format for structured cabling outlets
  • Rose-colored finish coordinated with Arteor Advance aesthetics for visually distinctive data outlet identification
  • Equipped with a transparent snap-in label holder in the intermediate ring for durable, imprintable port marking
  • Compatible with single and double-port data socket faceplates, enabling flexible configuration of communication outlets with clear identification
  • Designed for double Keystone format, supporting two keystone connectors in a 45mmx45mm flush-mounted housing

The product's benefits

Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Assembly arrangement Basic element with housing top
Utilization Mounting cover data connector
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint Yes
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Other
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
Suitable for number of connectors 2
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 20.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 9.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
S000127779AR-00.pdf pdf (0.22 Mo)
