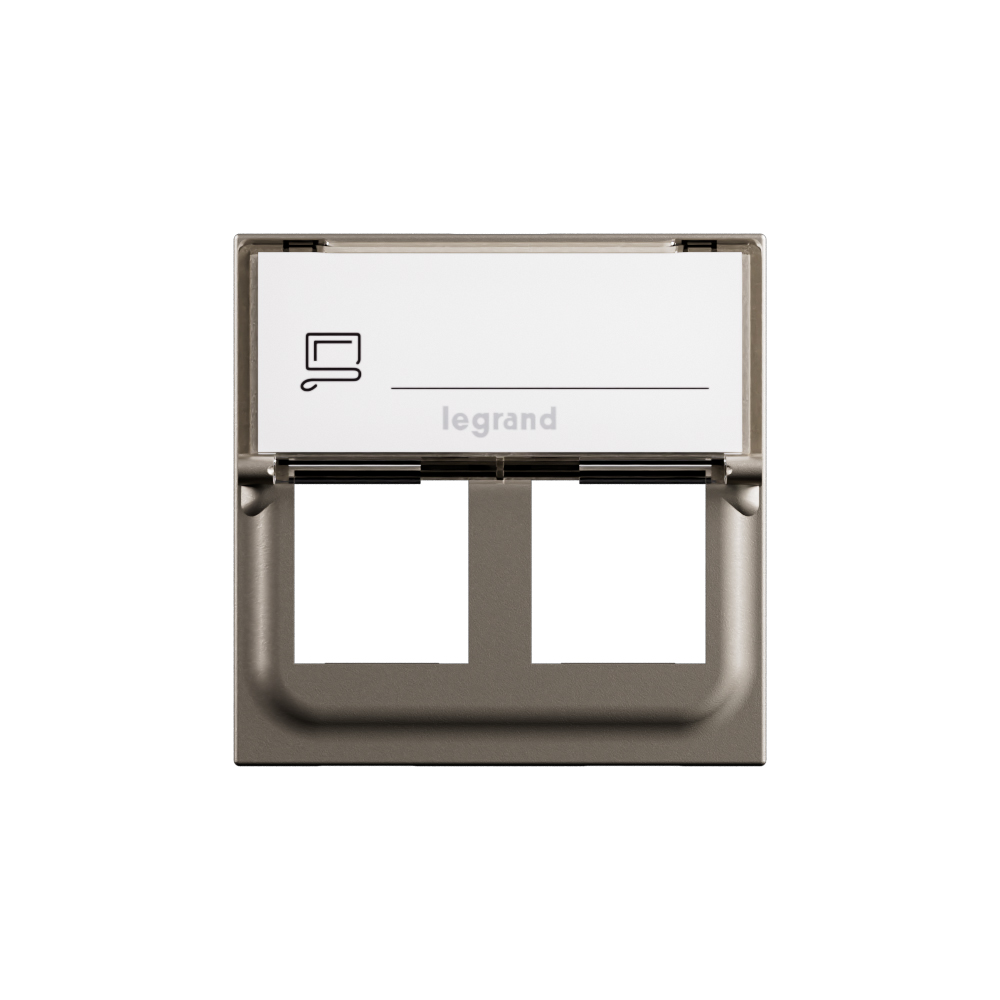

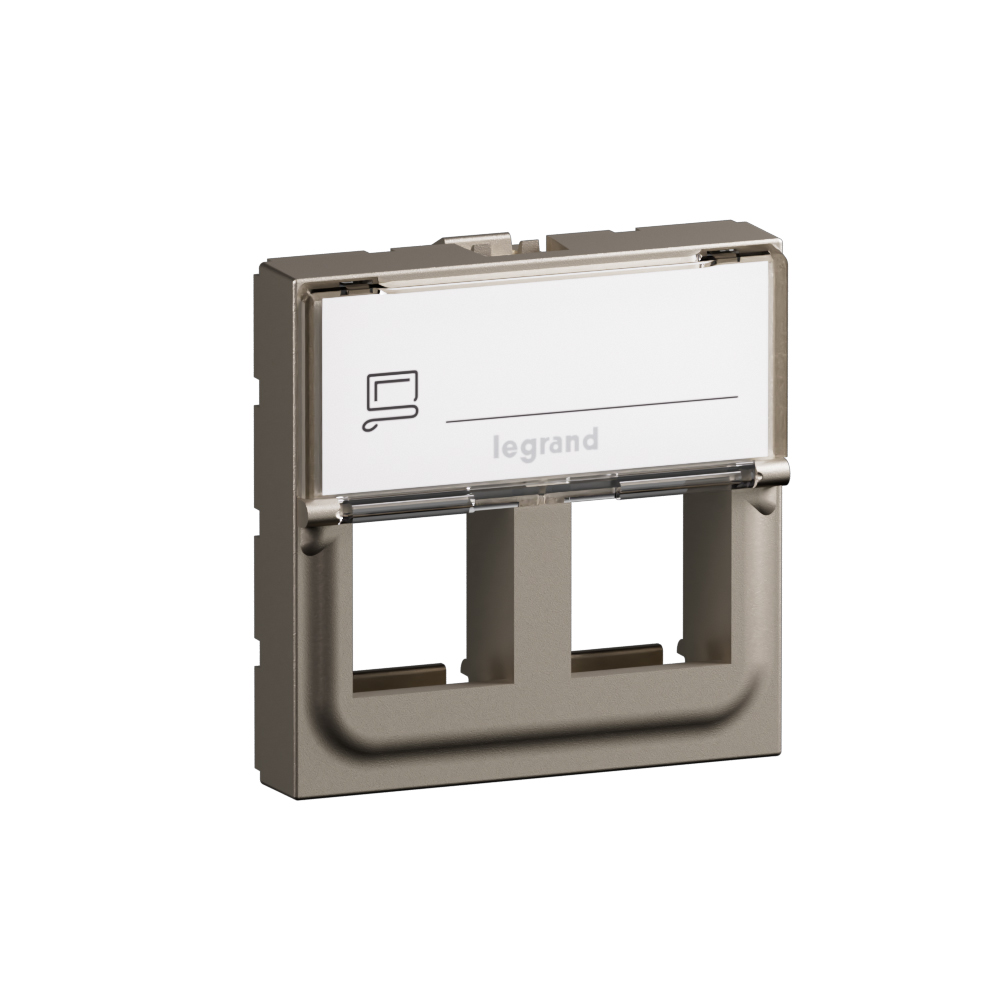

Arteor Advance - 2 modules duplex keystone adapter champagne - 2-module double keystone faceplate - Flush-mounted plastic, matt gold

Arteor Advance Legrand

Arteor Advance - 2 modules duplex keystone adapter champagne - 2-module double keystone faceplate - Flush-mounted plastic, matt gold

REF. AC171CH EAN. 3414972922371
Faceplate for 2 modules duplex keystone adapter champagne, offering 2 straight outlets in a compact 45x45mm format. Halogen-free thermoplastic with matt lacquered gold finish. Flush-mounted snap fastening and IP20 rating.
Download product sheet
Finition :
Suitable for number of connectors :
You can only compare 4 products, you must remove 1 to add this one

Description

Faceplate for 2 modules duplex keystone adapter champagne, offering 2 straight outlets in a compact 45x45mm format. Halogen-free thermoplastic with matt lacquered gold finish. Flush-mounted snap fastening and IP20 rating.

Product characteristics
  • Two-module duplex keystone adapter providing two RJ connector positions in a 45x45mm flush-mounted format
  • Champagne (gold) matt lacquered thermoplastic finish aligned with Arteor Advance aesthetic requirements
  • Equipped with a transparent snap-in label holder for clear, durable port identification
  • Compatible with single and double-port data socket faceplates for structured cabling outlets
  • Designed specifically for double Keystone format, straight outlet direction, IP20, IK03

The product's benefits

Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Assembly arrangement Basic element with housing top
Utilization Mounting cover data connector
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint Yes
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
Type of fastening Engage (snap)
Number of modules (module system) 2
Suitable for number of connectors 2
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK03
Device width 45 mm
Device height 45 mm
Device depth 20.5 mm
Min. depth of built-in installation box 40 mm
Built-in depth 9.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
