Arteor Advance - 2 modules British standard 13A 2 poles + earth unswitched socket rose - 2M BS 13A 2P+E - Screw terminals IP20

Arteor Advance Legrand

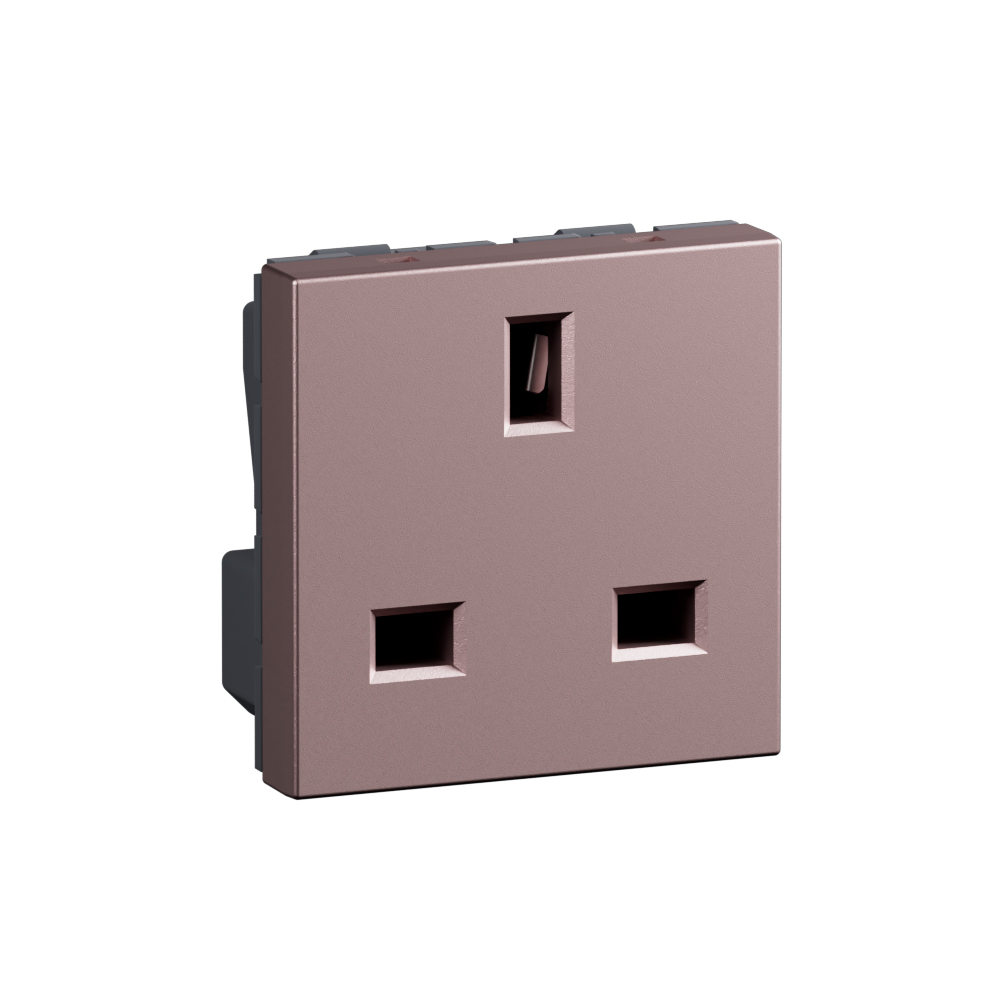

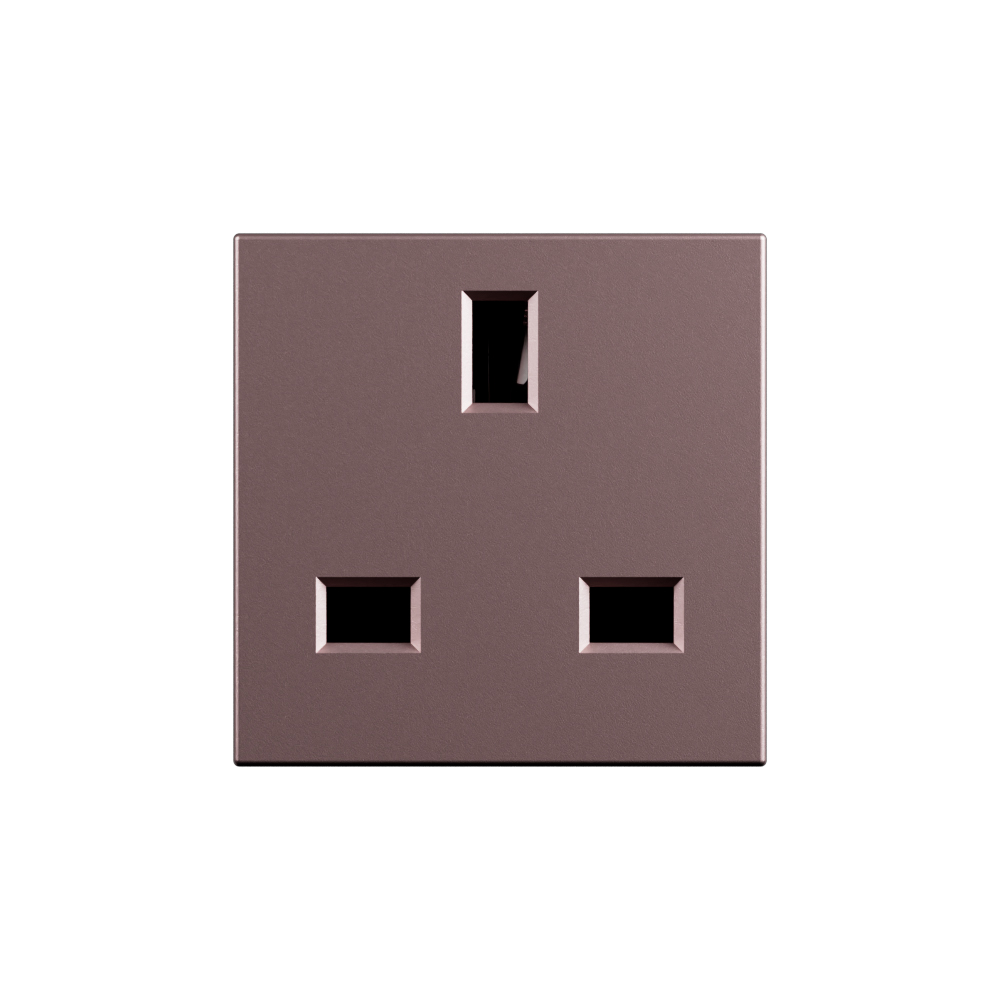

Arteor Advance - 2 modules British standard 13A 2 poles + earth unswitched socket rose - 2M BS 13A 2P+E - Screw terminals IP20

REF. AC3142RS EAN. 3414972925617
Allows connecting an electrical appliance through a 2 modules British Standard 13A 2 poles+earth unswitched socket rose. Insulated IP20 thermoplastic body with safety shutters maximizes protection for indoor AC250V 50-60Hz installations.
Download product sheet
Finition :
Nominal current :
Concurrently switching neutral conductor :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 2 modules British Standard 13A 2 poles+earth unswitched socket rose. Insulated IP20 thermoplastic body with safety shutters maximizes protection for indoor AC250V 50-60Hz installations.

Product characteristics
  • Two-module British Standard 13A 2P+E unswitched socket outlet for 250V AC, 50-60Hz circuits
  • Rose finish front plate matching Arteor Advance aesthetic requirements
  • Integrated earth (protective) contact for compliant grounding of connected equipment
  • Clearly marked screw terminals with terminal marking indication for fast, error-free wiring
  • Halogen-free thermoplastic, IP20, IK04, insulated mounting design for indoor installations with 1mm² to 4mm² flexible or rigid conductors
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Pink finish evoking subtle blush effect

Technical characteristics

Model British Standard
Concurrently switching neutral conductor No
Protective contact Flat
Number of active contacts (round) 0
Number of active contacts (flat) 2
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour Other
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 27.7 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 19.2 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Cable support Not applicable
Contains Batteries No
Connected object No
