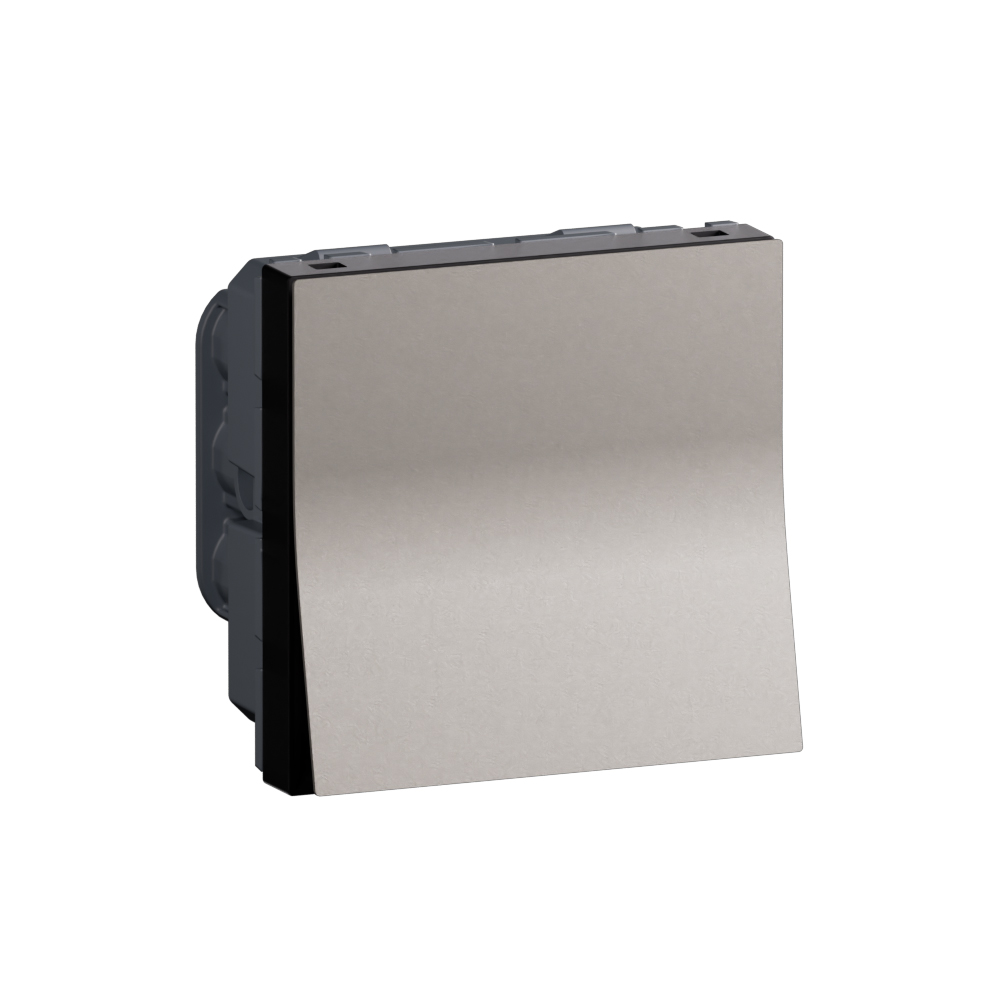

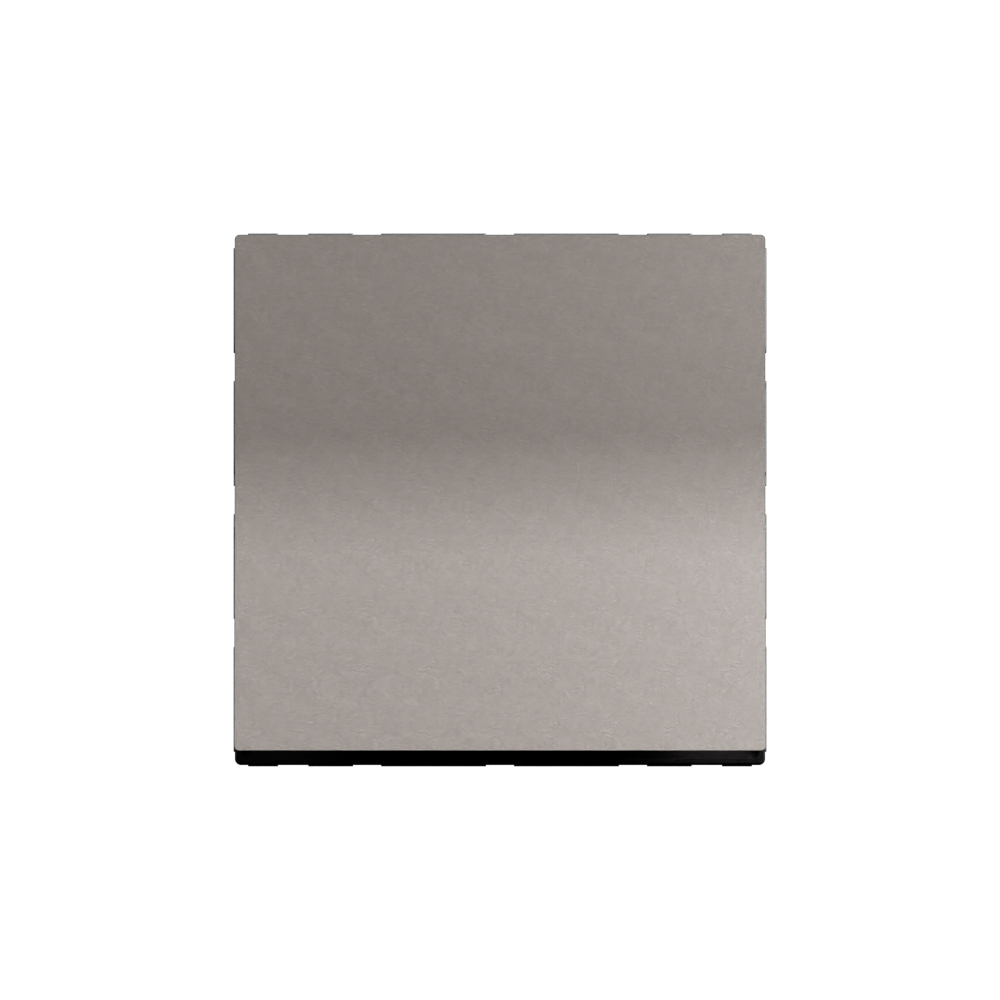

Arteor Advance - 2 modules all lights on/off master switch matt titanium - 2M two-way rocker - 230V AC 10A IP20 - Screw terminals

Arteor Advance Legrand

Arteor Advance - 2 modules all lights on/off master switch matt titanium - 2M two-way rocker - 230V AC 10A IP20 - Screw terminals

REF. AC22114MT EAN. 3414972748087
Allows control of light from two locations with a 2 modules master ON/OFF rocker. The matt titanium finish and modular square format ensure seamless integration in Arteor Advance frames. Rated 230V AC, 10A with screw terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 2 modules master ON/OFF rocker. The matt titanium finish and modular square format ensure seamless integration in Arteor Advance frames. Rated 230V AC, 10A with screw terminals.

Product characteristics
  • Two-module master switch for centralized all-lights ON/OFF control in modular lighting installations
  • Matt titanium lacquered finish for a contemporary, low-glare aesthetic matching Arteor Advance devices
  • Single titanium rocker/button mechanism engineered for smooth, precise two-way switching operation
  • 20A rating at 230V AC, suitable for switching full rated current on inductive and resistive SBL loads and LED circuits
  • Screw-type terminals with 0.75mm² to 1.5mm² capacity and snap-in modular mounting for secure, efficient installation in IP20 indoor environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Titanium with a smooth matte aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Colour of switch operator Titanium
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
Nominal voltage 230 V
Rated current 10 A
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
