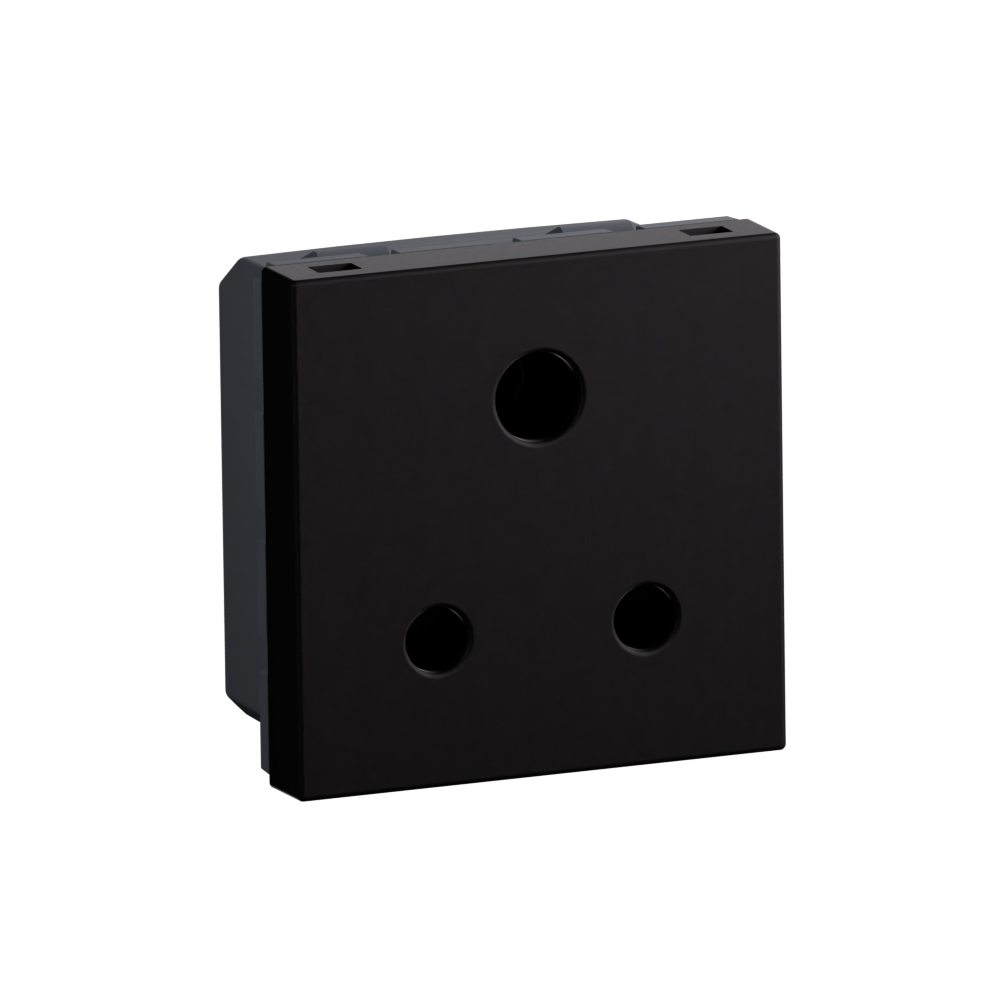

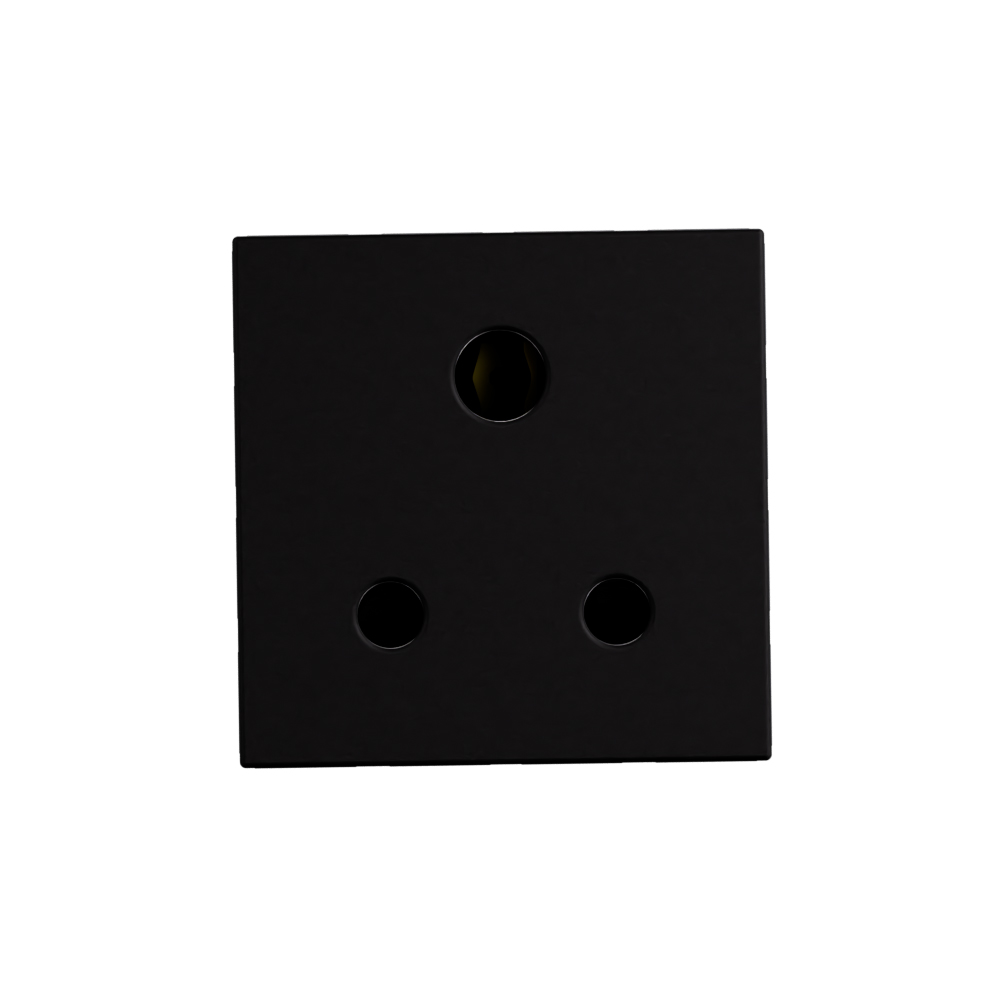

Arteor Advance - 2 modules 6A 3 pin socket with ISI marking matt black - Flush-mounted outlet - Screw terminals - Safety shutters

Arteor Advance Legrand

Arteor Advance - 2 modules 6A 3 pin socket with ISI marking matt black - Flush-mounted outlet - Screw terminals - Safety shutters

REF. AC3163MB EAN. 3414972758567
Allows connecting an electrical appliance with a 2-module 6A 3 pin socket, 240V AC, IP20. It features screw-type terminals with marked indications for secure, easy wiring and safety shutters. The matt black thermoplastic finish delivers.
Download product sheet
Finition :
Number of socket outlets :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance with a 2-module 6A 3 pin socket, 240V AC, IP20. It features screw-type terminals with marked indications for secure, easy wiring and safety shutters. The matt black thermoplastic finish delivers.

Product characteristics
  • Two-module 6A 3-pin socket outlet for 240V AC energy distribution in modular domestic installations
  • Matt black thermoplastic front with lacquered smooth finish for a deep, low-glare aesthetic
  • Clearly marked screwed terminals for easy identification and secure connection of flexible or rigid cables
  • Flush-mounted, 2M Arteor Advance device with snap mounting, 45mmx45mm, suitable for indoor use (IP20, IK02)
  • Integrated safety shutters to enhance user protection when connecting electrical appliances
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Deep black with a smooth matte finish

Technical characteristics

Model Other
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Modular device for domestic switching devices
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
Label space/information surface No
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch No
Rotated central insert No
Nominal current 6 A
Nominal voltage 240 V
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Device width 45 mm
Device height 45 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery No
USB Output Power 0 W
Terminal marking indication Yes
Prewired No
Cable nature for connection Flexible or rigid
Cable support Not applicable
Contains Batteries No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Energy distribution
