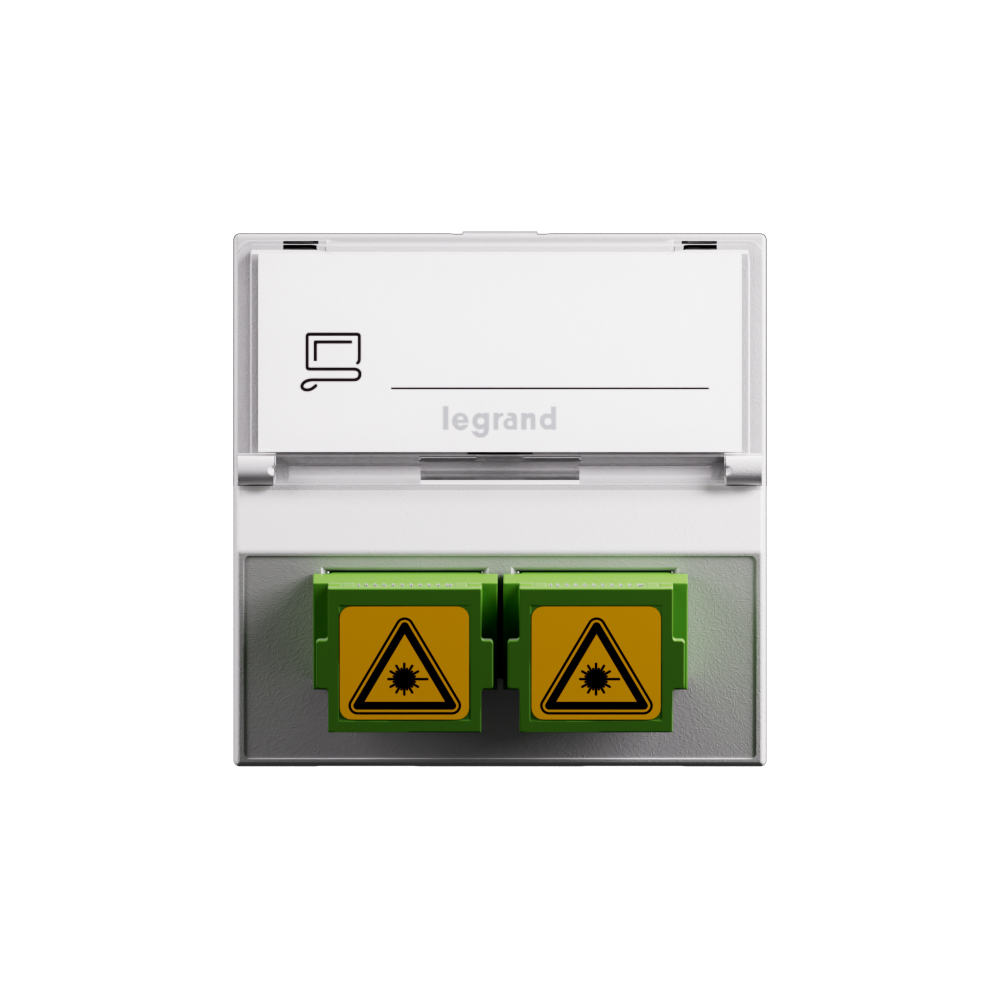

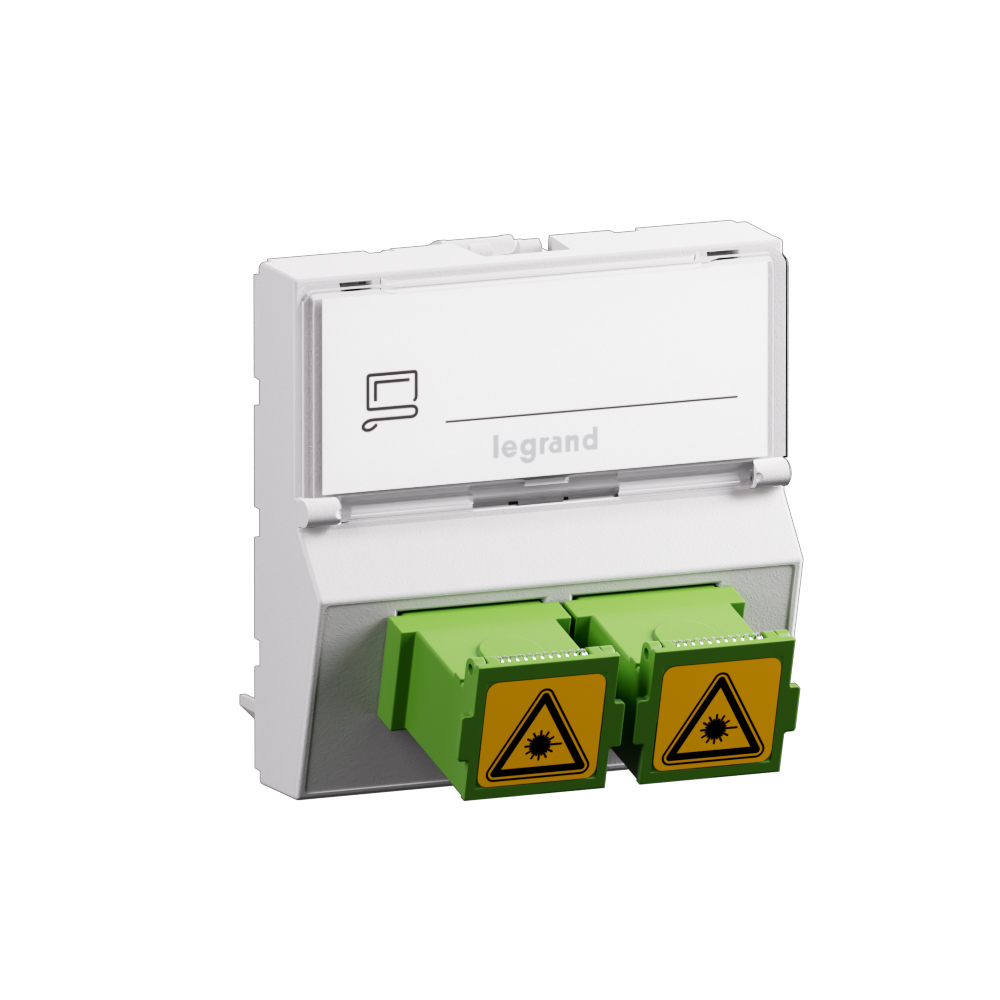

Arteor Advance - 2 modules 2xSC/APC optical fiber socket matt white - Duplex feedthrough - Push-pull SC/APC connection - IP21 IK04

Arteor Advance Legrand

Arteor Advance - 2 modules 2xSC/APC optical fiber socket matt white - Duplex feedthrough - Push-pull SC/APC connection - IP21 IK04

REF. AC4353MW EAN. 3414972765343
The fiber optic feedthrough sockets have duplex or double simplex feedthroughs for SC/APC multi-mode links. They enable secure push-pull connection of two fibers with shutter dust protection.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The fiber optic feedthrough sockets have duplex or double simplex feedthroughs for SC/APC multi-mode links. They enable secure push-pull connection of two fibers with shutter dust protection.

Product characteristics
  • Two-module 45x45mm form factor for high-density fiber termination in Arteor Advance installations
  • Matt white finish with smooth, powdery aspect for discreet integration in technical and architectural environments
  • Duplex feedthrough design enabling push-pull connection of two optical fibers (2 inputs/2 outputs) fitted with SC/APC connectors
  • SC/APC multimode interface suitable for a wide range of active devices and compliant with ISO/IEC 11801, EN 50173, and IEC 60874-19-3
  • Feedthrough socket supplied with dust protection shutters and protective caps, featuring a clear label space/nameplate holder for circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Fits perfectly in your environment. Designed in harmony with the large Arteor advance range
Avantages
  • Suitable for a large number of active devices. Recommended in the generic standards ISO/IEC 11801 and EN 50173. Conform to IEC 60874-19-3.
  • Powdery white with a smooth matt aspect

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Engage (snap)
Type of connector SC
Colour White
Centre plate No
With cover frame No
With label space Yes
With strain relief No
Wire stock No
Outlet direction Downwards
Dust protection cap Shutter
Device width 45.05 mm
Device depth 29.5 mm
Device height 45 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP21
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -40-85 °C
Antimicrobial treatment No
Label space/information surface Yes
