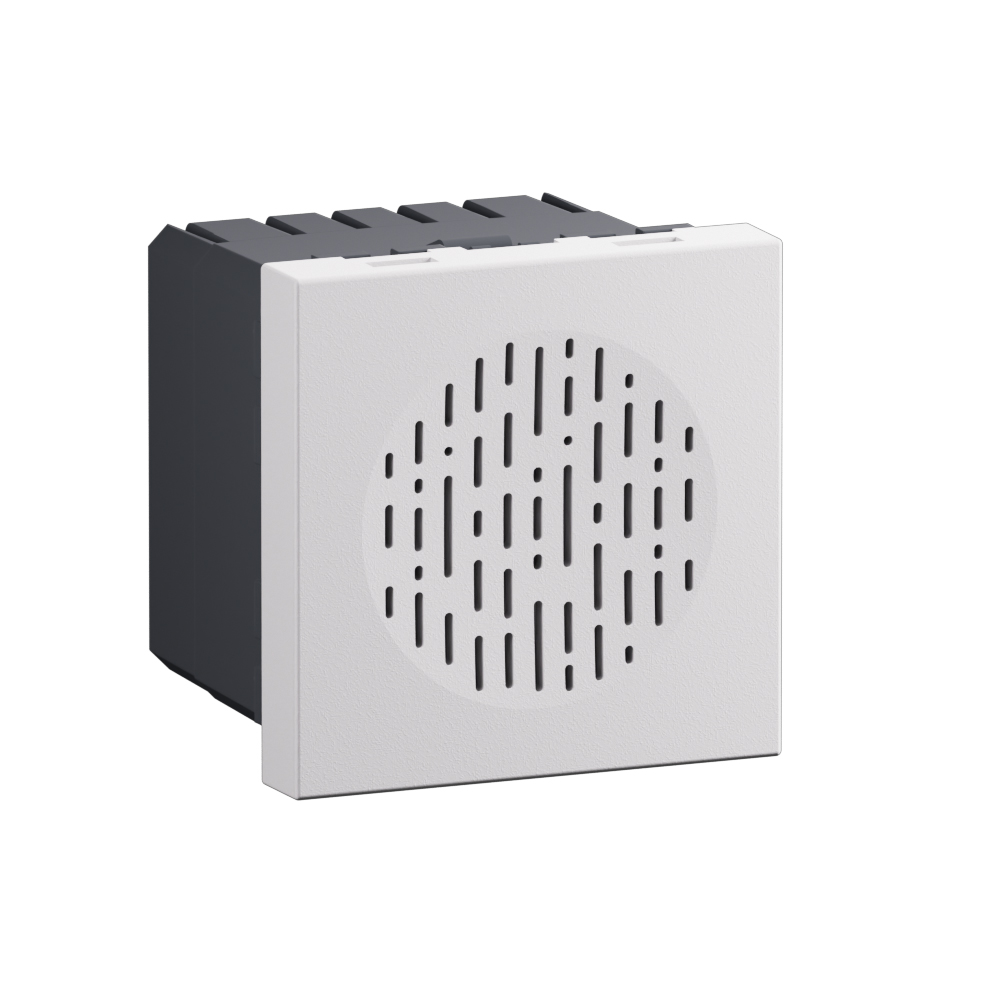

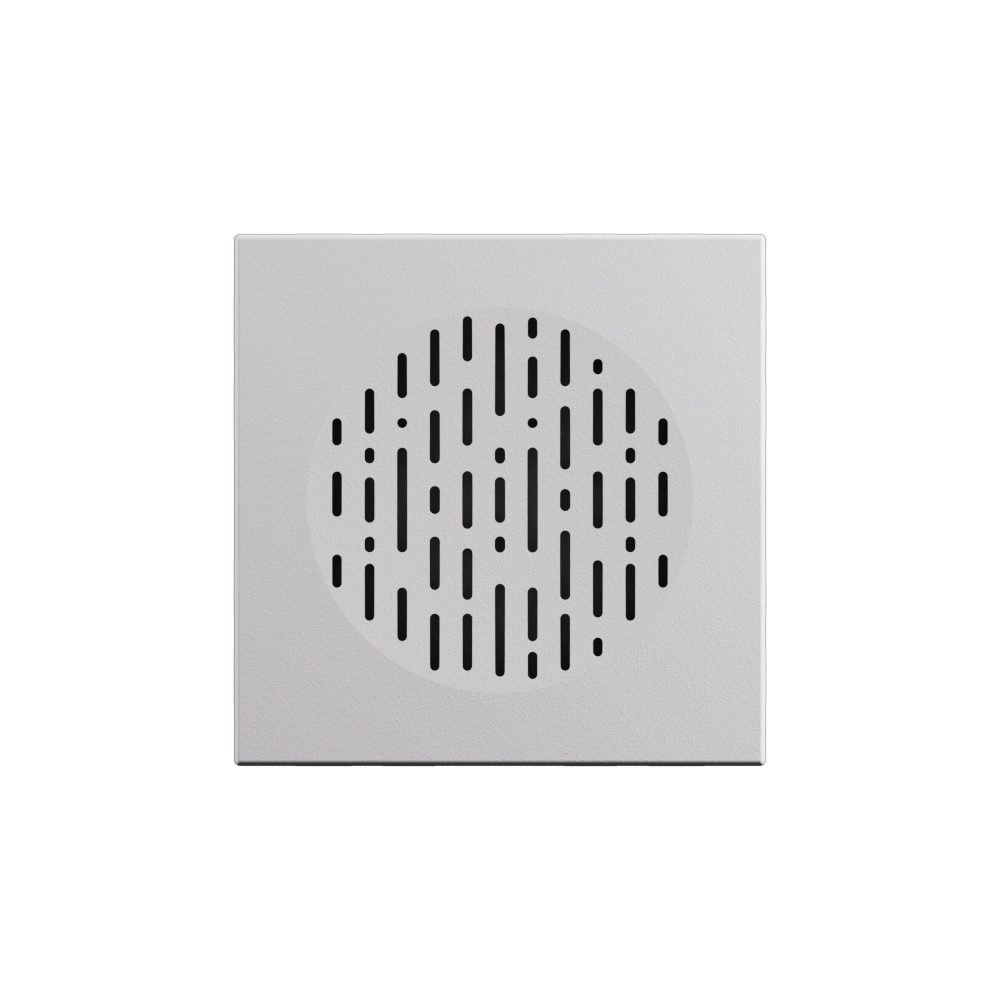

Arteor Advance - 2 modules 230V ding dong bell matt white - Flush-mounted 2M AC bell IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 2 modules 230V ding dong bell matt white - Flush-mounted 2M AC bell IP20 indoor use

REF. AC618MW EAN. 3414972767910
Allows you to create a classic ding-dong alert sound. This 2 modules 230V bell in matt white offers flush-mounted installation with screwed terminals. Its compact 45mm square format and IP20 rating make it ideal for indoor residential use.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows you to create a classic ding-dong alert sound. This 2 modules 230V bell in matt white offers flush-mounted installation with screwed terminals. Its compact 45mm square format and IP20 rating make it ideal for indoor residential use.

Product characteristics
  • Two-module 230V AC ding-dong bell mechanism for standard modular installations
  • Matt white finish with smooth, powdery aspect for a discreet, modern appearance
  • Flush-mounted 2M device (45x45x35.2mm) for integration in Arteor Advance modular systems
  • IP20 and IK02 rated plastic housing, suitable for indoor wall-mounted applications in protected environments
  • Screwed terminal connection for flexible cables, 40 to 50Hz operation, without wireless, battery, or connected features
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Powdery white with a smooth matte aspect
  • The square format enables modularity

Technical characteristics

Housing colour White
Housing material Plastic
Type of current AC
Built-in battery No
Connection type Screwed terminal
Wireless No
Degree of protection (IP) IP20
Mounting method Flush-mounted
Number of modules (module system) 2
Width in number of modular spacings 2
Width 45 mm
Height 45 mm
Depth 35.2 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 40-50 Hz
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Cable nature for connection Flexible
Contains Batteries No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
