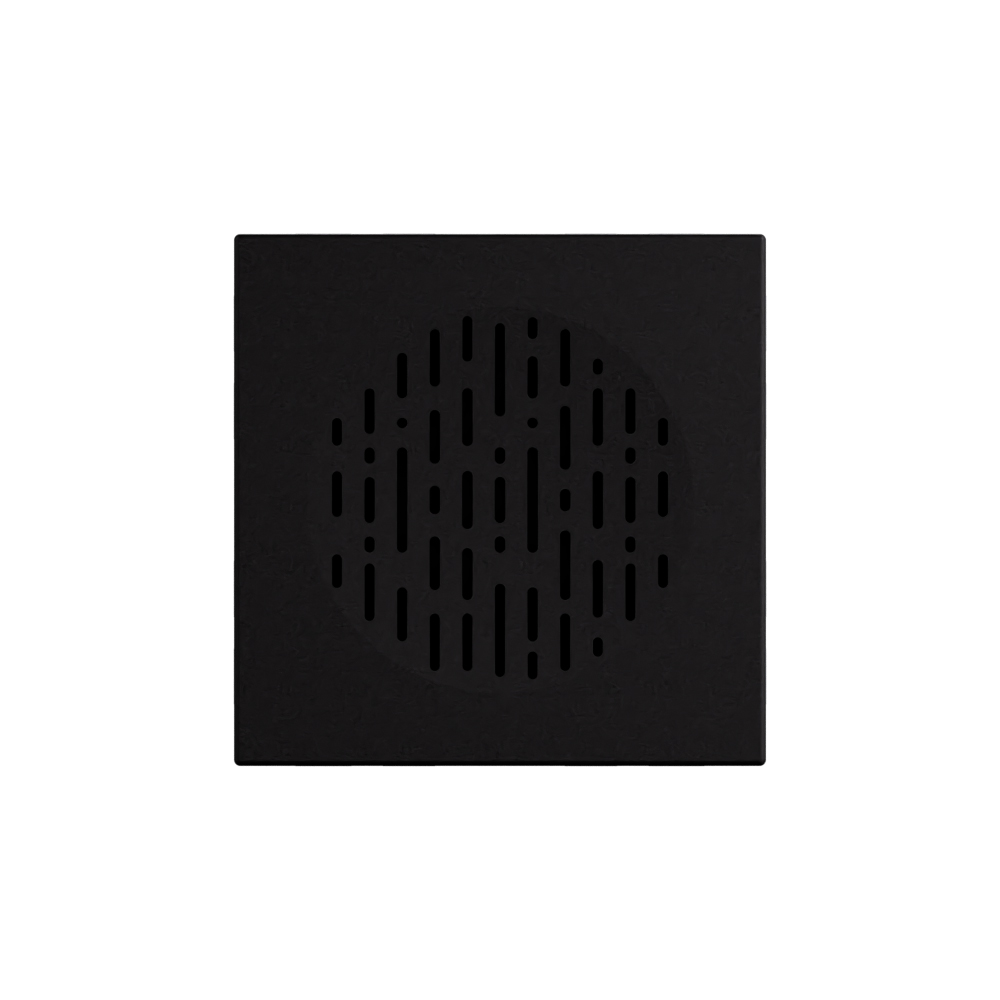

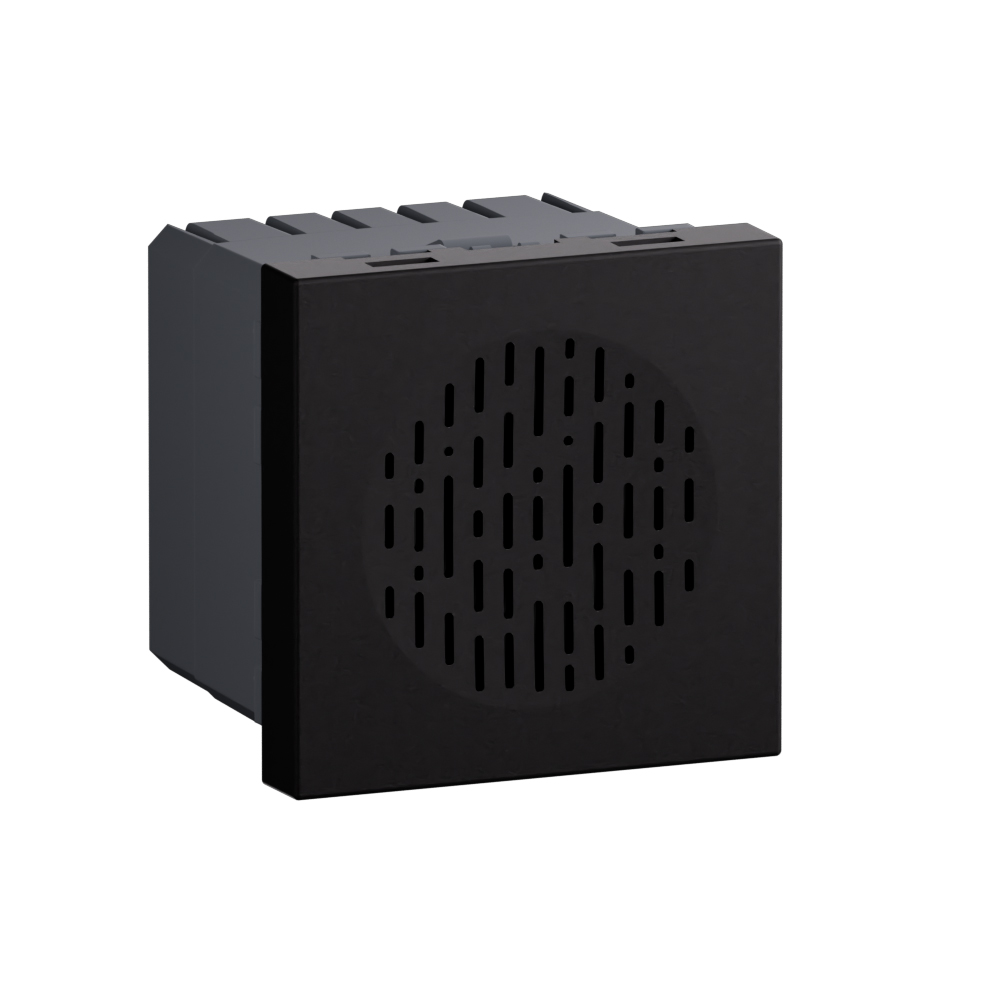

Arteor Advance - 2 modules 230V ding dong bell matt black - Flush-mounted indoor use - IP20 plastic housing - Deep matt black design

Arteor Advance Legrand

Arteor Advance - 2 modules 230V ding dong bell matt black - Flush-mounted indoor use - IP20 plastic housing - Deep matt black design

REF. AC618MB EAN. 3414972767859
Allows you to create a sound for alerts or notifications with a reliable 230V AC ding-dong tone. The 2-module, flush-mounted design with screwed terminals ensures secure integration. Its matt black finish and square 45mm format provide
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows you to create a sound for alerts or notifications with a reliable 230V AC ding-dong tone. The 2-module, flush-mounted design with screwed terminals ensures secure integration. Its matt black finish and square 45mm format provide

Product characteristics
  • Two-module 230V AC flush-mounted bell mechanism for standard modular installations
  • Deep matt black finish for a discreet, contemporary aesthetic in advanced interior designs
  • Compact 45mmx45mmx35.2mm housing in impact-resistant IK02 plastic, IP20 rated for indoor use
  • Screwed terminal connection for secure wiring with flexible cables, without built-in battery or wireless functions
  • Operating temperature range -5 to 35° C and storage range -10 to 70° C, optimized for indoor residential and commercial environments
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Deep black with a smooth matte finish
  • The square format enables modularity

Technical characteristics

Housing colour Black
Housing material Plastic
Type of current AC
Built-in battery No
Connection type Screwed terminal
Wireless No
Degree of protection (IP) IP20
Mounting method Flush-mounted
Number of modules (module system) 2
Width in number of modular spacings 2
Width 45 mm
Height 45 mm
Depth 35.2 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 40-50 Hz
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Cable nature for connection Flexible
Contains Batteries No
Connected object No
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No

Documentation

2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
