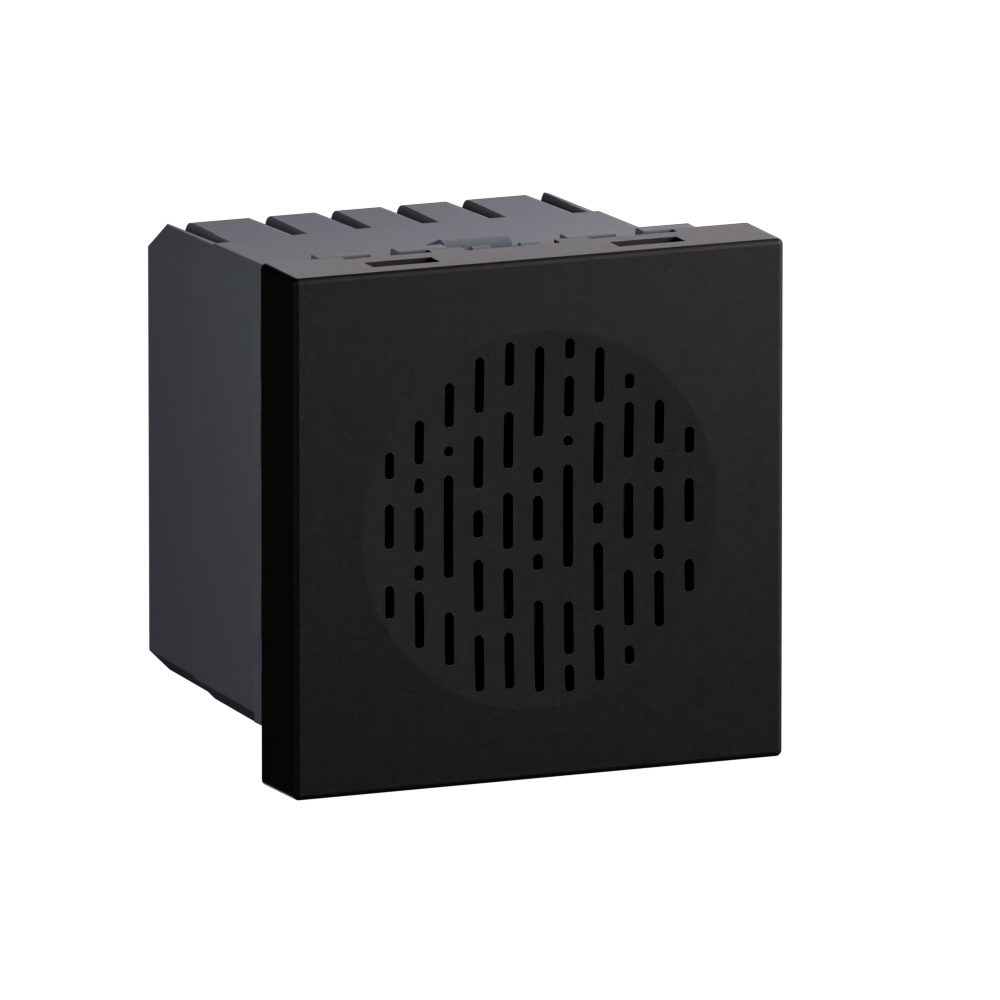

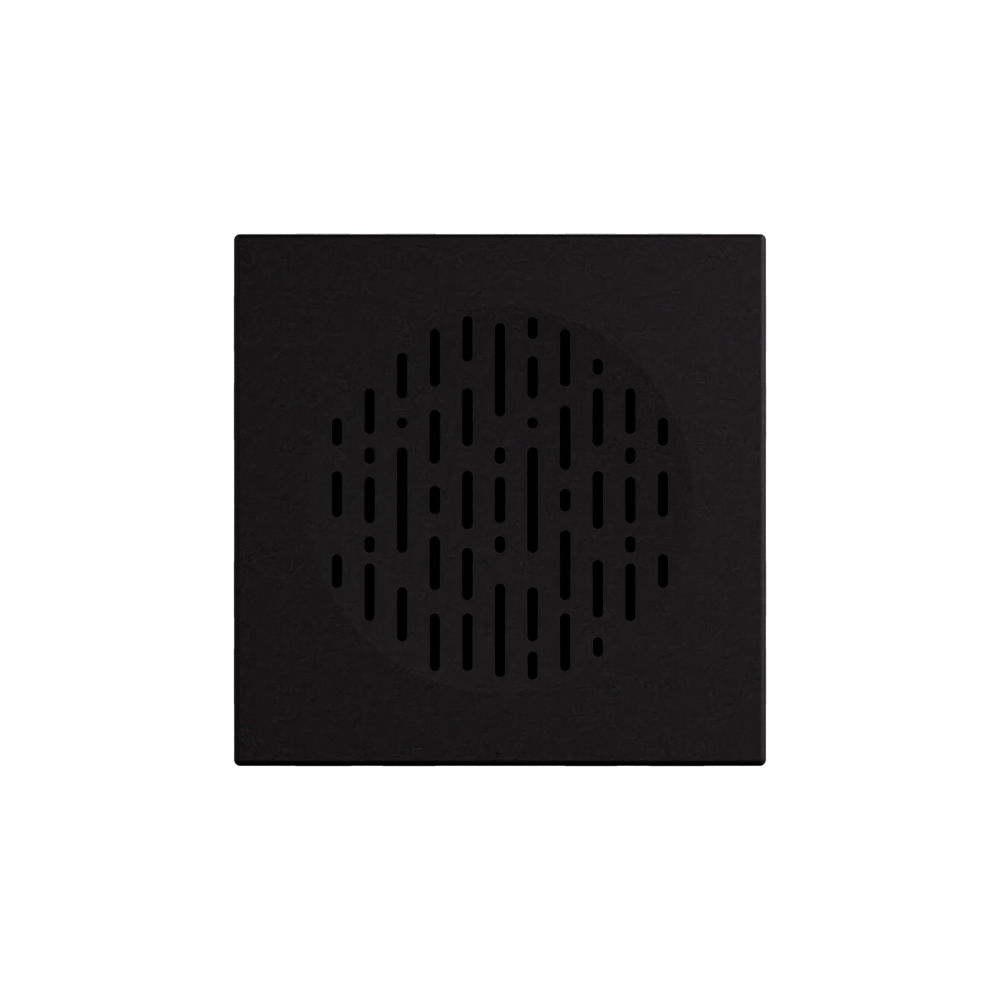

Arteor Advance - 2 modules 230V 1 melody chime matt black - 2-module flush-mounted bell - 230V chime IP40 73dB

Arteor Advance Legrand

Arteor Advance - 2 modules 230V 1 melody chime matt black - 2-module flush-mounted bell - 230V chime IP40 73dB

REF. AC617MB EAN. 3414972767811
Allows you to create a sound for alerts or notifications with a single 230V melody. The 2-module, flush-mounted design with screwed terminals ensures reliable integration. Its matt black finish and 73dB output provide effective indoor.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows you to create a sound for alerts or notifications with a single 230V melody. The 2-module, flush-mounted design with screwed terminals ensures reliable integration. Its matt black finish and 73dB output provide effective indoor.

Product characteristics
  • Two-module 230V AC flush-mounted chime for integration into modular wiring devices
  • Deep matt black housing for a discreet, contemporary aesthetic in advanced installations
  • Single-melody chime with 73dB sound level for clear audible alerts and notifications
  • IP40 and IK04 rated plastic housing, halogen free, for robust indoor residential or commercial use
  • Compact 45x45x43.5mm design with screwed terminals for 1.5mm² flexible or rigid conductors
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Avantages
  • Deep black with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Housing colour Black
Housing material Plastic
Nominal voltage (Min-Max) 230-230 V
Type of current AC
Built-in battery No
Electricity consumption (Min-Max) 15.8-15.8 A
Connection type Screwed terminal
Loudness 73 dB
Wireless No
Degree of protection (IP) IP40
Mounting method Flush-mounted
Number of modules (module system) 2
Width in number of modular spacings 2
Width 45 mm
Height 45 mm
Depth 43.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
RAL-number 9003
Halogen free Yes
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-1.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Contains Batteries No
Number of ringtones 1
Connected object No

Documentation

1 document
Technical Sheet
F04491EN-00.pdf pdf (0.57 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
