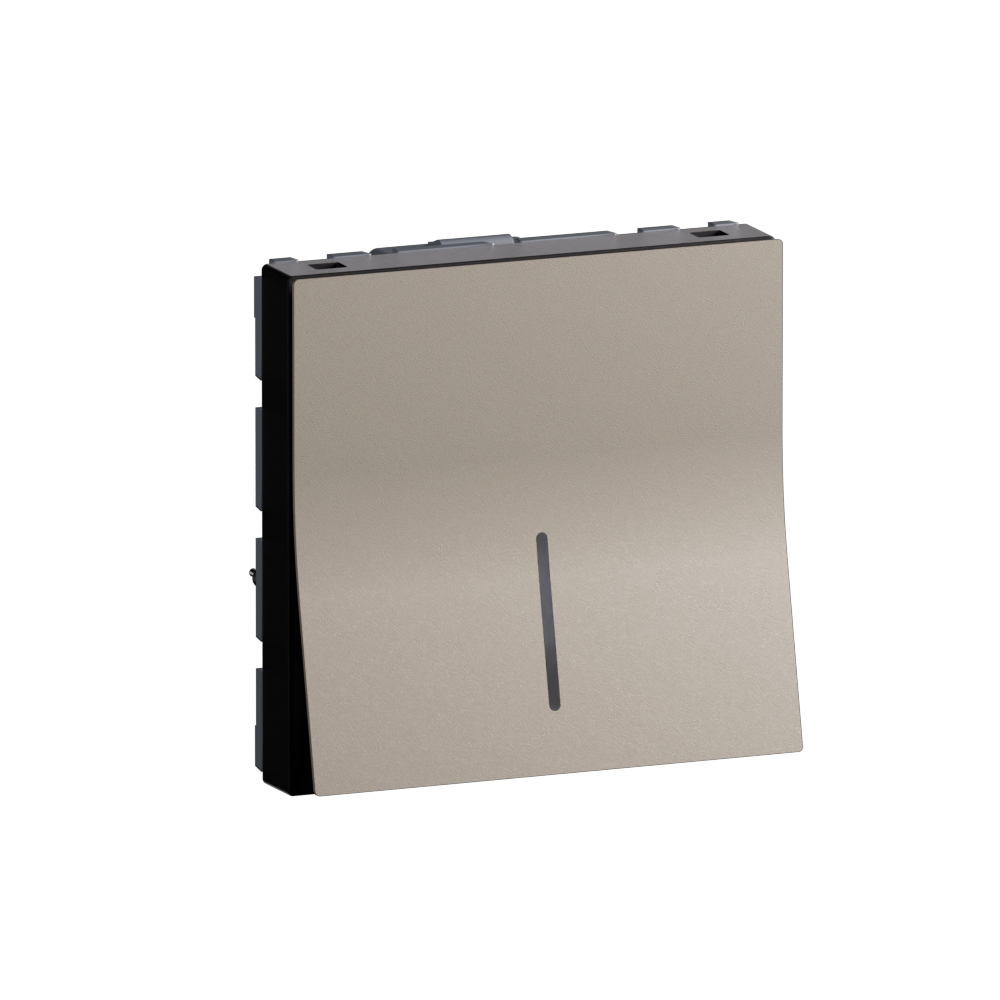

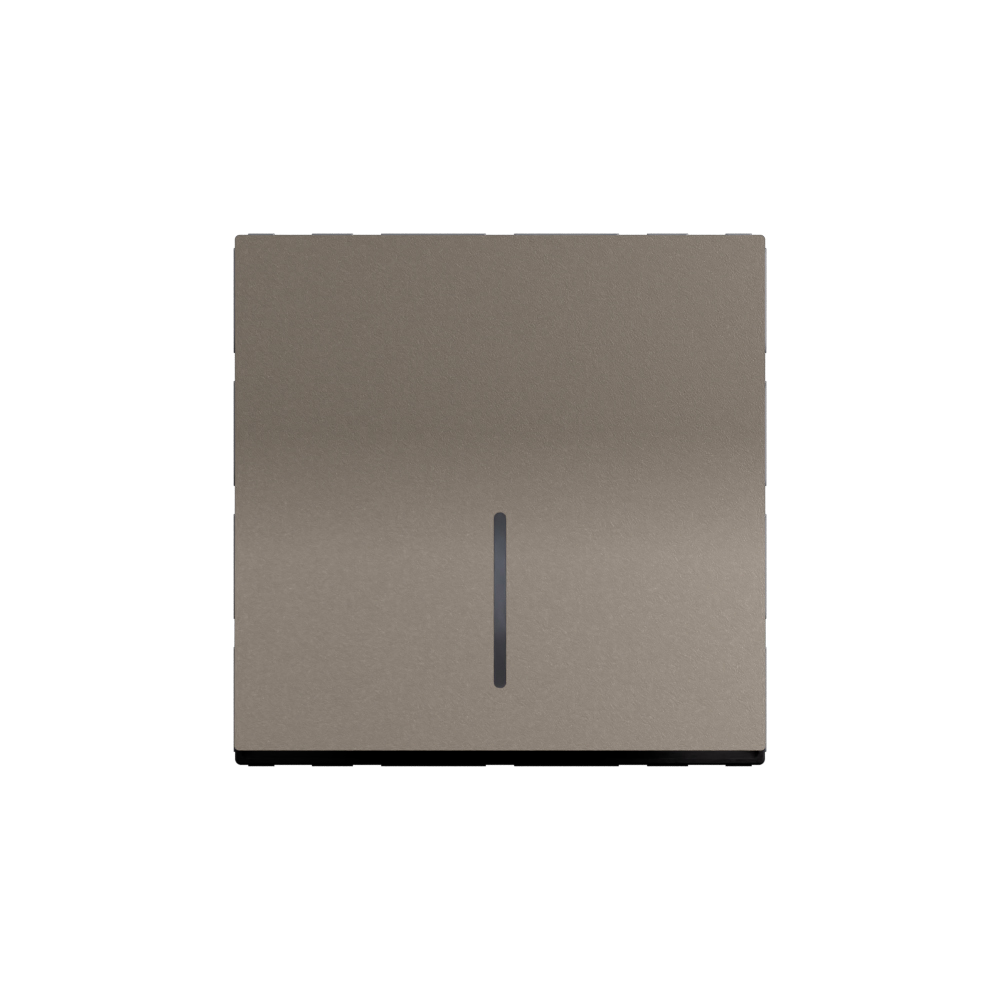

Arteor Advance - 2 modules 2 way 20AX switch with indicator champagne - 250V AC 20AX rating - Built-in LED indicator - Matt gold IP20

Arteor Advance Legrand

Arteor Advance - 2 modules 2 way 20AX switch with indicator champagne - 250V AC 20AX rating - Built-in LED indicator - Matt gold IP20

REF. AC22113CH EAN. 3414972924177
Allows control of light from two locations with a 2-module, 2-way 20AX switch. Its champagne matt thermoplastic finish and modular square format deliver elegant, flexible lighting control.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows control of light from two locations with a 2-module, 2-way 20AX switch. Its champagne matt thermoplastic finish and modular square format deliver elegant, flexible lighting control.

Product characteristics
  • Two-module, 2-way 20AX installation switch for domestic lighting control from two locations
  • Champagne (gold) matt lacquered thermoplastic finish aligned with the Arteor Advance aesthetic
  • Integrated LED indicator for clear visual status feedback in low-light environments
  • 20A 250V AC rating suitable for switching full-load inductive and resistive SBL and LED lighting circuits
  • Modular 2M rocker switch with snap-in mounting and screw terminals for secure wiring of 0.75mm² to 1.5mm² flexible or rigid conductors, IP20, IK02
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Gold
Label space/information surface No
Lighting Optional
Function lighting Illuminated (on)
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 60 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
